Fieldpilot – TeeJet FieldPilot Install Willmar 7200/50 & 7400/50 User Manual
Page 14

www.teejet.com
13
FieldPilot
®
5. install tank adaPter and hOse
The FieldPilot valve will connect the tank hose at the orbital. Disconnect the tank hose at the orbital. Install
run tee
(M)
and reconnect tank hose to the run of the tee. Then install hose
(L)
from the branch of the run
tee
(M)
to the T port of the FieldPilot valve.

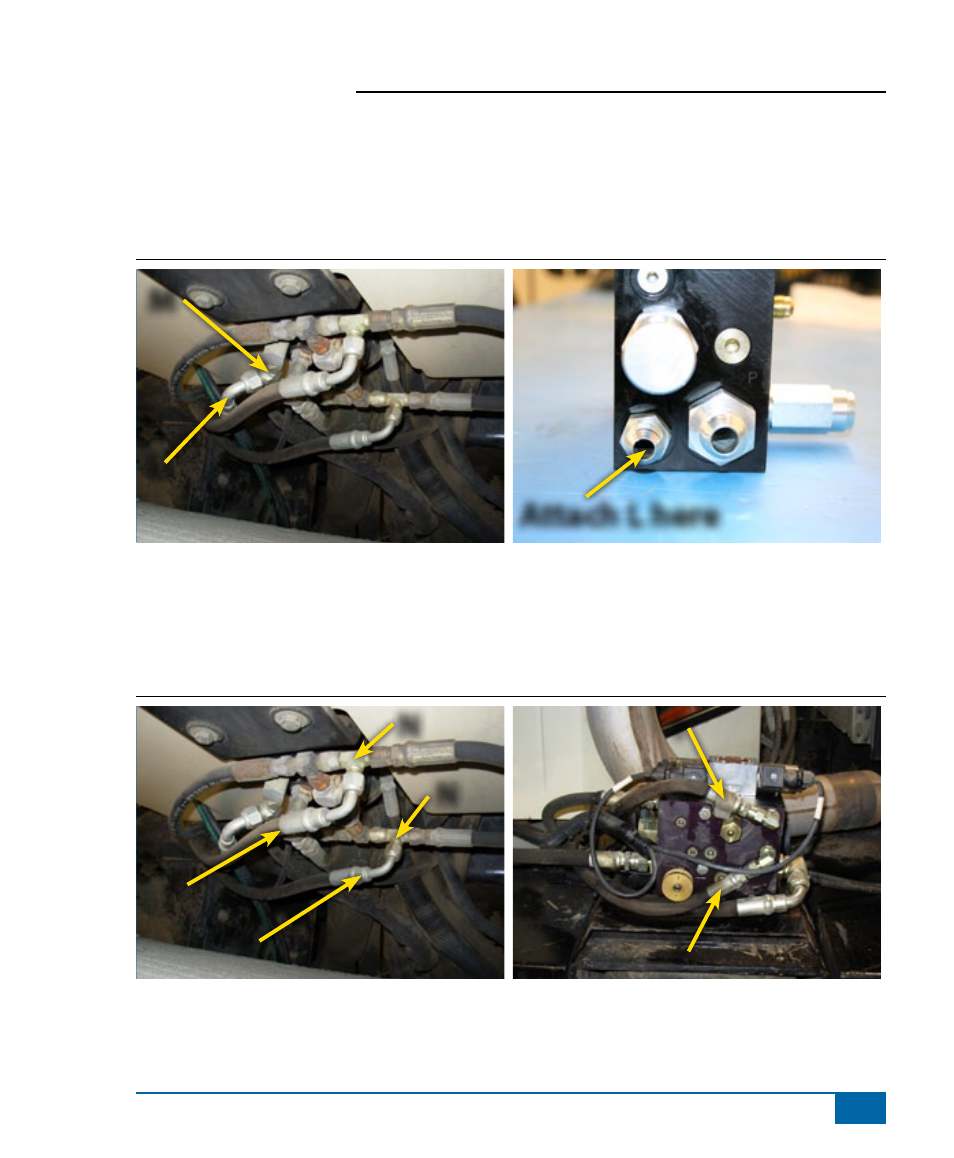

Figure 1-8: Install Tank Adapter and Hose
6. install steering adaPters and hOses
The FieldPilot valve will connect the steering hoses at the orbital. Disconnect the two steering lines at the
orbital (label the hoses first). Install run tees
(N)
and reconnect the original steer hoses. Then install hoses
(I)
from the branch of each tee to the A & B ports of the FieldPilot valve.
Figure 1-9: Install Steering Adapters and Hoses
M
N
i
i
i
i
N
l
Attach l here
