FieldPilot ®
3. MOunt the FieldPilOt ValVe
Using parts (B, F, & G) , mount the FieldPilot valve (C) to the bracket (H) . The P & T ports will face down.

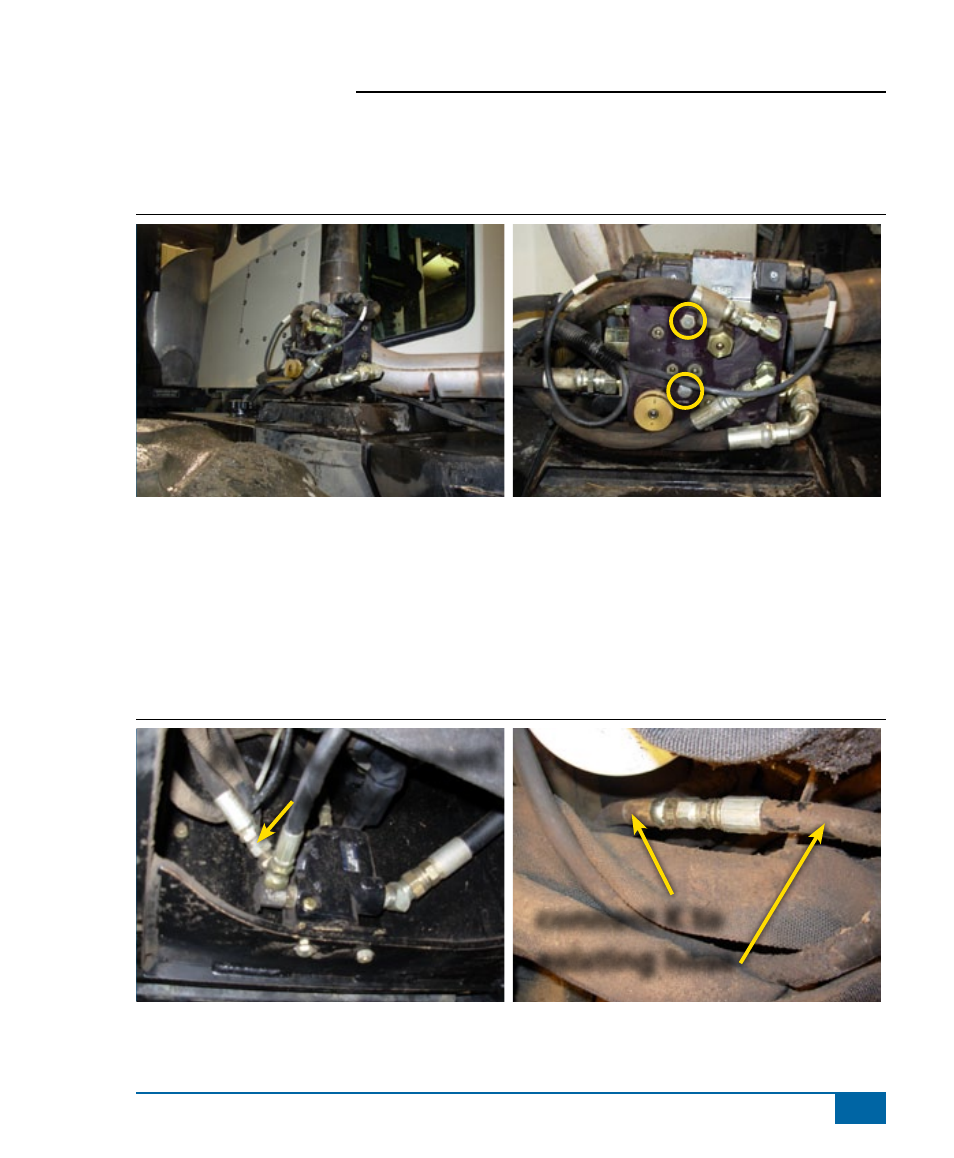

Figure 1-6: Mount the FieldPilot Valve
4. install Pressure and eF hOses
The FieldPilot valve will receive pressure from the Excess Flow port on the priority valve. The priority valve
is located inside the left frame behind the front axle. The EF port is the top port on the left side of the priority
valve. Excess Flow from the FieldPilot valve will be returned to the hose originally connected to the EF port
on the priority valve. Disconnect the hose from the EF port on the priority valve. Connect hose (K) to that
hose and route it to the EF port on the FieldPilot valve. Then install hose (J) from the EF port on the priority
valve to the P port on the FieldPilot valve.
Figure 1-7: Install Pressure and EF Hoses
eF port, disconnect
original hose
connect K to
existing hose
B, F, & G
