Kit Contents
Unpack the installation kit and identify the required parts.
Item Part Number Description Quantity
A 32-04040 Switch, Engage/Disengage ..........................................................................................1
B 350-0037 Washer, Flat,3/8” SST, 1” OD ......................................................................................2
C 350-0601 Bolt, 3/8 x 16 x 3/4 SST, H.H. ......................................................................................2
D 35-02180 Valve, FieldPilot, PWM, CC, 2.1GPM ..........................................................................1
E 45-07703 Cable, SCM to Power ..................................................................................................1
F 45-10103 Harness Steering (A&B) ..............................................................................................1
G 60-04087 Bolt, HEX 3/8-16 x 3-1/4” SST .....................................................................................2
H 60-07027 Nut, Nylock 3/8-16 SST ...............................................................................................4
I 65-05156 Bracket Hydraulic Block, Mount N2200 .......................................................................1
J 65-05157 Bracket Hammer Strap, N2200 ....................................................................................1
K 68-01071 Hose Hydraulic, 3/8” x 105” #6FJIC x #8FORF 90º .....................................................3
L 68-01072 Hose Hydraulic, 3/8” x 17” #6FJIC 90º x #8FORF .......................................................1
M 68-02019 Adapter Hydraulic, #6MJIC x #6MORB .......................................................................2
N 68-02026 Adapter Hydraulic Run Tee, #8ORF ............................................................................4
O 68-02070 Adapter Hydraulic Plug, #6 MORB ..............................................................................1
P 68-02080 Adapter Hydraulic, 90º #6MJIC x #6 MORB ................................................................2
Q 90-50013 Kit, Cable Tie, Bundle (15) ...........................................................................................2
R 91-07011 Kit, Steering Wheel, Switch .........................................................................................1
S 98-05157 FieldPilot Installation Manual Miller 22xx T, T-SS, T-ET, HT .......................................1

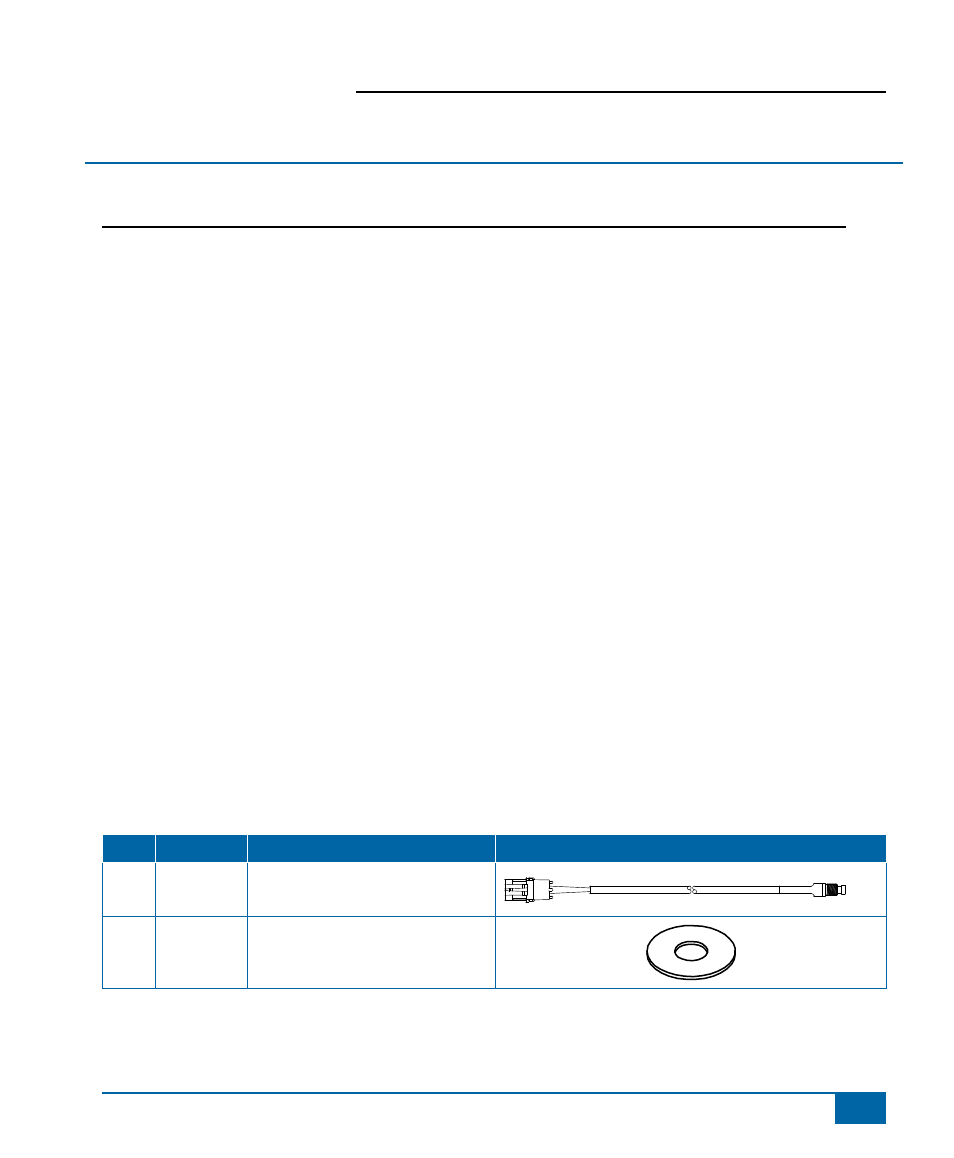

Item Part # Description Illustration
A 32-04040
Switch, Engage/Disengage,
Momentary
B 350-0037 Washer, Flat,3/8" SST, 1" OD
