4. install the steerinG hoses and adaPters
Locate the steering hose connections at the machine steering orbital. Disconnect the two steering hoses (make
sure to label them first) and install run tees (N) . Reconnect original hoses to the run of the tees. Then connect
hoses (K) from the branch of the run tees to the A & B ports of the FieldPilot valve. The hoses will route down
from FieldPilot valve and underneath the cab to the branch of the run tees at steering orbital.

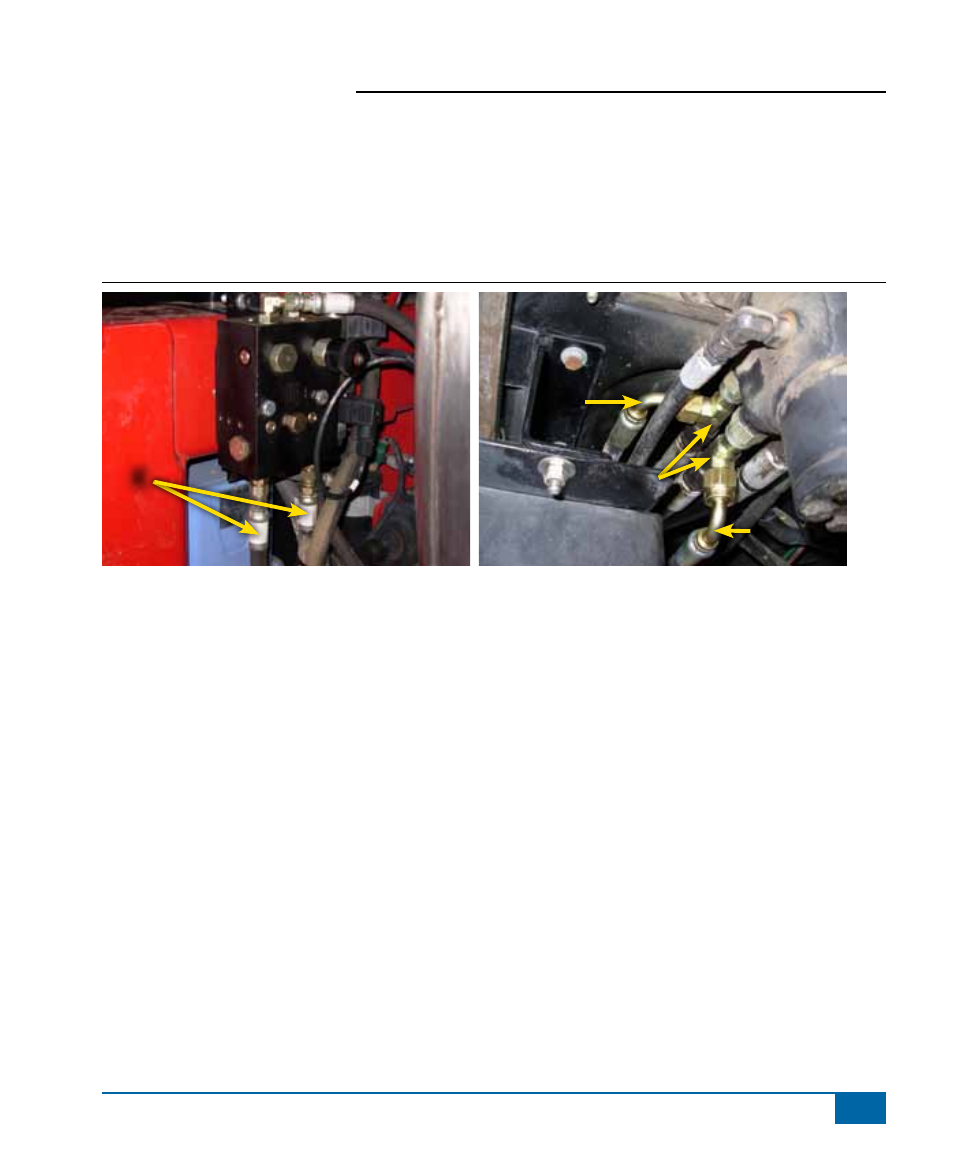

Figure 1-7: Install the Steering Hoses and Adapters
K
n
K
K
