7. install the ValVe control caBle
The valve control cable (F) will connect from the coils on the FieldPilot valve and will route into the rear of the
cab.

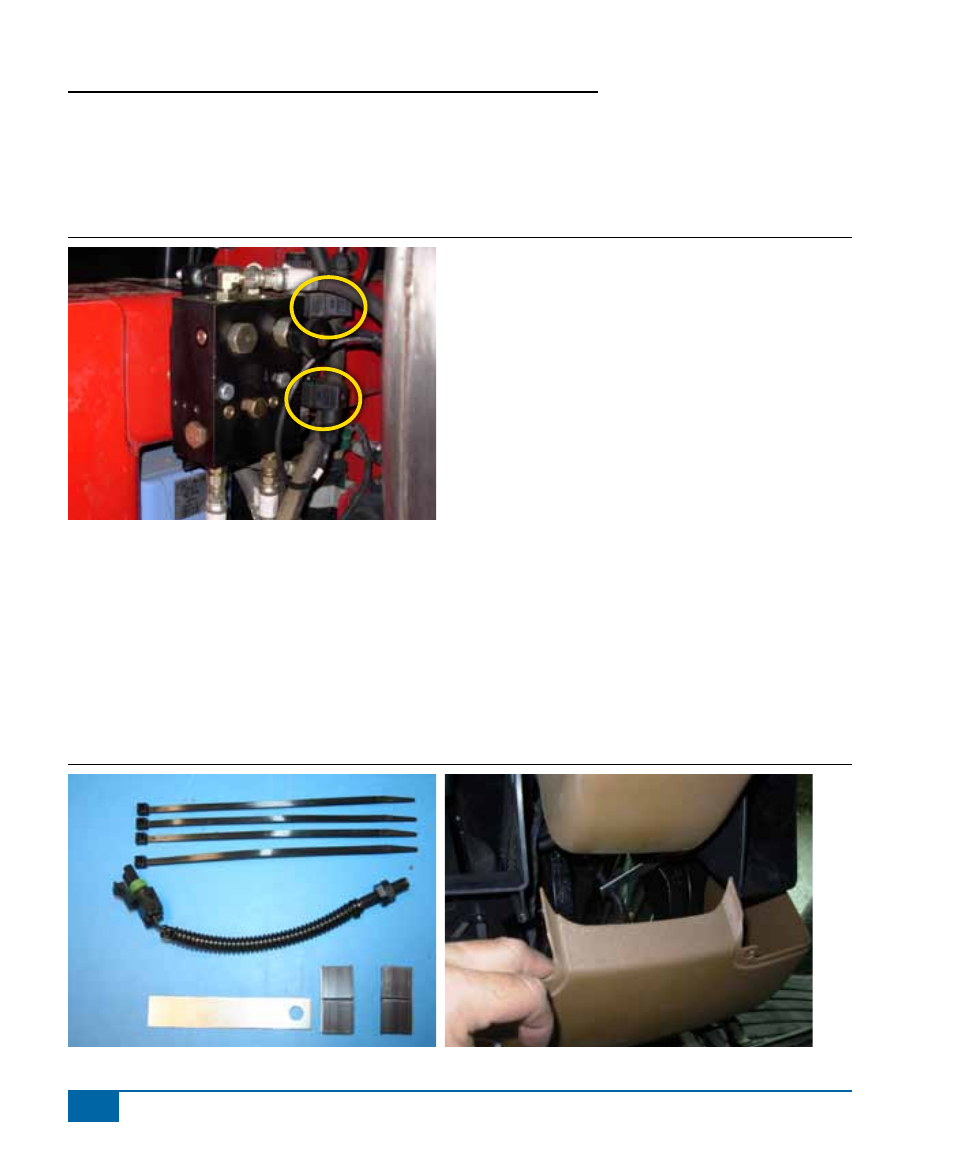

Figure 1-10: Install the Valve Control Cable
8. install steerinG disenGaGe switch (kit 91-07011)
The steering disengage sensor (R) will mount near the bottom of the steering shaft. Check clearance of the
clutch pedal before installing. Mount 3 or 4 magnets to the steering shaft. It may be best to cut the magnets in
half. Bend the aluminum mounting bracket as illustrated, and mount the disengage sensor as shown. Set the
clearance between the sensor and magnets to 1/8” and rotate the steering wheel in both directions to be sure that
the sensor does not contact the magnets or the shaft. Connect the sensor to the Steering Control Module Cable
labeled ‘Steering Wheel Sense’ and secure the cables in position so that they cannot interfere with the rotation of
the steering shaft.
Figure 1-11: Install Steering Disengage Switch (Kit 91-07011)
