9
FieldPilot ®
98-05232 R0
1. PrePare the FieldPilot ValVe
Install adapters (P) in the P & T ports. Install adapters (M) in the A & B ports. Finally, install adapter (O) in the
LS port.

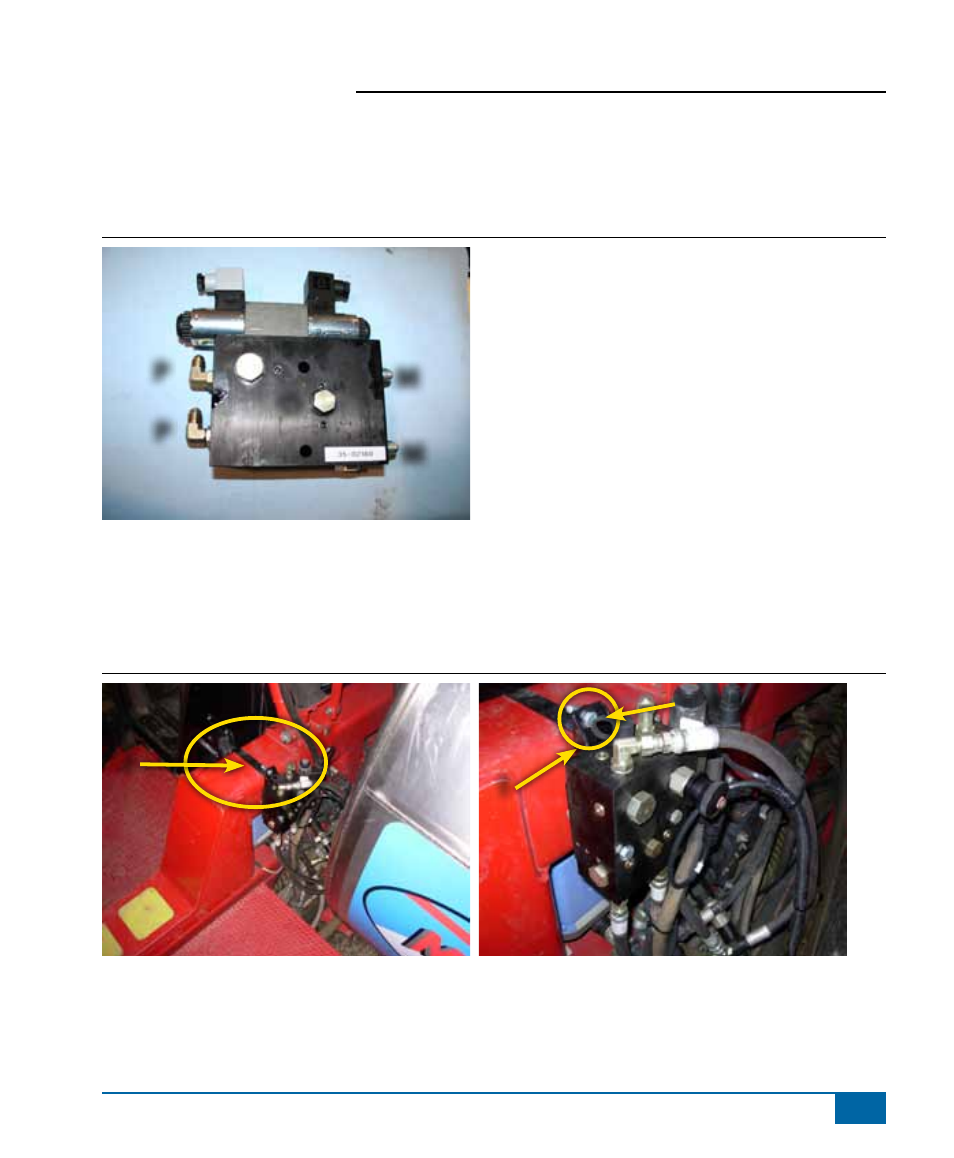

Figure 1-4: Prepare the FieldPilot Valve
p
M
p
M
o
2. install the FieldPilot ValVe Bracket
Identify valve mounting location. Wrap strap (J) around main cross over beam so that mounting holes are facing
the tank. Next attach bracket (I) , so that mounting holes for the FieldPilot valve are facing the tank, to bracket (J)
using (2) (C) 3/8” x 16 x ¾” bolts and (2) (H) 3/8 nuts as depicted.
Figure 1-5: Install Mounting Bracket for FieldPilot Valve
J
i
C & H
