FieldPilot ®
Kit Contents
Unpack the installation kit and identify the required parts.
Item Part Number Description Quantity
A 32-04040 Switch, Engage/Disengage ..........................................................................................1
B 350-0037 Washer, Flat - 3/8” SST ...............................................................................................4
C 35-02180 Valve, FieldPilot 2.1GPM, CC, LS, PWM .....................................................................1
D 45-07703 Harness, SCM .............................................................................................................1
E 45-10103 Harness, Valve .............................................................................................................1
F 60-04087 Bolt, Hex- 3/8-16 x 3-1/4” SST .....................................................................................2
G 60-04095 Bolt, Hex- 3/8-16 x 1-1/2” SST .....................................................................................2
H 60-04099 Set Screw, 10/24 X 3/8”, Cup Point Allen ....................................................................1
I 60-07027 Nut, NyLock 3/8-16, SST .............................................................................................4
J 65-05184 Bracket, Hyd. Block Mount - John Deere 8x20, 8x30 ..................................................1
K 68-01165 Hose, Hyd. - 3/8” x 83”, #8FORF x #6FJIC 90º ...........................................................2
L 68-01226 Hose, Hyd. - 3/8” x 21”, #6FJIC x #6FJIC ....................................................................3
M 68-02019 Adapter, Hyd. - #6MJIC x #6MORB .............................................................................2
N 68-02026 Adapter, Hyd. Run Tee - #8 ORF .................................................................................2
O 68-02078 Adapter, Hyd. 90º - #6MJIC x #6FJIC ..........................................................................3
P 68-02080 Adapter, Hyd. 90º - #6MJIC x #6MORB .......................................................................3
Q 68-02084 Adapter, Hyd. - #6MJIC x M14x1.5 MORB ..................................................................3
R 68-02120 John Deere Shuttle Disc ..............................................................................................1
S 68-02161 Adapter, John Deere Shuttle Spacer Long (RE213458) ..............................................1
T 90-50013 Cable Tie Kit, 15 ..........................................................................................................1
U 91-07011 Steering Wheel Switch Kit ...........................................................................................1
V 98-05145 Installation Manual, John Deere 8x20 Series ..............................................................1

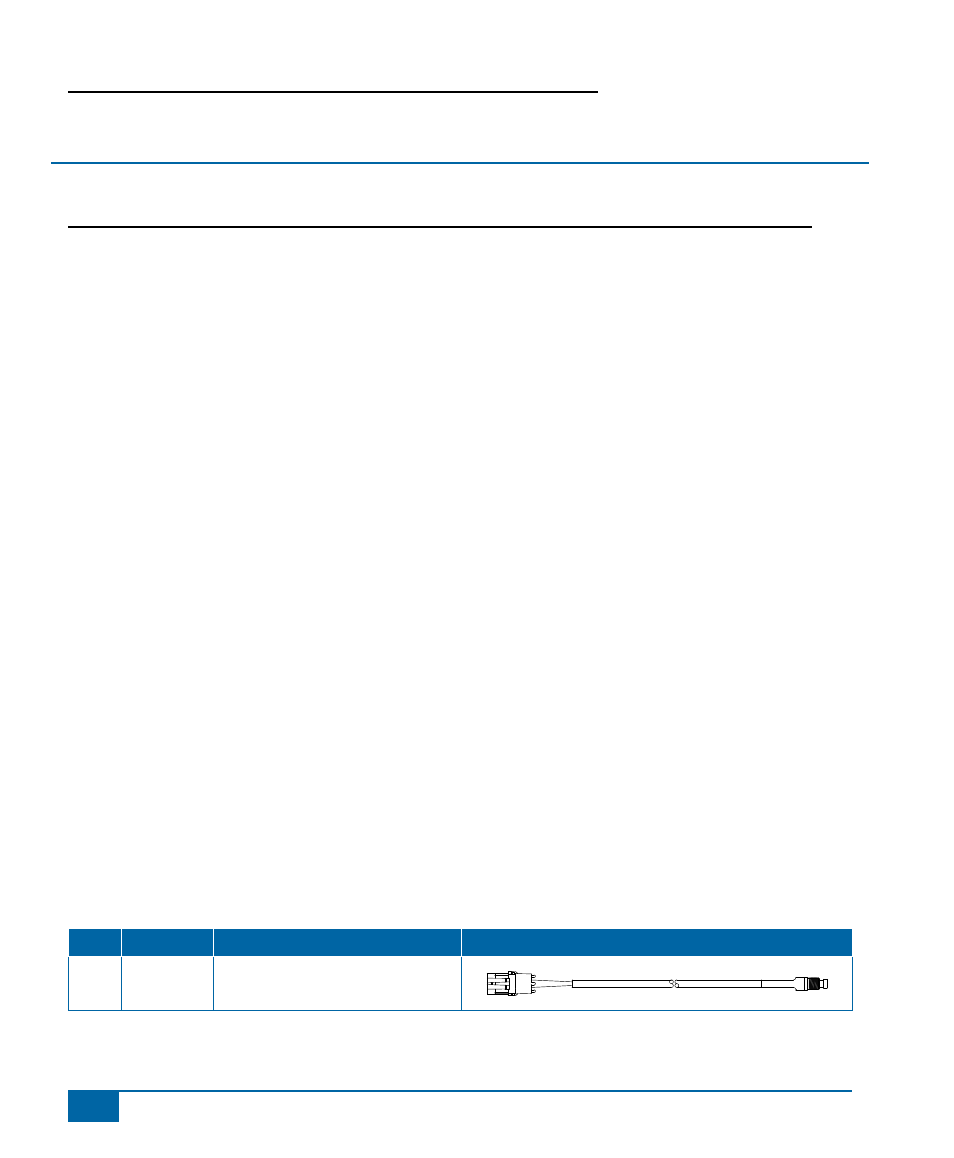

Item Part # Description Illustration
A 32-04040
Switch, Engage/Disengage,
Momentary
