FieldPilot ®
11. installation oF engage/disengage switch
Connect item (A) to the connector on the SCM harness labeled Remote Engage/Disengage. Install the push
button in a location that is easily accessible during operation of the machine. This switch (A) is not required if the
optional foot switch 32-04020 is used.

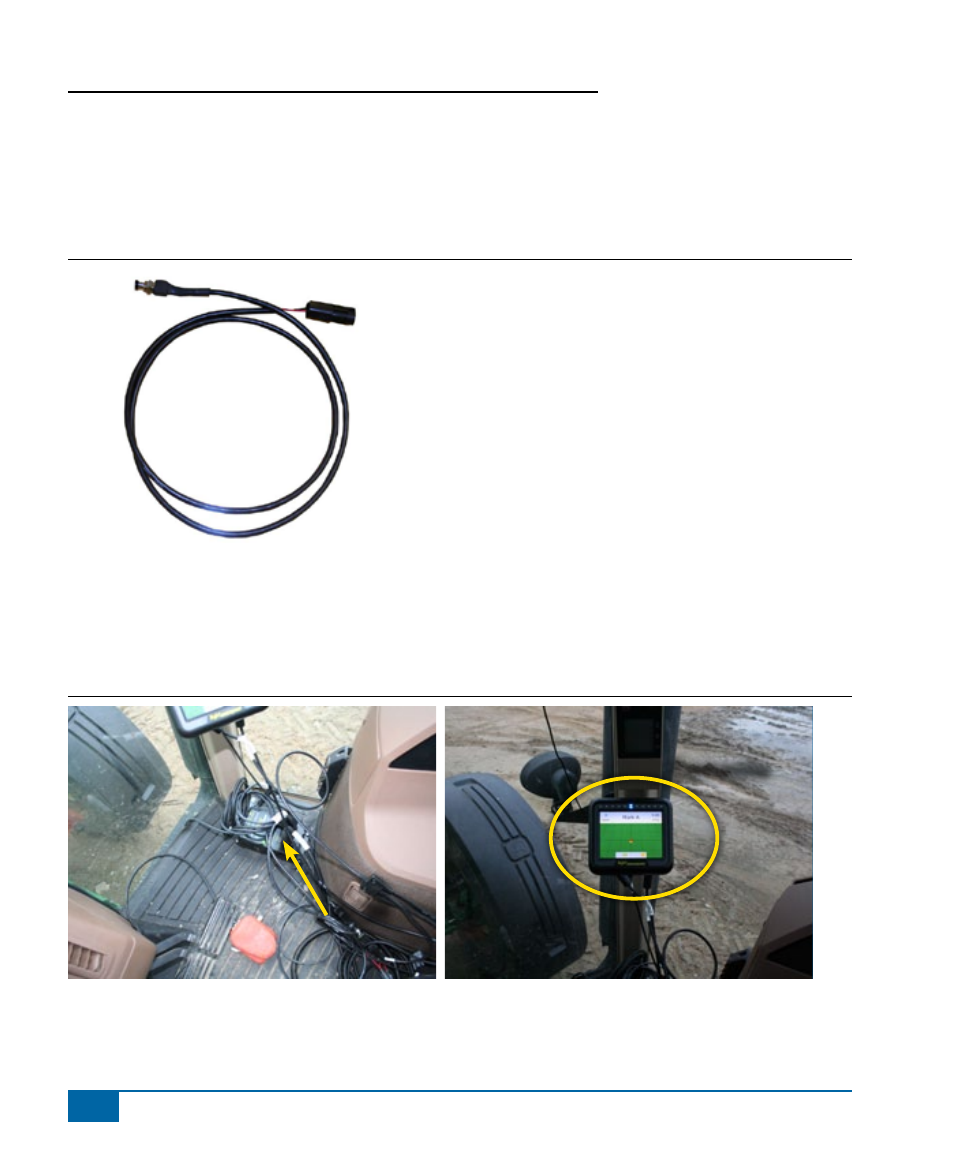

Figure 1-16: Engage/Disengage Switch
12. recoMMended electronics installation
The Steering Control Module (SCM) should be mounted securely to the floor of the cab. The control console can
be mounted to the operator’s preference. The GPS antenna should be mounted as far forward as possible on top
of the cab on a metal surface of at least 4” square.
Figure 1-17: Recommended Electronics Installation
sCM
Console
