www.teejet.com

6

FieldPilot

®

2. INSTALL ANGLE SENSOR INTERFACE (ILS ONLy)

Tractors with ILS will use a steering angle sensor instead of the steering flowmeter. There will be a connector

for the sensor on the left side of the machine along the frame just in front of the cab. Disconnect at that

location and install interface

(M)

in the connector going towards the cab. Then install the corresponding dust

cap from kit

(P)

in the other connector. The R-Series connector differs from the 8x10/20/30 connector.

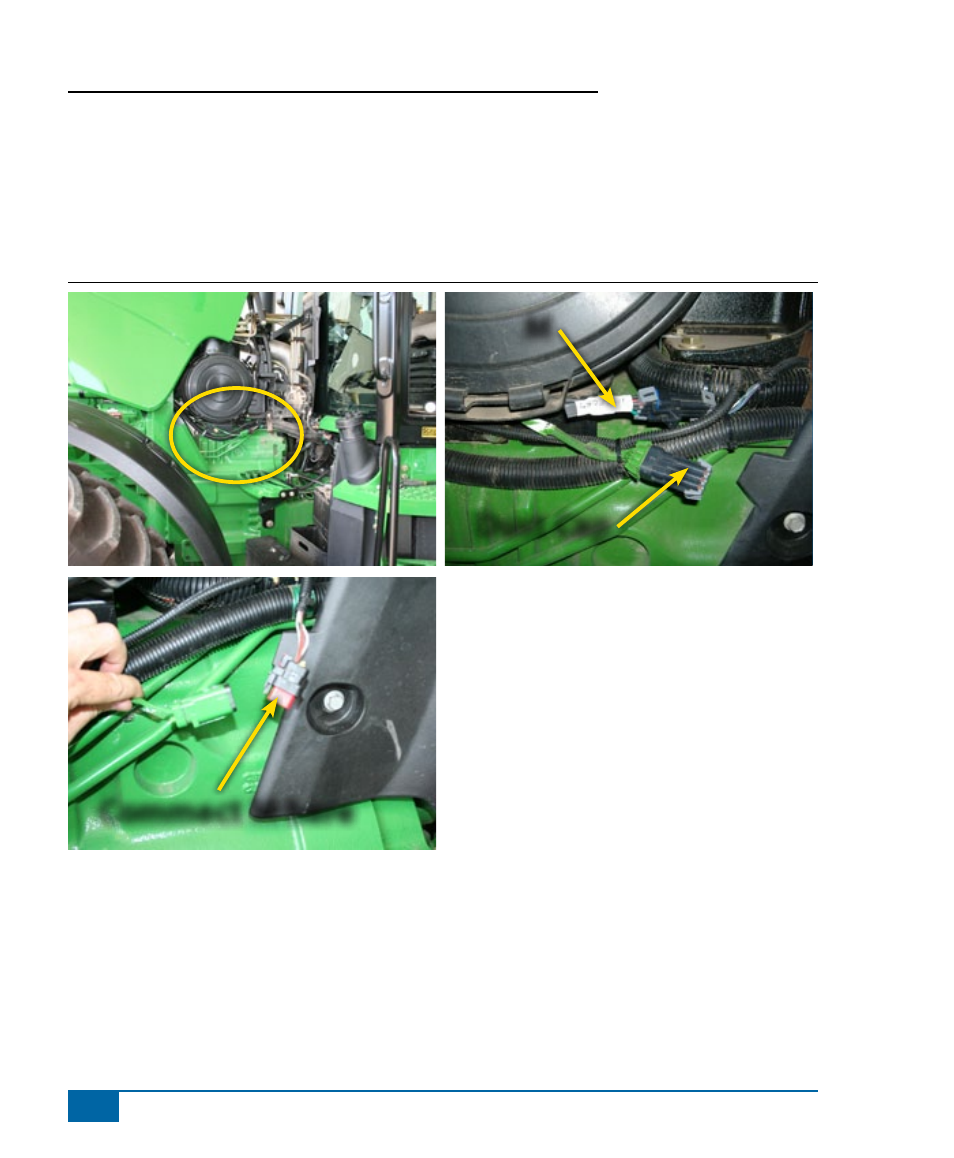

Figure 1-4: Install Angle Sensor Interface

M

dust Cap

Commect M here
