7. install steer hOses and adaPters
Disconnect the left and right steer hoses at the orbital and install run tees (S) . (Be sure to label the steer
hoses before disconnecting them.) Reconnect the original steer hoses the run of the tees. Then connect
hoses (M) from the branch of the run tees to the A & B ports of the FieldPilot valve.

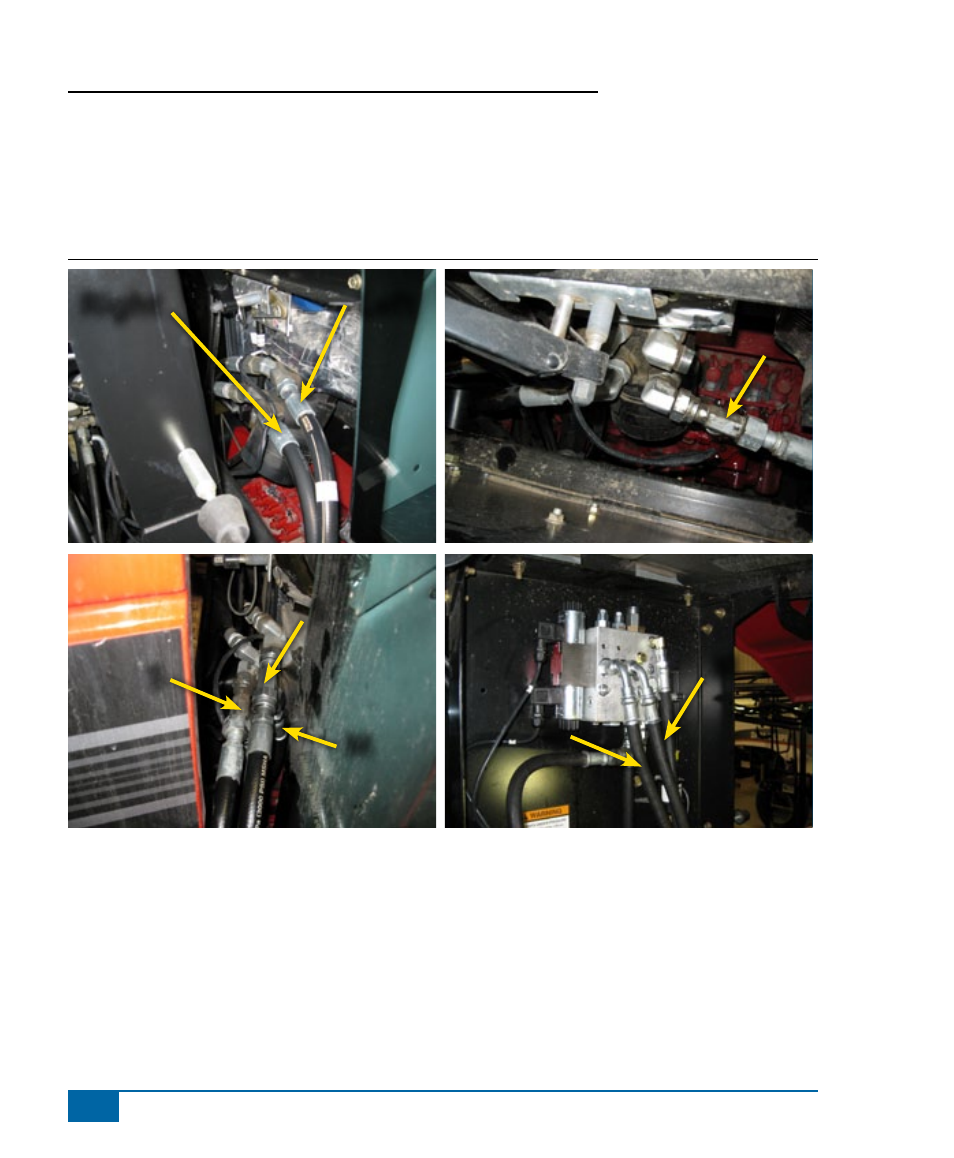

Figure 1-10: Install Steer Hoses and Adapters
right left
s
s
M
s
M
M
