FieldPilot ®
4. install the shuttle tee
Install adapters (R & T) in the Shuttle tee (P) as shown. Disconnect the existing LS hose from the Priority
Valve and connect it to the prepared shuttle tee. Connect hose (L) from the shuttle tee to the open port
where the original LS hose connected. Then install hose (K) from the shuttle tee to the LS port of the
FieldPilot valve.

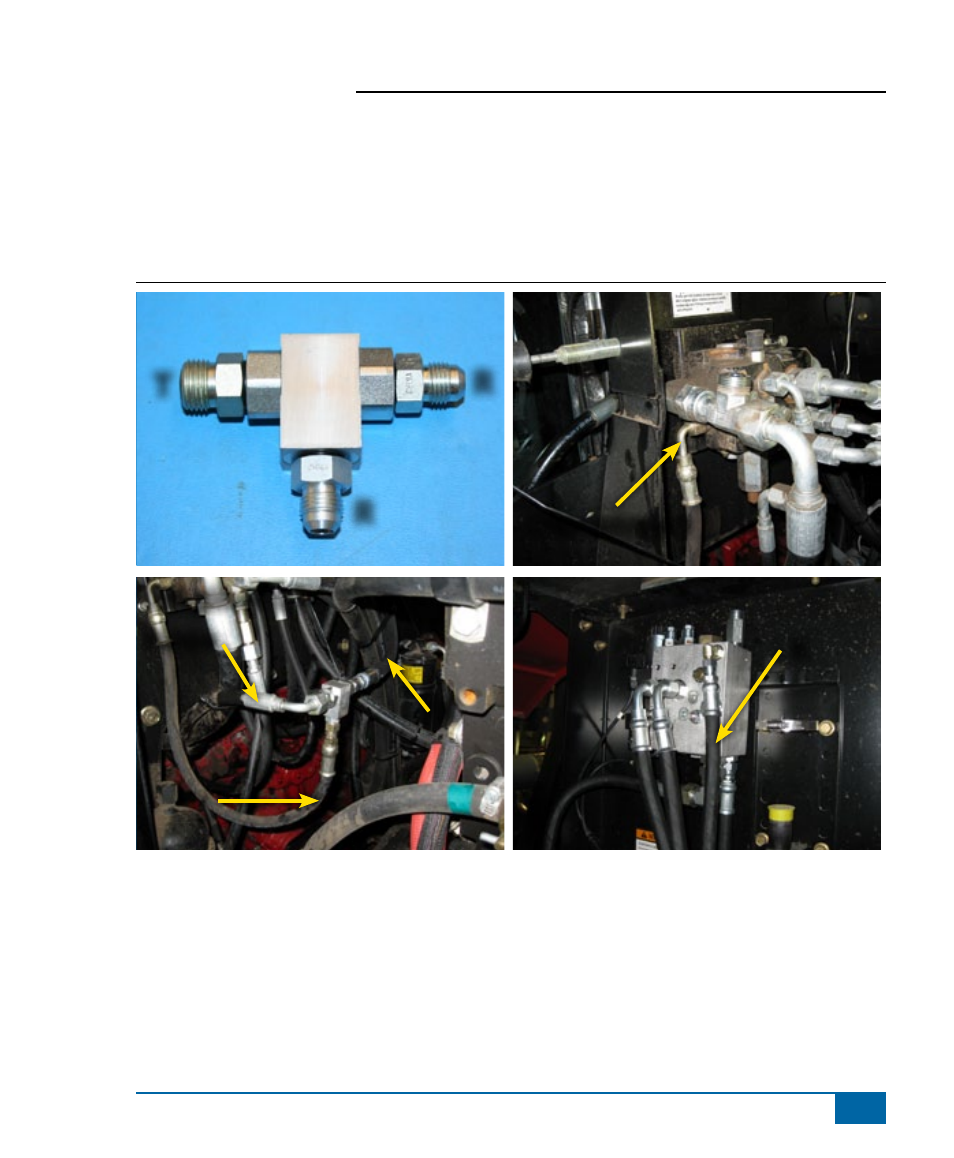

Figure 1-7: Install the Shuttle Tee and Adapters
r
disconnect
original ls
Hose
r
l
K
K
t
