www.teejet.com
14
FieldPilot ®
o
9. install the ValVe control caBle
Route the valve cable (E) from the valve, underneath the cab, and into the cab through the cable grommet in
the back right of the cab. The cable can be routed into the cab through a grommet in the right side floor of the
cab directly to the right of the operator’s seat. Remove the black floor console cover to access the grommet
from inside the cab.
Be sure the cable is routed securely and is free from entanglement. Use the provided tie-straps as necessary.

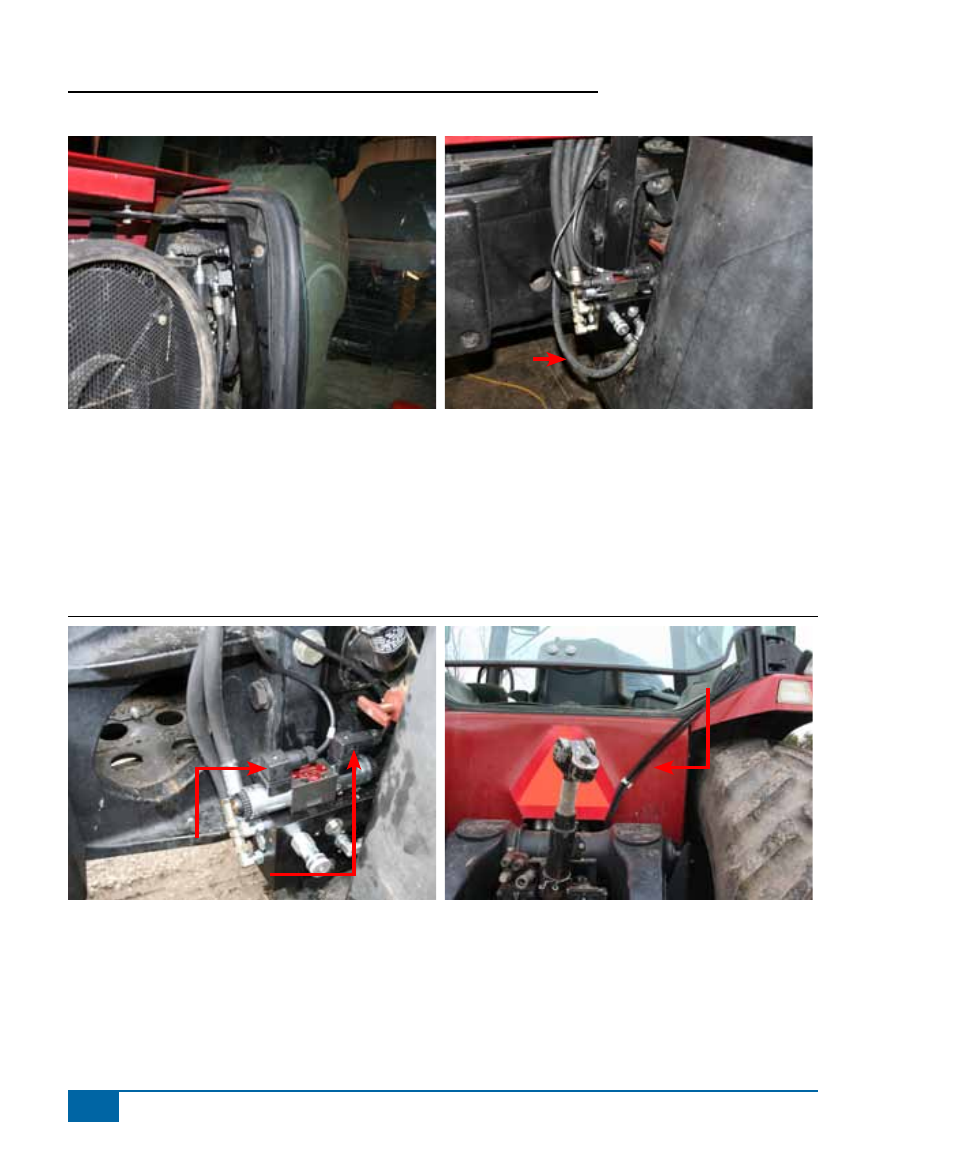

Figure 1-10: Install the Valve Control Cable
Cable
Cable Routing
