FieldPilot

4. install stc adaPter hoses & union stc tees

Locate the tractor steering orbital in front of the cab just below the windshield. The two lines on the left side

are the right and left turn output lines. The two lines on the right side are the tank and pressure lines. The

orbital will be stamped with L, R, P, and T accordingly. Label all four hoses before disconnecting. Using the

#8 STC Removal Tool, disconnect all four lines from the orbital. Install hoses

(M)

into the P & T ports and

hoses

(L)

into the L & R ports on the orbital. Next attach a

(S)

STC Union Tee to each of the adapter hoses

and then connect the original orbital hoses to the run of the corresponding tees.

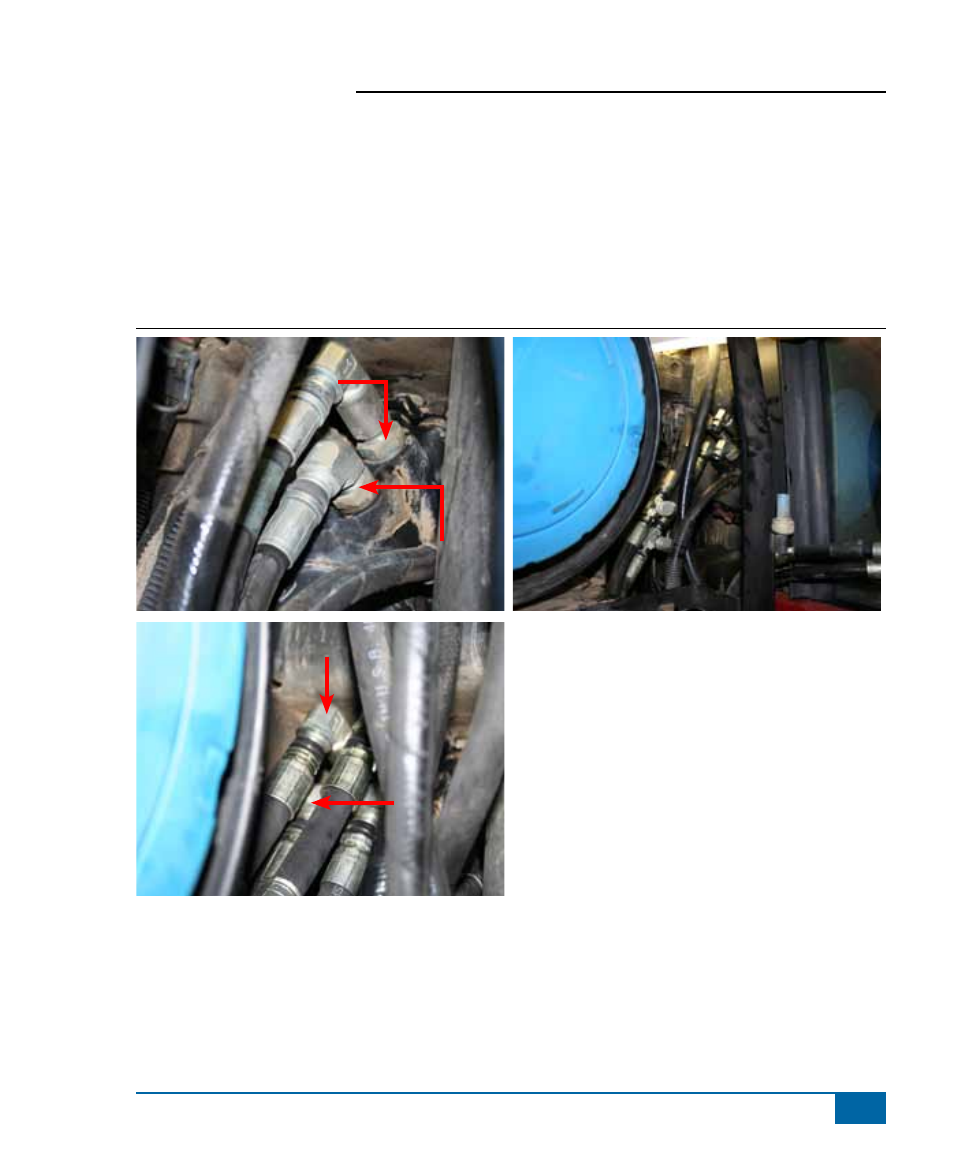

Figure 1-5: Install STC Adapter Hoses and Union STC Tees

R Port

l Port

t Port

P Port

NOTE: Before disconnecting the STC hoses at the orbital, spray them with WD40. DO NOT FORCE THE

REMOVAL TOOL INTO THE FITTINGS.
