Page 14: Original ls line o n
www.teejet.com
13
FieldPilot
®

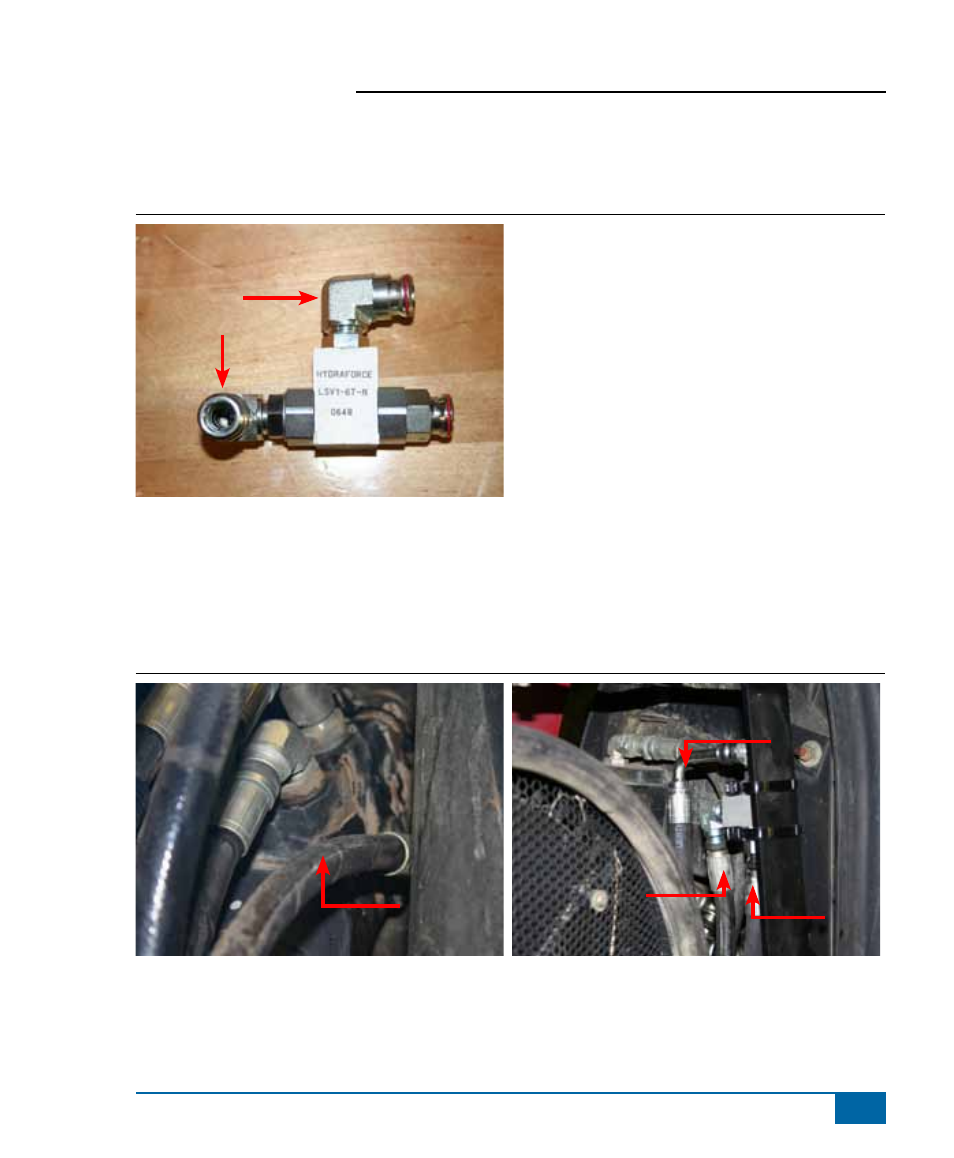

7. Pre-asseMBle the shuttle tee
Pre-assemble the load sense shuttle tee
(P)
with fittings
(Q)
and
(T)
.
Figure 1-8: Pre-Assemble the Shuttle Tee
Q
t
P
8. install load sense hoses and shuttle tee
The load sense line on the orbital is the small line on the left side of the orbital. Using the #6 STC Removal
Tool disconnect the hose from the orbital. Attach this hose to the shuttle tee as pictured. Install hose
(N)
between the orbital LS port and the shuttle tee. Install hose
(O)
from the shuttle tee to the FieldPilot valve
as indicated in the pictures.
Figure 1-9: Install Load Sense Hoses and Shuttle Tee
original
ls line
original
ls line
o
N
