www.teejet.com
10
FieldPilot ®
2. install Mounting Bracket
The FieldPilot valve block will be mounted to the tractor frame on the left side, below the cab, and beside
the fuel tank. Locate and remove the lower of the two bolts securing the step mounting bracket to the tractor
frame. Using that bolt, secure the hydraulic mount bracket (H) to the tractor frame.

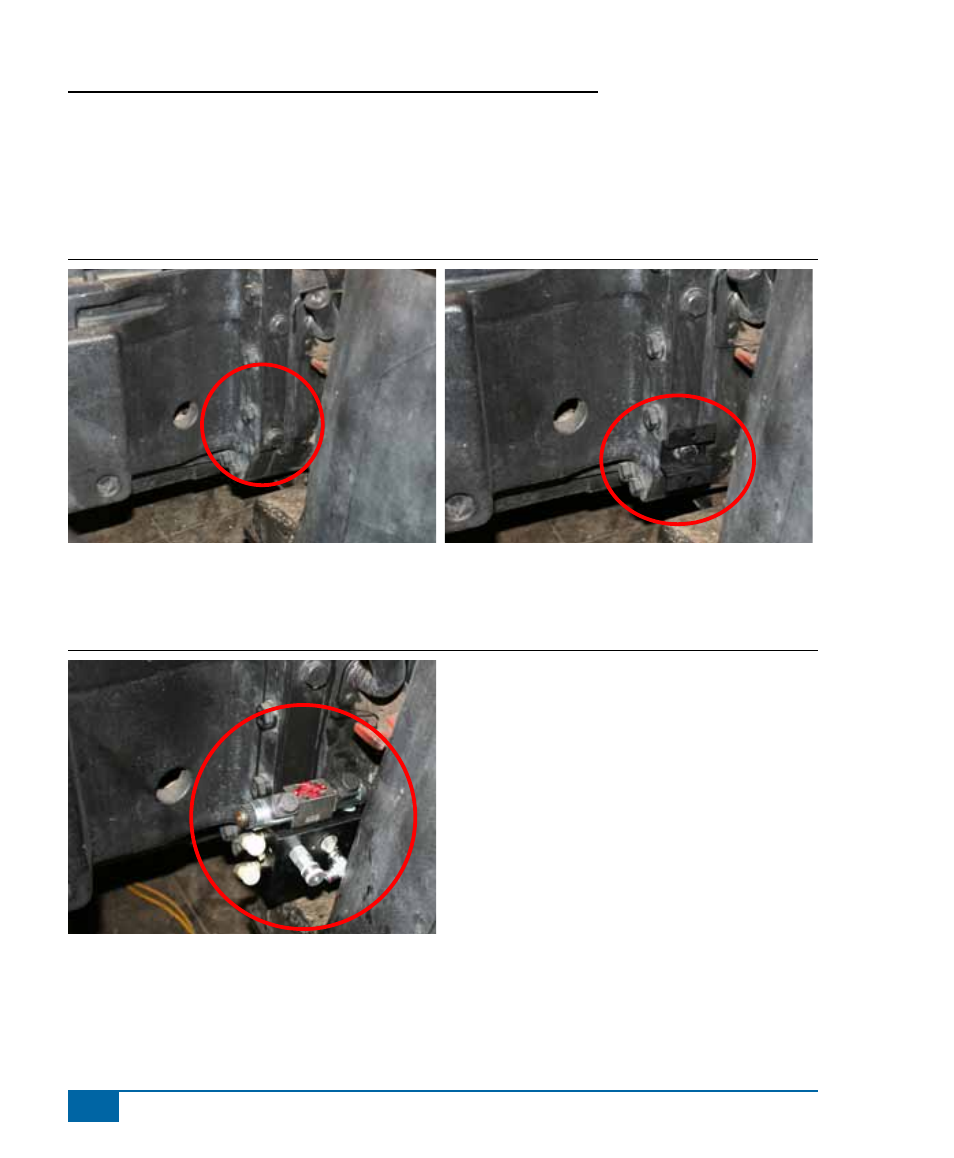

Figure 1-3: Install Mounting Bracket
Mount here
Mount here
3. install FieldPilot ValVe Block
Use bolts (F) , washers (B) and nuts (G) to mount the FieldPilot Valve Block to the bracket.
Figure 1-4: Mount FieldPilot Valve Block
Note: It may be necessary to initially mount with 1 bolt so that the valve can be rotated to install the rear
hoses.
