www.teejet.com

18

FieldPilot

®

8. iNStall SteeriNG diSeNGaGe Switch (Kit 91-07011)

The steering disengage kit

(BB)

is used to automatically disengage FieldPilot when the steering wheel is

turned. Bend the bracket as shown and glue the bracket to the plastic housing. Glue magnets to the steering

wheel as shown. The magnets mount on the steering shaft of the steering wheel and the sensor mounts so

that there is a 1/8″ clearance between the sensor and magnet. Additional magnets

(Z)

are included and may

be used as needed. Sensor extension cable

(D)

is included in the kit.

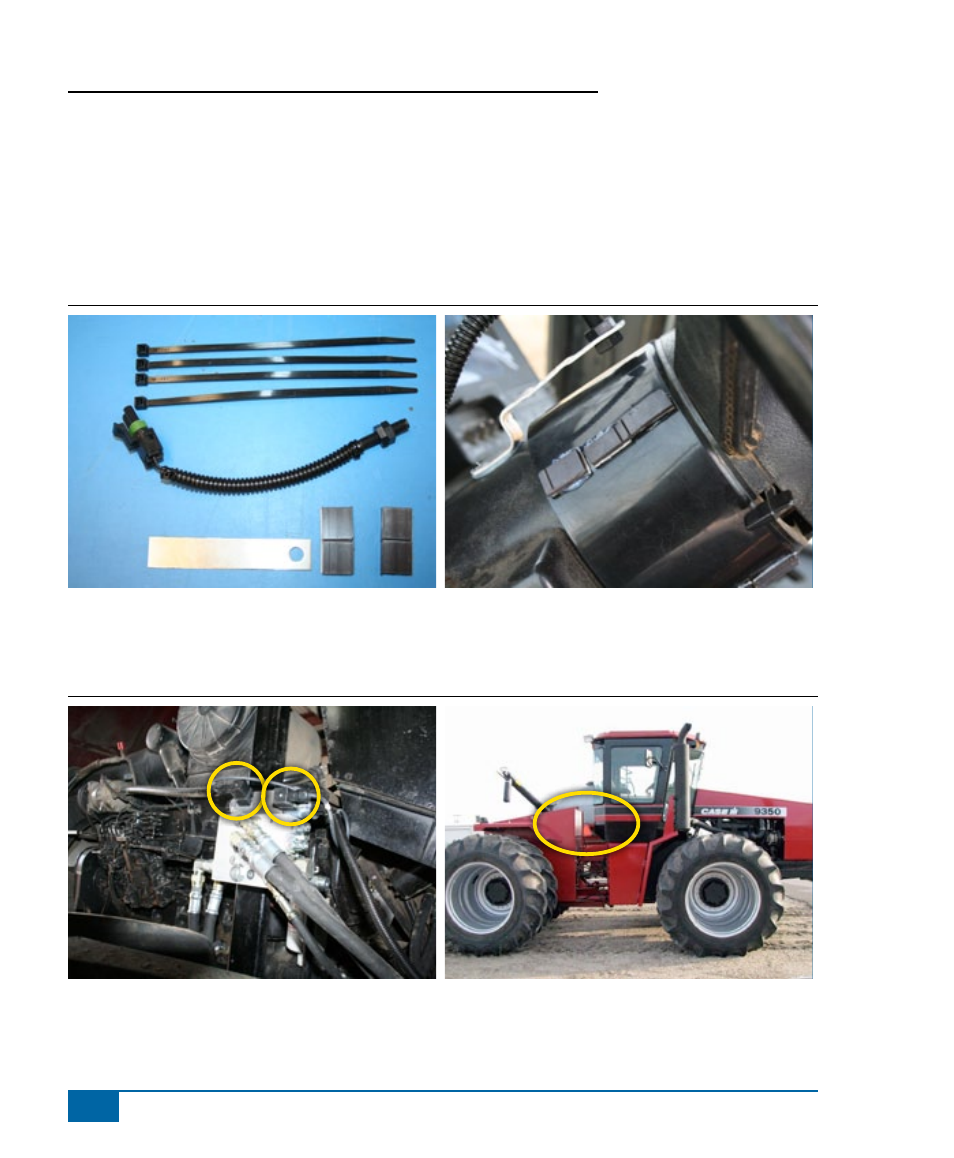

Figure 1-11: Install Steering Disengage Switch (Kit 91-07011)

9. iNStall the ValVe cONtrOl caBle

Route the valve control cable

(F)

from the FieldPilot valve to the bottom right rear of the cab.

Figure 1-12: Install the Valve Control Cable
