TeeJet FENDT-INTERFACE User Manual
Page 2
2
The interface can be mounted without using any tools. The box is mounted with velcro tape and
all connections are fitted with plugs.

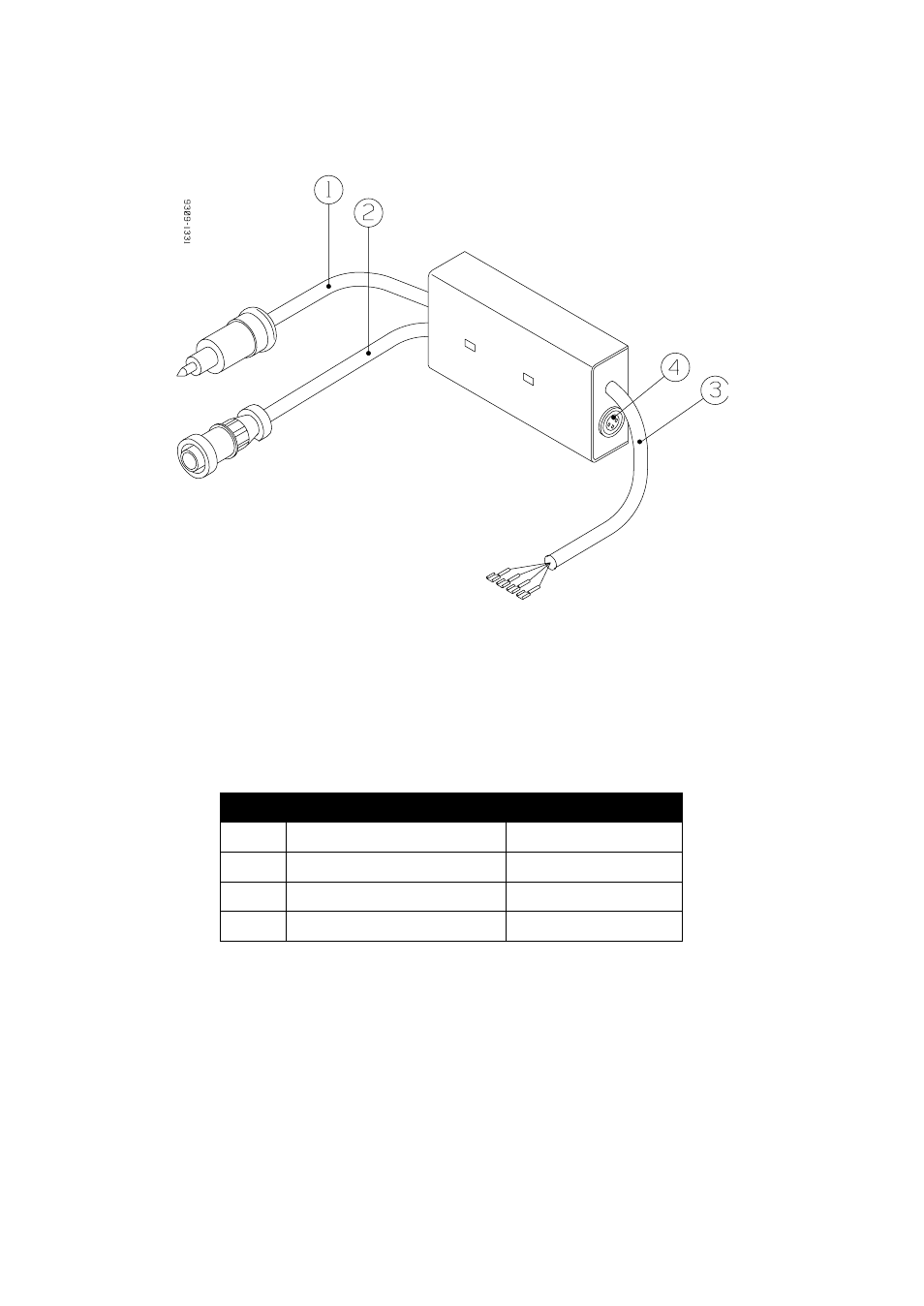

PLUGS:
1:
Power-connection. +12 Volt (blue wire) on center pin.
2:
Signal-plug. Connect to the signal socket of the tractor.
PIN
FUNCTION
WIRE COLOR
1
Speed signal from gear box
Black
2
Speed signal from radar
Blue
3
0 Volt (Ground)
Brown
4
Area counting on/off from lift
Beige
