Legacy 6000 Settings
Once the Tilt Sensor is properly installed and connected to the Legacy 6000, two initial setup steps
must be performed; enter an antenna height and calibrate (level) the sensor. The vehicle should be on
level ground when performing these two steps.
Antenna Height
To access Antenna Height select System Setup (Main Launcher Page)>GPS Receiver Setup>Antenna
Height. Enter the height of the GPS antenna above the ground. Initial value is 0.0ft. After changing the
antenna height the user will be prompted to restart the Legacy 6000.Press enter to continue setup.
Restart the Legacy when finished by cycling power.
Calibrate Tilt Sensor
Once the antenna height has been entered, and the vehicle is on level ground, the sensor needs to be
calibrated (Level). To access the level feature select System Tools (Main Launcher Page)>Device
Manager>GPS Receiver. Highlight the Level button and press the enter key. When calibration is
completed a message dialog box will appear. Press enter to continue.
Tilt Sensor System Guide

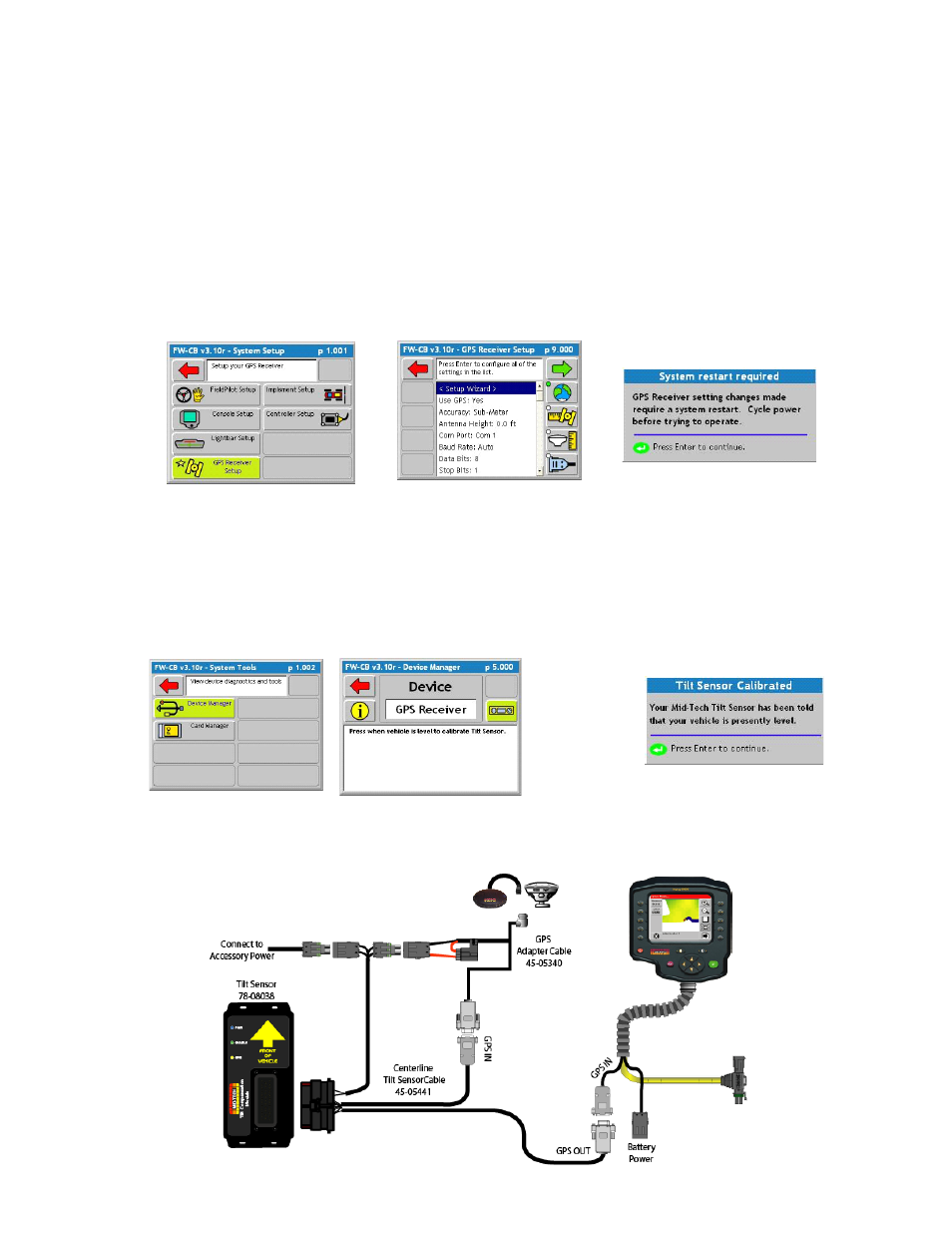

Figure 2: Setting Antenna Height
Figure 3: Calibrating (Level) Tilt Sensor
Level Button
