CenterLine Settings
Once the Tilt Sensor is properly installed and connected to the Centerline, two initial setup steps must
be performed; enter an antenna height and calibrate (level) the sensor. The vehicle should be on level
ground when performing these two steps.
Antenna Height
To access Antenna Height select Setup>Guidance>Antenna>Height. Enter the height of the GPS
antenna above the ground. Initial value is 9.8ft (3m). Minimum value is 0, and the maximum value is
32.8ft (10m).
Calibrate Tilt Sensor
Once the antenna height has been entered, and the vehicle is on level ground, the sensor needs to be
calibrated (Level). To access the level feature select Tools>Level.
Highlight the Level menu item and press the enter key on the remote. The lightbar will display Wait
during calibration and then briefly display Ready when calibration is completed.
Tilt Sensor System Guide

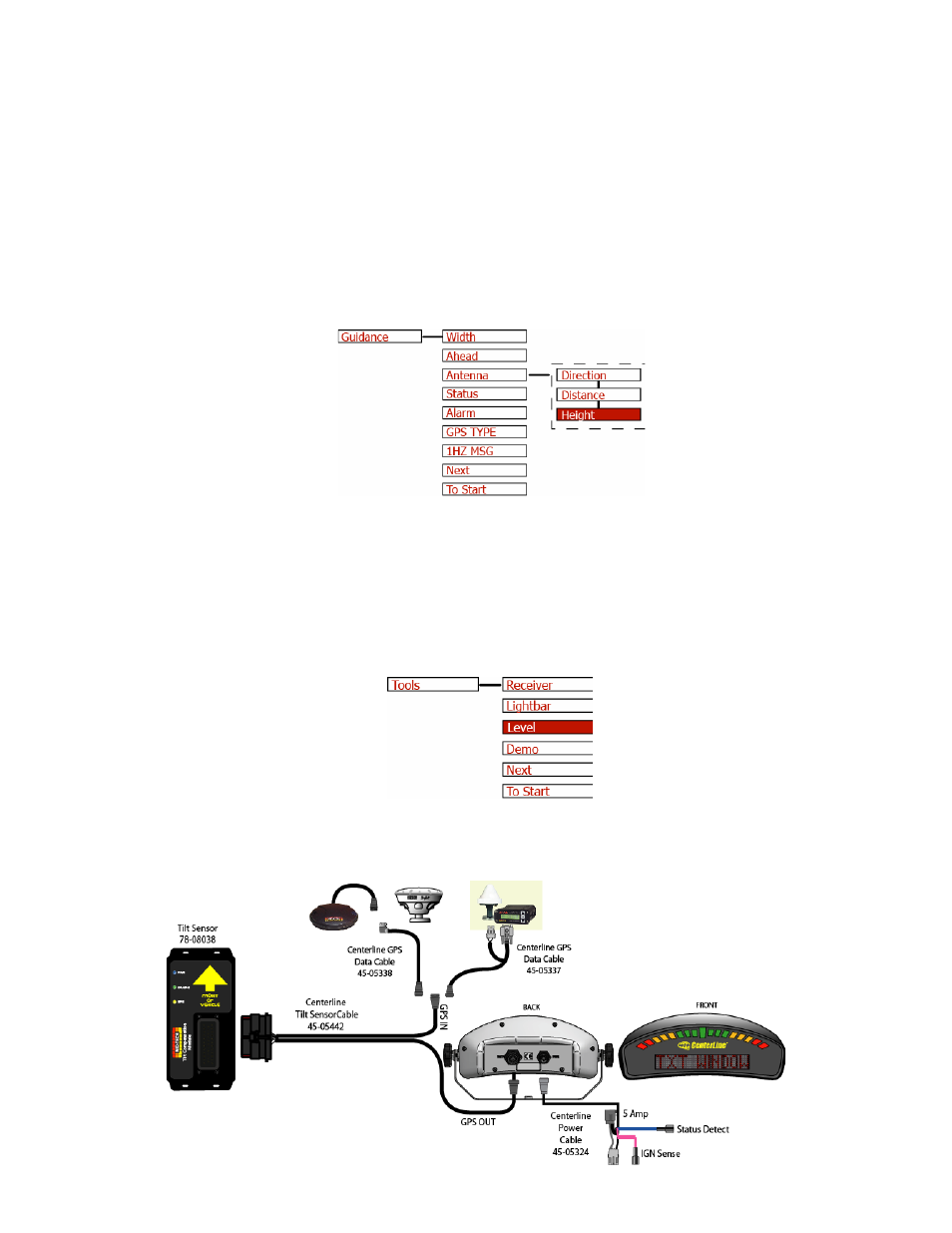

Figure 2: Setting Antenna Height
Figure 3: Calibrating (Level) Tilt Sensor
