APPENDIX
Terminal : Mini DIN 8-PIN
1 2
3 4 5
8 7 6

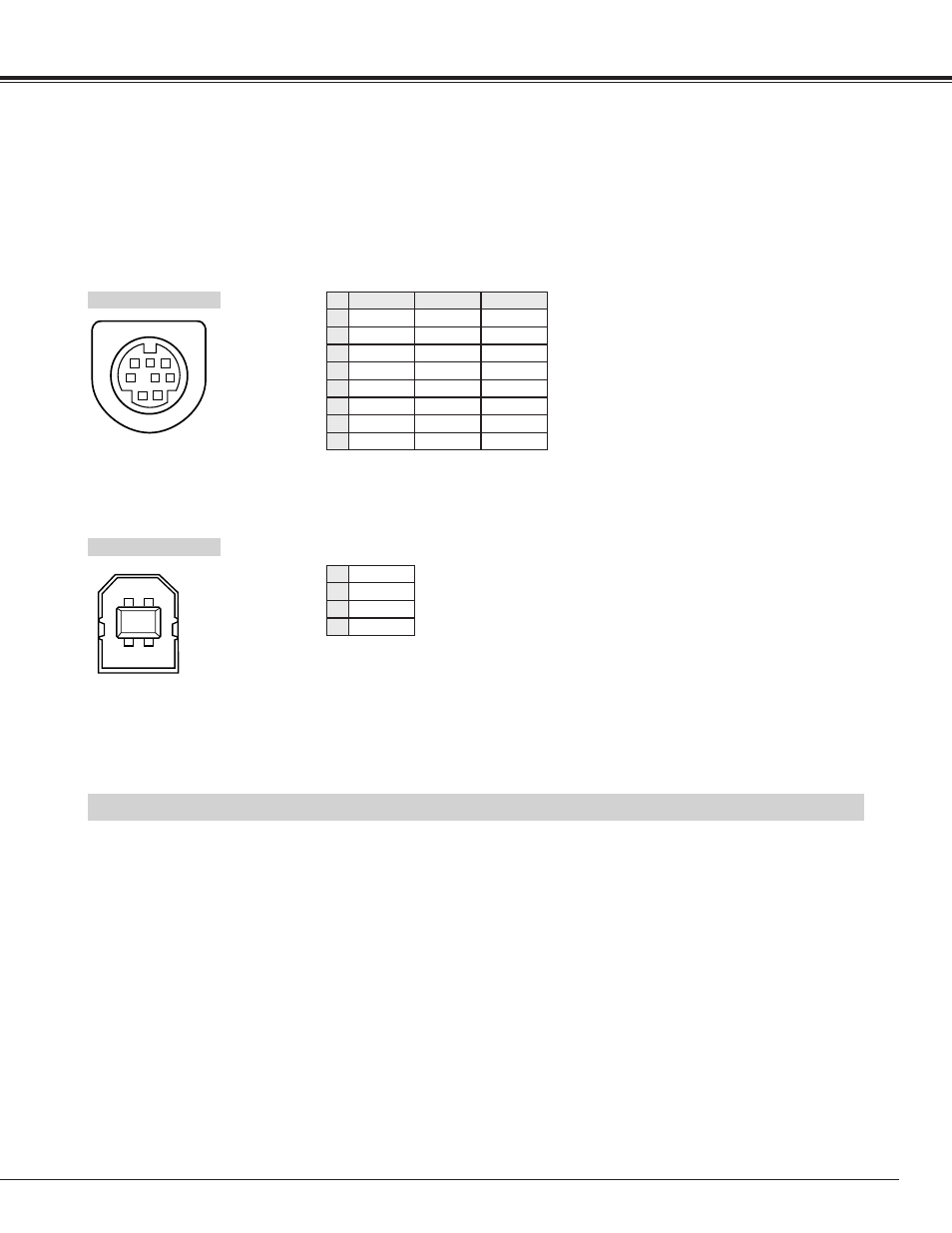

Pin Configuration
CONTROL PORT CONNECTOR
-----
CLK
DATA
GND
-----
-----
GND
-----
R X D
-----
-----
GND
RTS / CTS
T X D
GND
GND
-----
ADB
-----
GND
-----
-----
-----
GND
PS/2 Serial ADB
1
2
3
4
5
6
7
8
Vcc
- Data
+ Data
Ground
1
2
3
4
USB CONNECTOR (Series B)
Pin Configuration
2
3 4
1
OPTIONAL PARTS
The parts listed below are optionally supplied. When ordering those parts, give the name and Type No. to the sales dealer.
● Control Cable (Serial Port) Type No. : LV-CA26
● Control Cable (ADB Port)
Type No. : LV-CA27
● MAC Adapter
Type No. : LV-AD02
● Media Card Imager Kit
Type No. : LV-MC01
● Wireless Imager Kit
Type No. : LV-WI01
Available models are different in each country. Contact the
dealer for details.
When using Wireless Imager, set the following model name to
PJ Controller.
Model Name : 09-1-2
