QUICK START

1. You can position the E205U on an optional stand by using included accessories.

2. Be sure to position the side of grille net to the sound source and keep the Superlux logo and LED indicator face the

direction of sound source.

3. Plug the B type connector of the included USB cable into the USB socket on the bottom of the E205U.

4. Now, plug the other end of the USB cable into an available powered USB port on your computer.

Note: Be sure to check the USB audio device driver setup for Windows and Mac OS to confirm your computer has

recognized the E205U.

5. Next, launch your DAW, turn down the main output level and select the E205U for the input.

6. Set up a mono record track in your DAW.

7. Now, setup the level of the E205U and there are few ways to do this depending on your computer system. You can set

the microphone's input level in the Sound playback in Windows or in the Sound dialog box in the System Preferences if
you are using the MAC OS.

8. Set level of the microphone by raising the Input level control in your DAW or system to about half way up.

9. Next, put on your headphones that is connected to the headphone output of E205U, position the E205U to the sound

source then adjust the volume control until you reach a comfortable listening level.

Now, follow the instructions of your DAW software to enable the track for recording and you're ready to record.

Note: if the microphone level of E205U are too loud or not enough, please check your DAW software or refer to

Troubleshooting page in this manual to adjust the level in Windows and Mac computer system:

USB AUDIO DEVICE DRIVER

Windows Operating Systems

If you encounter problems, make sure the driver was properly installed.

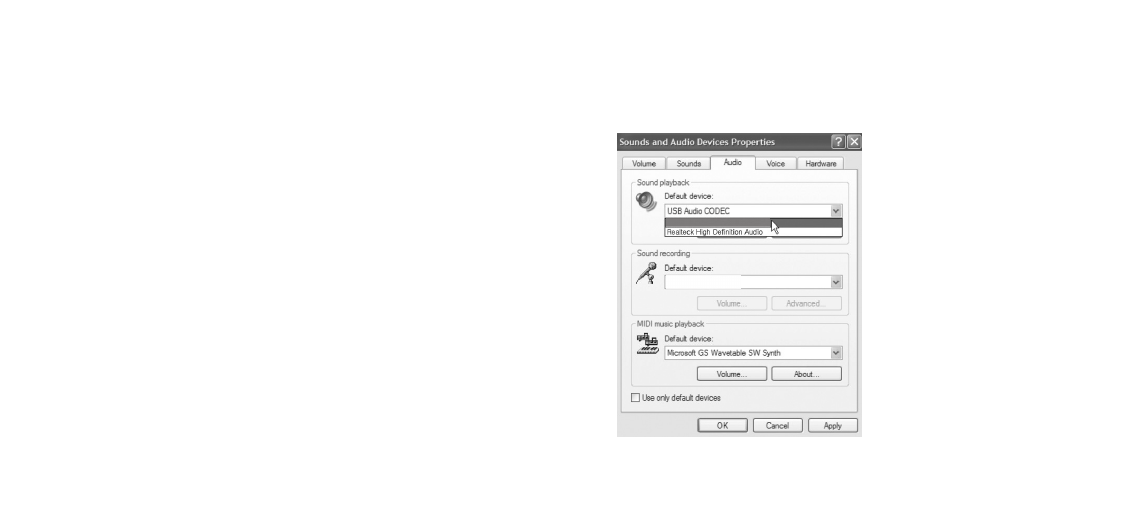

From the Control Panel, open
Sounds and Audio Devices.

In the Audio tab, look for Superlux
E205U in the drop-down menus for
Sound playback and Sound recording.
