The D10B is a dynamic super-cardioid microphone designed for music
instrument live sound and recording applications. D10B exhibits wide and
flat frequency response that capture sound naturally. With its high SPL
ability, it works well with very loud sound sources. The directivity is super-
cardioid pattern, this polar pattern effectively rejects off-axis sound such as
stage monitors, and neighborhood sound sources to prevent crosstalk and
feedback.
A fine tuned shock mount within the D10B also greatly reduced mechanical
vibration and stage noises.
All metal construction with strengthen grill makes D10B very durable for
stage assignments, and occasional drops or drum stick hitting will not
damage the D10B.
Non-gloss black coating on the body with low reflection silver white grill to
assemble low profile appearance with natural beauty sound. The D10B is a
good candidate to various job. From drum sets to speech podium, from
stages to churches.
Description
! Balanced and clean original sound reproduction.
! Super cardioids, high gain before feedback.
! Anti-bucking coil to reject power line interference.
! Metal structure with scratch resist coating.
! Supplied with clip, shock mount, drum clamp and carrying pouch.
Features
User Guide
G O A N G - F A N N C O . , L T D .
2007, SUPERLUX I
LB100D10B02EN (Rev. 1) nc.
－1－

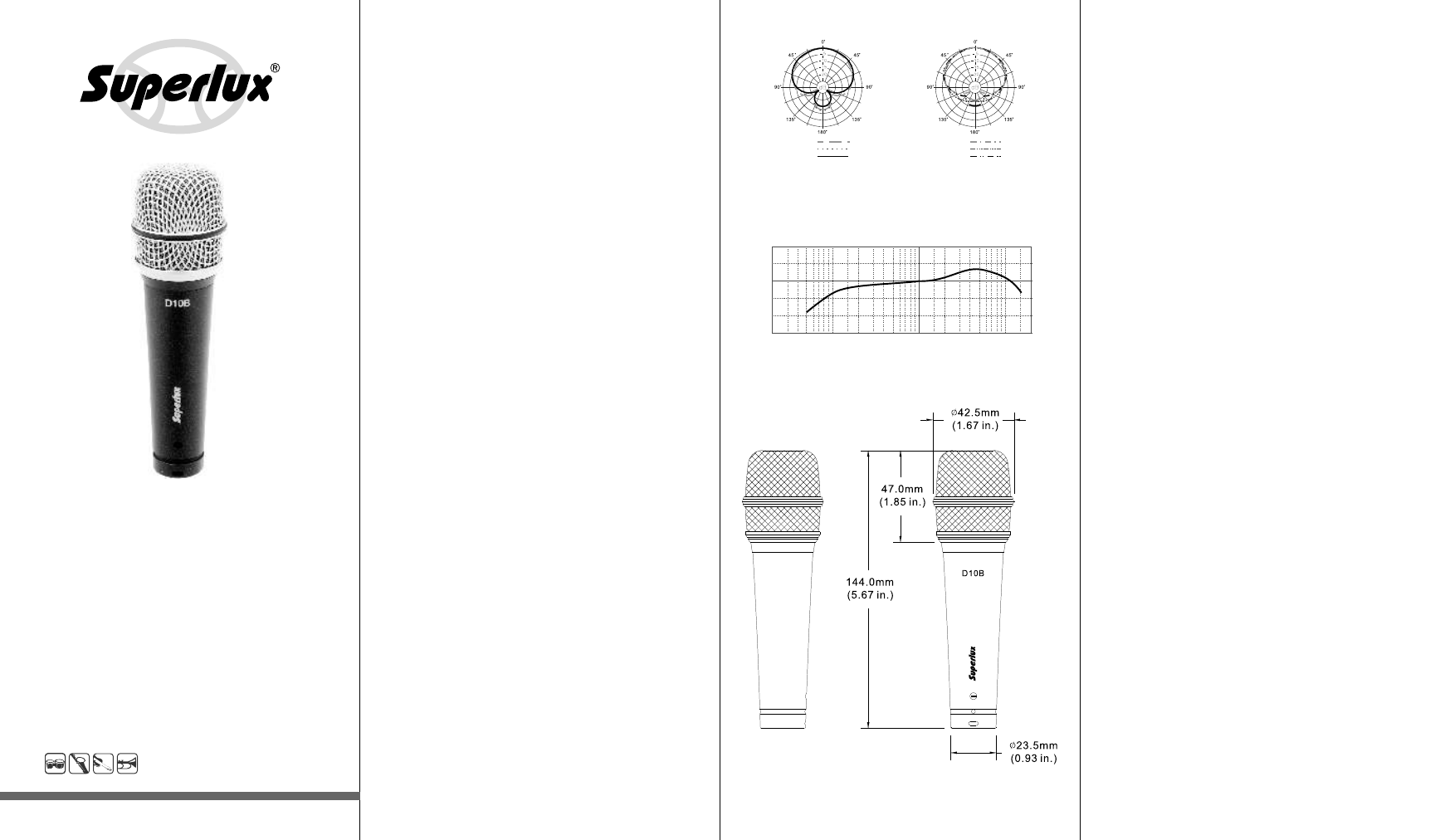

Specifications
Dynamic microphone
Type
Polar pattern
50 to 18,000 Hz (Figure 2)
Frequency response
Sensitivity (at 1,000 Hz Open Circuit Voltage)
200Ω
Rated impedance
J U S T P L A Y I T
The D10B operates between -10℃ to +50℃(14℉ to 122℉) with
relative humidity between 0 to 95%.
Environmental conditions
Net weight
Dimensions
Black paint body and silver housing
Finish
D 10B
Instrument Microphone
220.0 grams (7.76 oz)
-54.0dBV/Pa (2.0mV/Pa) 3dB , 1Pa=94dB SPL ±
Connector
The D10B including the product and packages follow the instruction of
EU 2002/95/EC and comply to RoHS.
RoHS
Unidirectional (Super Cardioid), rotationally symmetrical about
microphone axis, uniform with frequency. (Figure 1)
Integral 3 pin male XLR type
Φ42.5mm x 144.0mm (1.67in. x 5.67in.)，figure 3.
－2－
Dimensions (Figure3)
TY PICAL FR EQUENCY RESPONSE (Fi gur e2 )
FREQUENCY IN Hz
Fre quency Response
R
E
L
A
T
IV
E
R
E
S
P
O
N
S
E
I
N
d
B
dB
10
-10
-20
20 50 100 200 500 1000 2000 5000 10000 20000 Hz
0
TYPICAL POLAR PATTERN (Figure 1)
2000 Hz
4000 Hz
8000 Hz
250 Hz
500 Hz
1000 Hz
