acuna88 by Studiologic® 7

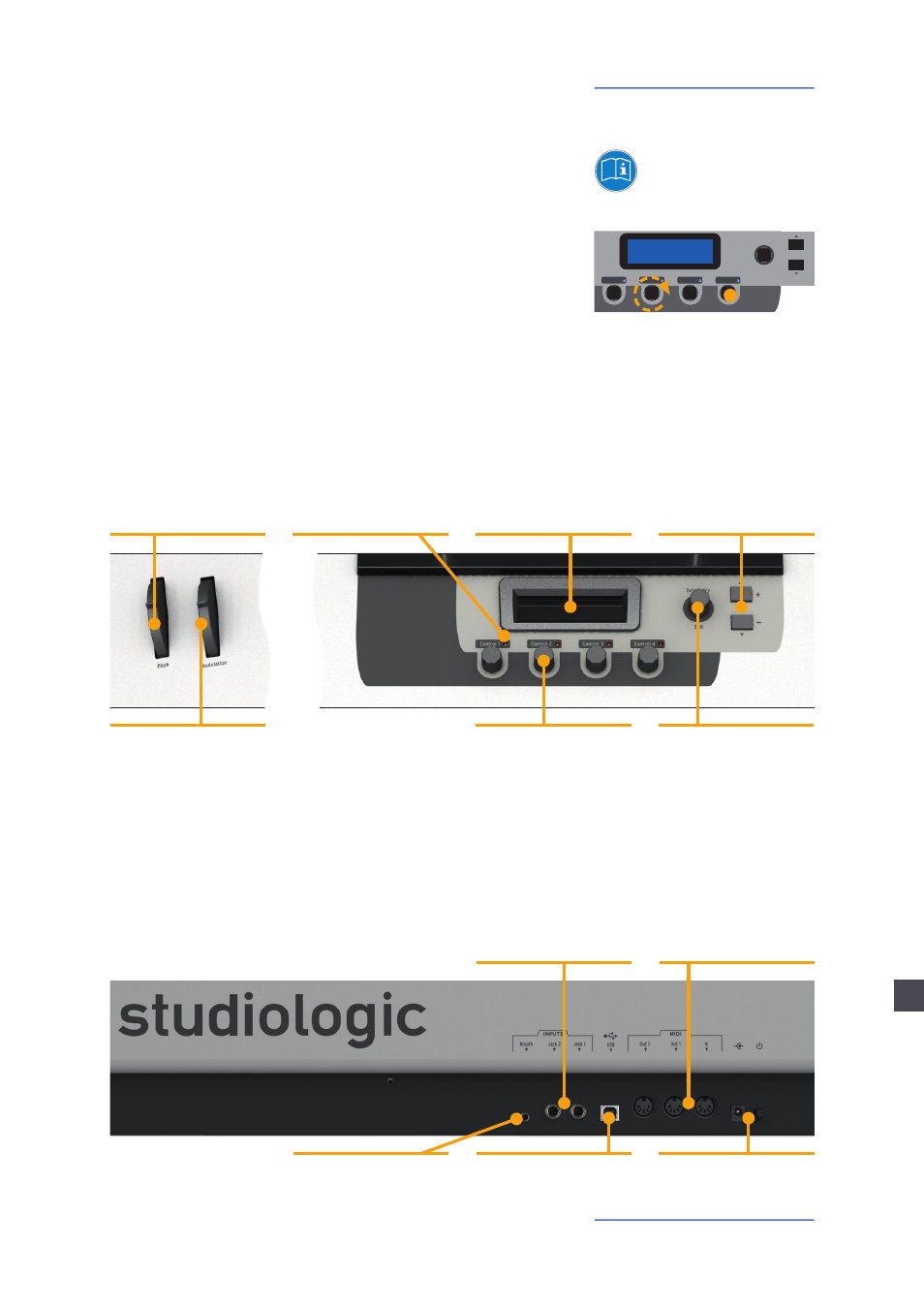

Control panel
Connections / Back view
How functions are shown in
this manual All operation buttons are marked in bold italic in this manual
(e.g. Control 1).
Values in the display of the acuna88 are marked bold (e.g. Select
Zone).
The acuna88 offers Push Encoders. To perform a task they can be
either turned or pushed. If the encoder needs to be turned, it is
indicated by a circular arrow around the encoder. If you have to
press the encoder, it will be marked with a dot in the pictures of
this manual.
Pedal Jack 1 / 2
Page 8, 12
MIDI In, MIDI Out 1 / 2
Send / receive MIDI data
Page 8, 10, 14
Breath Control
Page 8, 11, 14 USB port for MIDI I/O
and iPad connection
Page 8, 10 Mains / Power
Page 4, 8
Display
Programming / values
Page 9 - 15 Navigation / Page scrolling
Confi rm / Cancel
Page 10 - 15
MIDI Controller / Zone /
Selection
Page 9 -14 Data Entry / Navigation
Page 9 - 15
Pitch Wheel
Page 9, 11
Modulation Wheel
Page 9, 11
Zone status LED
Page 9
+
-
Edit
Data Entry
Control 1 Control 2 Control 3 Control 4
Control panel / Connections
