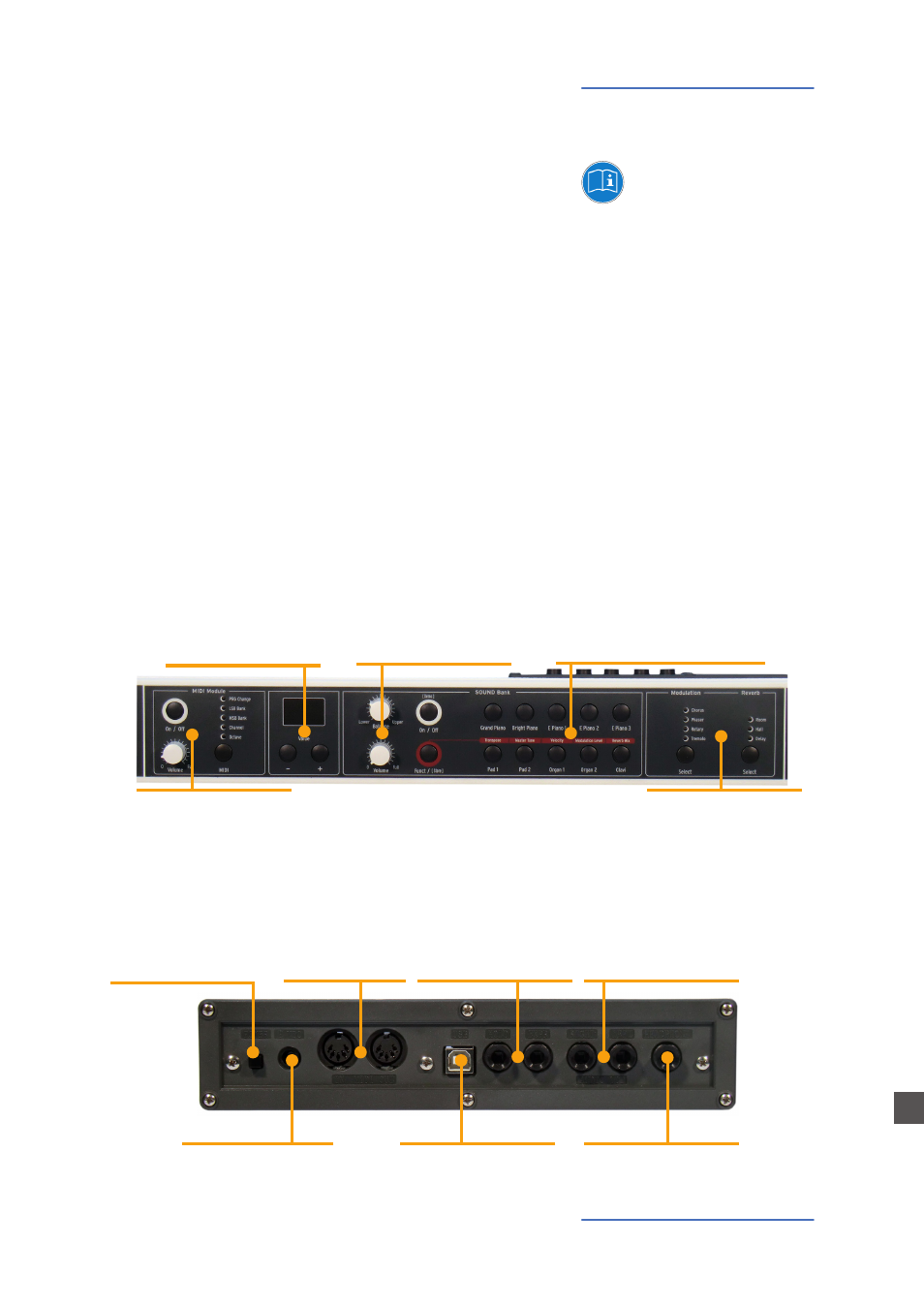

Control Panel / Connections
Connections / Back view
Power
9V - 1A USB Port
MIDI I/O and firmware update
Hold - Expression Pedals
Pedals connections Audio L/R Out
2x 6,3mm mono jack
MIDI In-Out Power On/Off
Headphones Out
1x 6,3mm stereo jack
How functions are shown in
this manual All operation buttons are marked in bold italic in this manual
(example: On/Off).
If you have to press two buttons at the same time, it is indica-
ted by & (example: Piano & Pad 2). You can either press both
buttons at the same time, or press and hold one button while
pressing the other button.
Key combinations with Function are always marked
red in
this manual. First press and hold Function while pressing the
other button (eg Function &
Transpose ).
Values in the display of the NUMA Piano are marked bold
(eg P01).
To adjust the values, use the Value+/- buttons under the
display.
MIDI Module
Masterkeyboard functions Effects
Modulation / Reverb
Volume - Balance
Volume and Balance
adjustment Sound Bank
Sound and system configuration Display - Value -/+
• Value adjustment
Control panel
