Configure RAID
WARNING! Setting or changing your RAID modes may erase all data or metadata on
your existing HDD/SSDs.

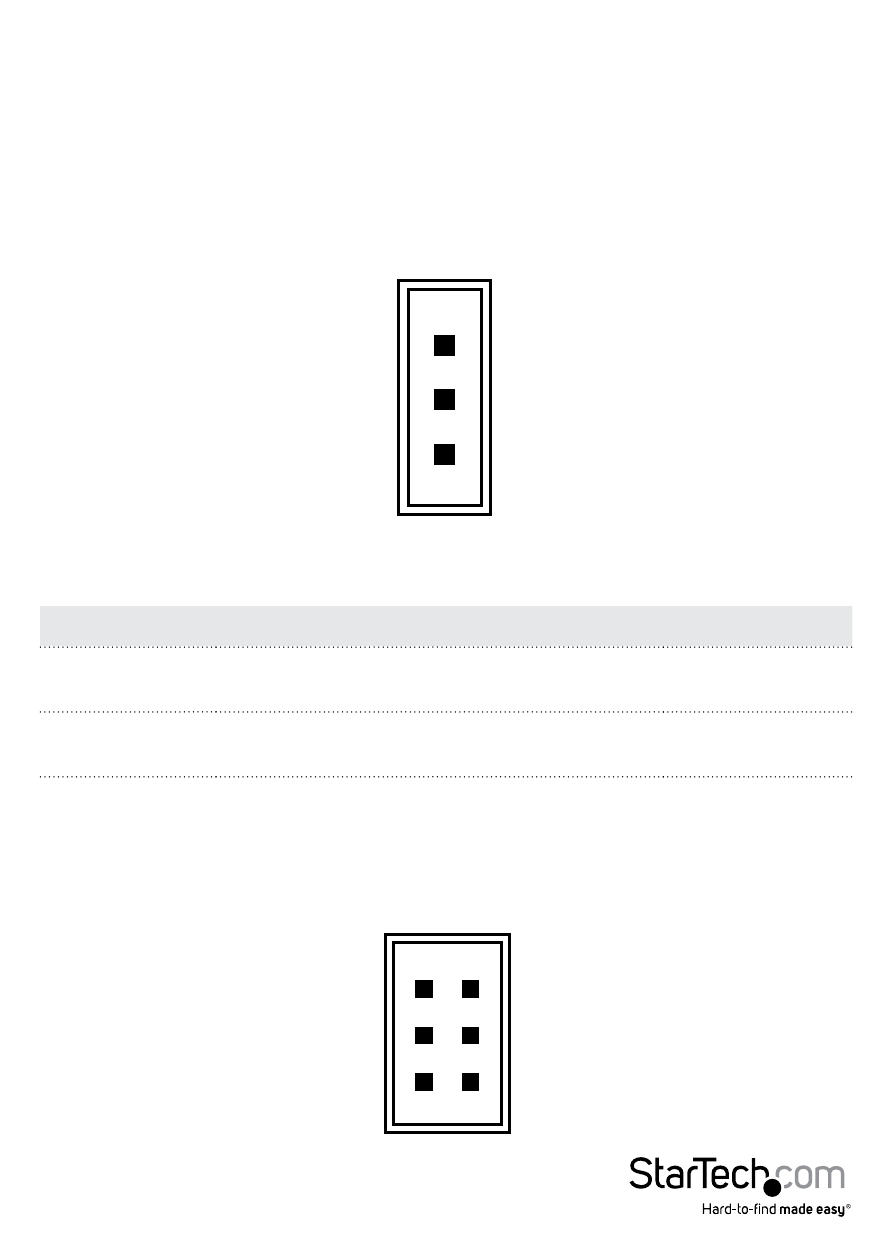

RAID Lock/Unlock Jumper Pins
The RAID lock/unlock jumper pins, located above the drive mounting brackets
enable you to lock your RAID configuration so it cannot be changed. Or unlock your
configuration so it can be changed.
Use the included jumper and the table below, to short the pins and set the mode for
your desired configuration.
GND
SET
NC
Mode Description Jumper Pins
Unlocked
Enables you to change your RAID
configuration mode.
GND-SET
Locked
Does not allow you to change your RAID
configuration mode.
SET-NC
RAID Mode Setting Jumper Pins
The RAID setting jumper pins, located next to the SATA connector enable you to set
your desired RAID configuration between RAID 0, RAID 1, JBOD, and RAID initial Mode.
1
2
3
4
5
6
