Instruction Manual
5

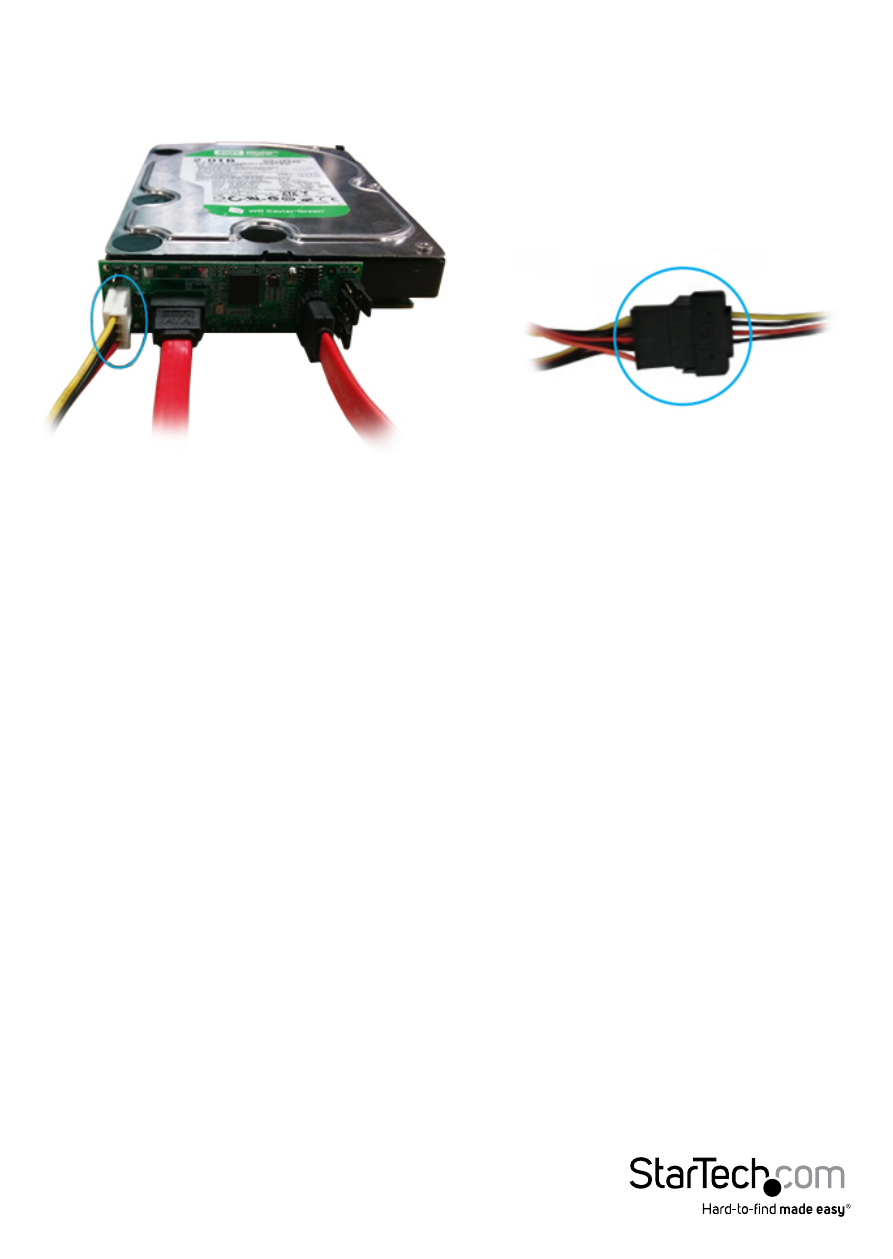

6. Using the included 4-pin to SATA Power Adapter, connect the 4-pin power
connector on the S322SAT3R to an available SATA Power Source in your
Computer System.
7. The S322SAT3R is now been installed, close your computer case and start your
computer to build the RAID array.
8. (Optional) If you would prefer to lock your RAID array so it cannot be altered by the
RAID mode setting jumper pins, power down and open your computer system, and
set the RAID Lock/Unlock Jumper Pins to the lock position. (See Configure RAID).
The computer system can then be closed and powered back on.
