Installation
WARNING! Do not stare into laser beam or look directly into the ends of the fiber, or
look directly into the aperture ports of the fiber. Invisible laser radiation can cause
eye injury.
Preparing Your Site
Before you can install the product, you need to prepare your site.
1. Determine where the host computer will be located and set up the computer.
2. Determine where the console devices (mouse, keyboard, monitor) will be located
and place them appropriately.
3. a) If you are using surface cabling, ensure you have enough Multi-Mode Fiber
network cabling to connect the Computer Unit to the Console Unit’s location, and
that each end is terminated with an SC connector. The cabling should not go
through any networking equipment (i.e. router, switch).
OR
b) If you are using premise cabling, ensure that the Multi-Mode Fiber network
cabling between the Computer Unit and the Console Unit has been properly
terminated in a wall outlet in each location and there is a patch cable long enough
to connect the Console Unit and the Computer Unit to their respective outlets. The
cabling should not go through any networking equipment (i.e. router, switch).

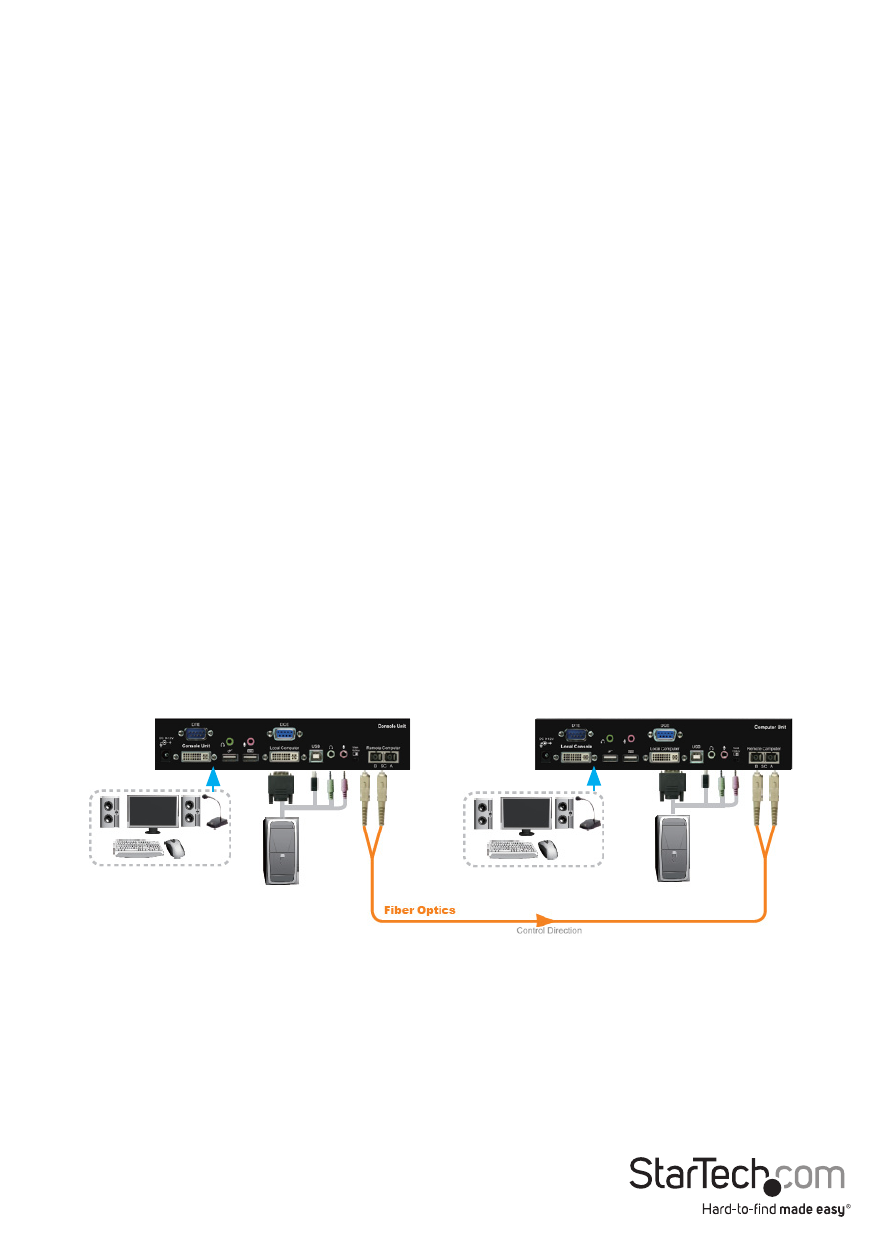

Console Unit Computer Unit
Remote
Console
*optional
Local Console
(optional)
Host computer
