Connecting Your KVM Extender
Preparing Your Site
Before you can install the product, you need to prepare your site.
1. Determine where the local computer will be located and set up the computer.
2. Determine where the console devices (mouse, keyboard, monitor) will be located
and place them appropriately.
3. a) If you are using surface cabling, ensure you have enough Category 5 unshielded
twisted pair (UTP) network cabling to run two cables from the Local Unit to the Remote
Unit’s location, and that each end is terminated with a RJ-45 connector.
OR
b) If you are using premises cabling, ensure that the Category 5 unshielded twisted
pair (UTP) network cabling between the Local Unit and the Remote Unit has been
properly terminated into wall outlets in each location and there is a patch cable long
enough to connect the Remote Unit and the Local Unit to their respective outlets.

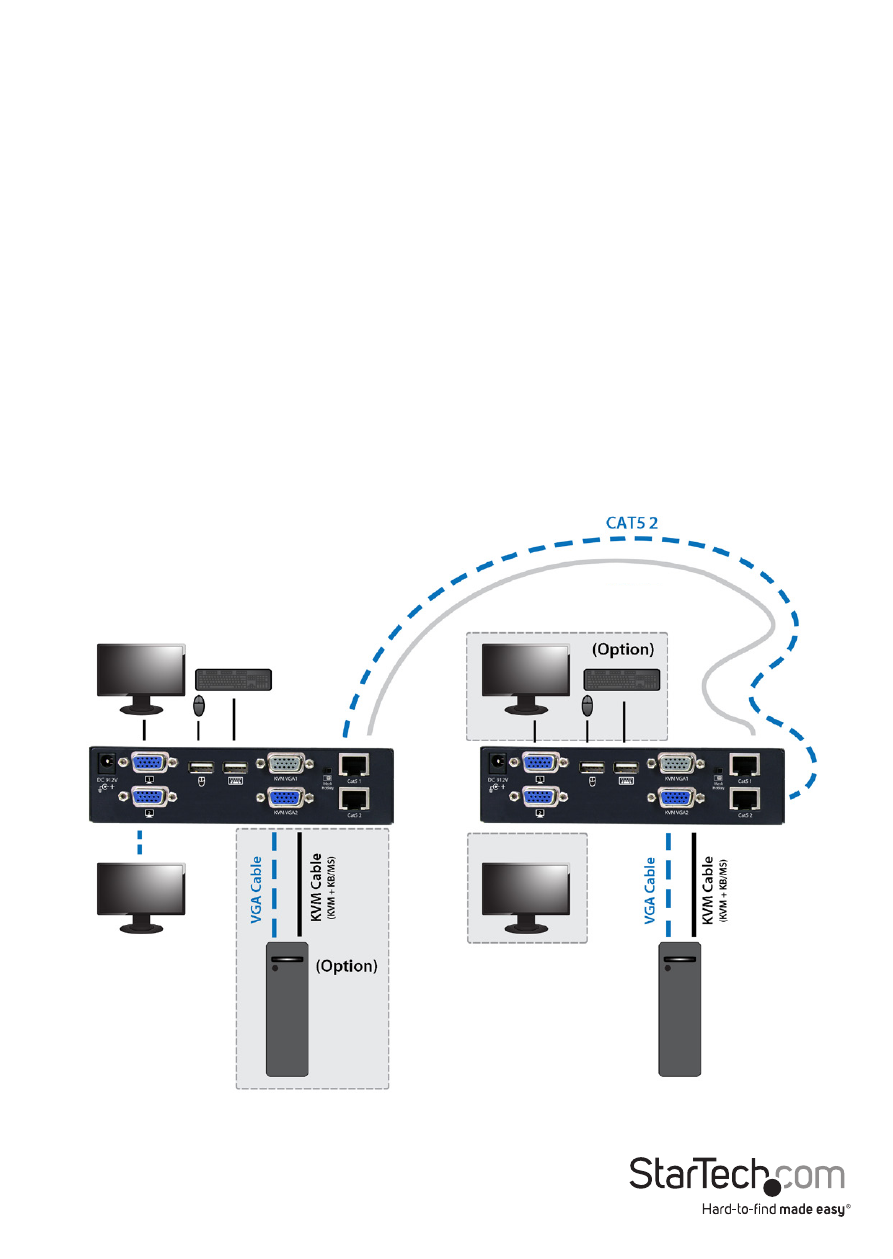

Remote Unit Local Unit
(Option)
CAT5 1
