Instruction Manual
3
3. Insert the connectors from one end of a standard RCA audio cable into the audio
ports provided by the audio/video source.
4. Connect the remaining end of the RCA audio cable to the INPUT audio ports located
on the rear panel of the distribution amplifier.
Connecting the distribution amplifier to the display
1. Insert the connectors from one end of a standard component video cable to the
colorcoded OUTPUT ports located on the distribution amplifier. These ports will be
labelled Pr/R/V, Pb/B/V2 and Y/G/V1
2. Connect the remaining end of the component cable to the corresponding ports
provided by the display. Be sure to follow the color coding appropriately, to ensure
that there is a direct connection between each component signal.
3. Insert the connectors from one end of a standard RCA audio cable to the OUTPUT
audio ports located on the distribution amplifier. These ports will be marked R/V
and L/H, denoting the left and right audio channels.
4. Connect the remaining end of the RCA audio cable to the input ports located on
your display. For further instruction on the location of these ports, please consult
the documentation that accompanied your display at the time of purchase.
ST123HDA used with HD RGBHV video source
Using a standard RGBHV cable, you can connect your video source to the distribution
amplifier for use with up to three displays:
Connecting the A/V source to the distribution amplifier
1. Insert the connectors from one end of a standard RGBHV video cable to the
color-coded output ports located on the A/V source.
2. Connect the remaining end of the component cable to the corresponding ports,
(marked INPUT) on the rear panel of the distribution amplifier. The necessary ports
are labelled Pr/R/V, Pb/B/V2 and Y/G/V1.

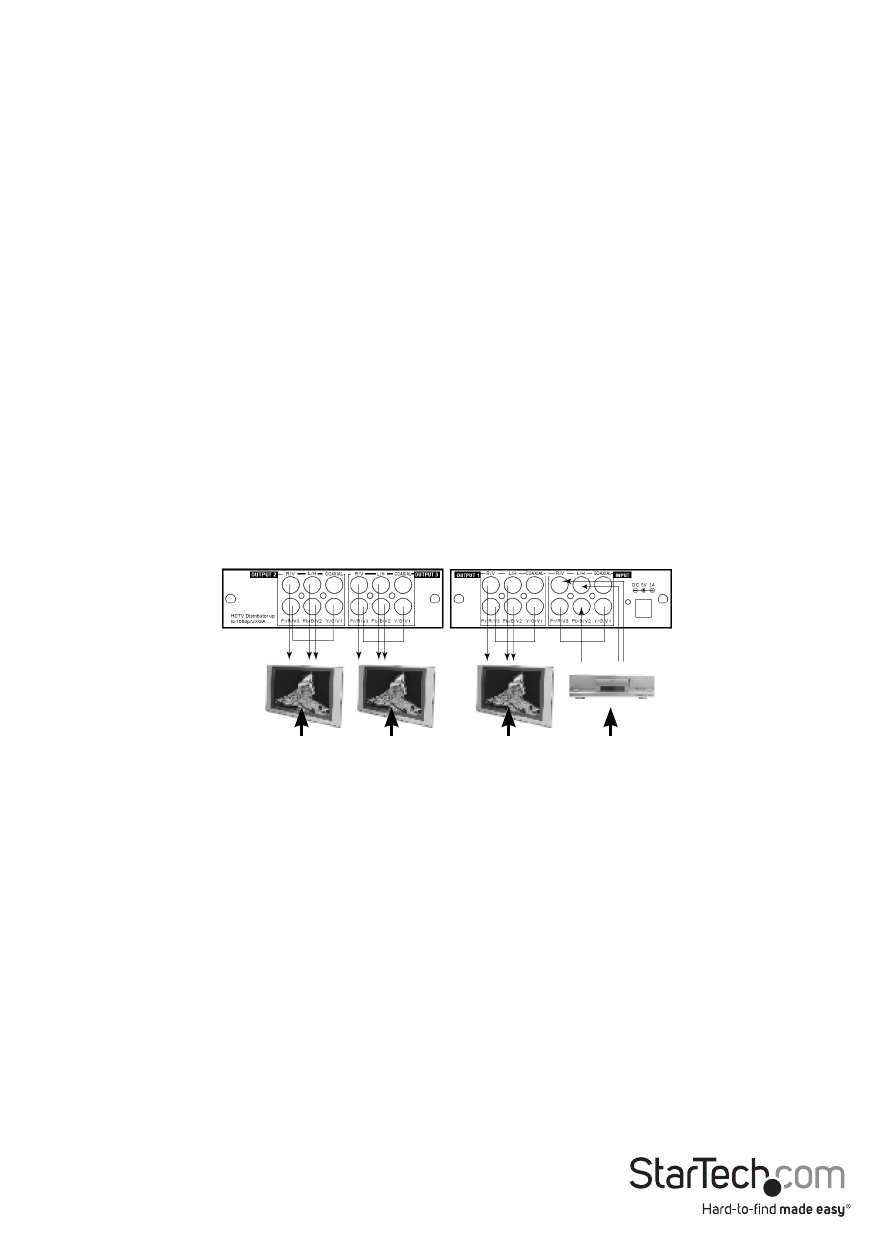

Diplay #3 Diplay #2 Diplay #1 Video Source
