StarTech.com COMPUTPWALLA - Manual

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 02/21/2012
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• 2 x COMPUTPWALLA units
• 2 x Screw kit
• 1 x Instruction Manual
System Requirements
• Composite video source
• Standard in-wall outlets
COMPUTPWALLA

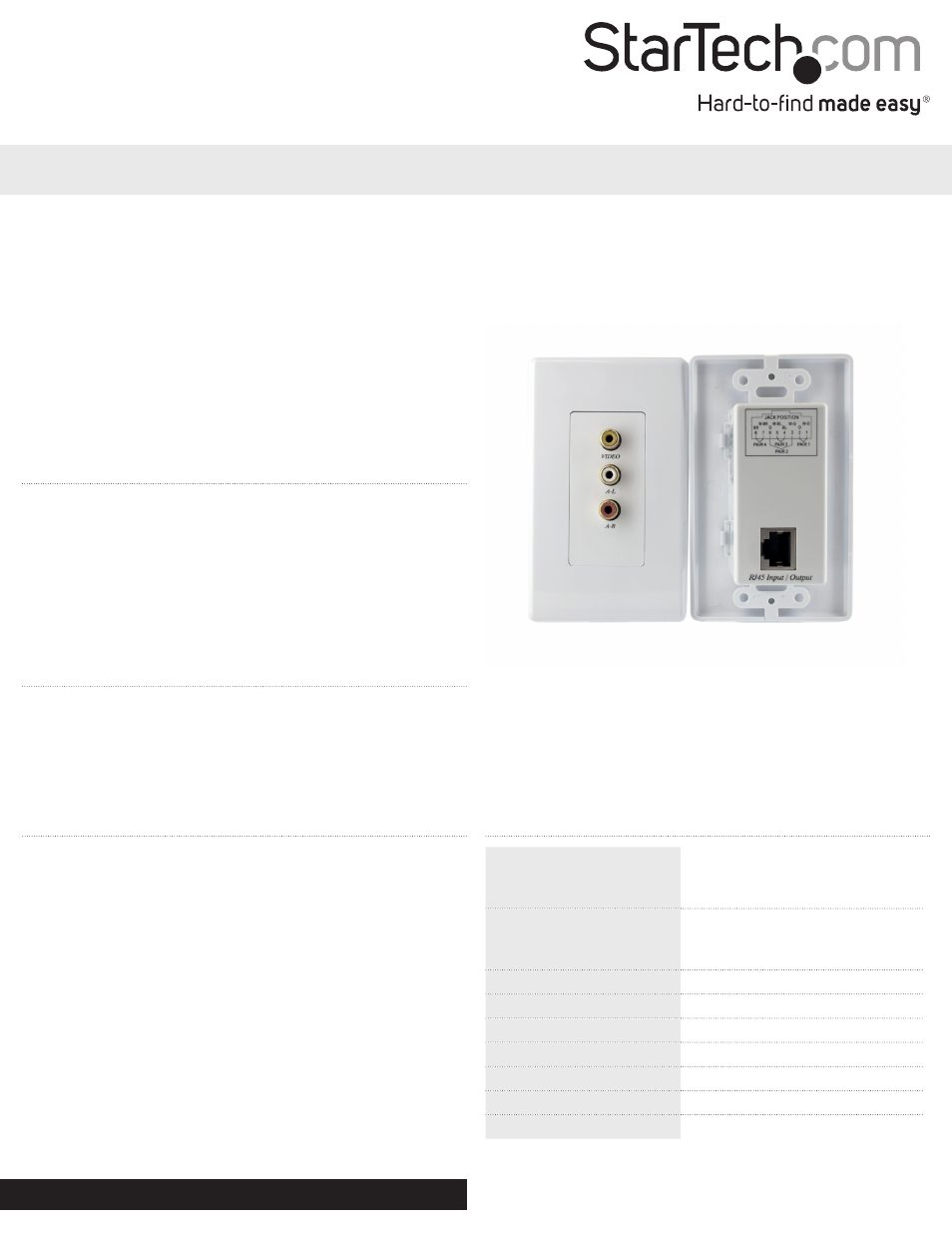

Composite Wall Plate Video and Audio Extender over Cat5
*actual product may vary from photos
Hardware Installation
1. Remove the 2 screws from the front face plate and remove the
face plate.
2. Plug the RJ45 connector from the wall outlet to the back of the unit.
3. Mount and secure the unit into the wall outlet using the supplied screws.
4. Mount and secure the front face plate to the unit again.
5. Repeat steps 1-4 for the other unit.
6. Connect the composite video/stereo audio source to one unit and
the composite display/audio receiver to the other.
Specifications
Signal Type
Composite video
Stereo analog audio
(left/right)
Connectors
1 x RCA composite video
2 x RCA stereo audio
1 x RJ45
Maximum Resolution 480i
Maximum Distance 200 meters
Power Self-Powered
Colour White
Material Plastic
Weight 100g
Dimensions 115.0mm x 70.0mm x 61.0mm
