5-3
User Guide for Cisco Unified Operations Manager
OL-19470-01
Chapter 5 Monitoring IP Phone Outage Status
Starting the IP Phone Outage Status Display

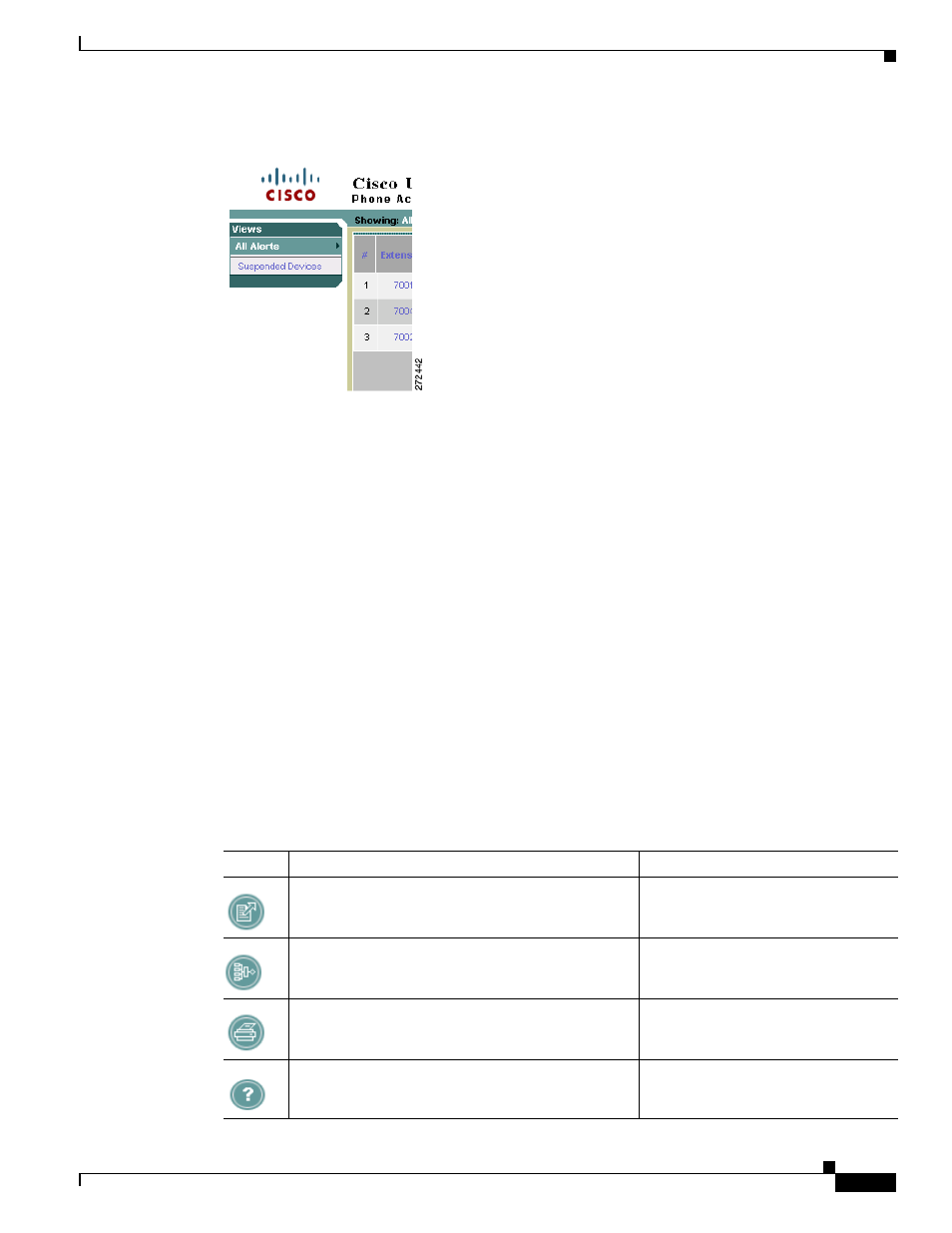

Figure 5-2 IP Phone Outage Status Display—View Pane
You can have up to 18 views in the view pane in a single IP Phone Outage Status display.
Launch Information and View Status Bar Area
The launch information area shows the current time on the server when the IP Phone Outage Status
display is being viewed.
The view status bar lists the selected view, which is shown in the tabular display pane.
Tabular Display Pane
The tabular display pane is the core of the IP Phone Outage Status display. It contains a list of all the
phones that have become disconnected or unregistered, or gone into SRST mode on the devices in your
current view. This pane is refreshed every five minutes. For an explanation of all of the items in the
tabular display, see
Getting Phone Alert Details, page 5-4 .
The diamond symbols in the Last Change column indicate which phones have experienced recent
activity. When no icon appears in the Last Change column, the alert is no longer current, or stale.
The tabular display pane is scrollable and can store up to 1,000 records.
Window Tools Area
The top-right corner of the IP Phone Outage Status display contains available tools buttons. All buttons
are described in
Table 5-1 .
Table 5-1 IP Phone Outage Status Display—Window Tools Buttons
Icon Meaning Described in...
Exports the current tabular display to a PDF file. Exporting Data from a Display or
Report, page 1-21
Opens the Filter page, for refining the tabular display
in the IP Phone Outage Status display. Filtering IP Phone Outage Status,
page 5-5
Opens a printer-friendly version for printing. Printing Displays or Reports,
page 1-22
Opens the Operations Manager online help. Using Help, page 1-18
