6 | Connections

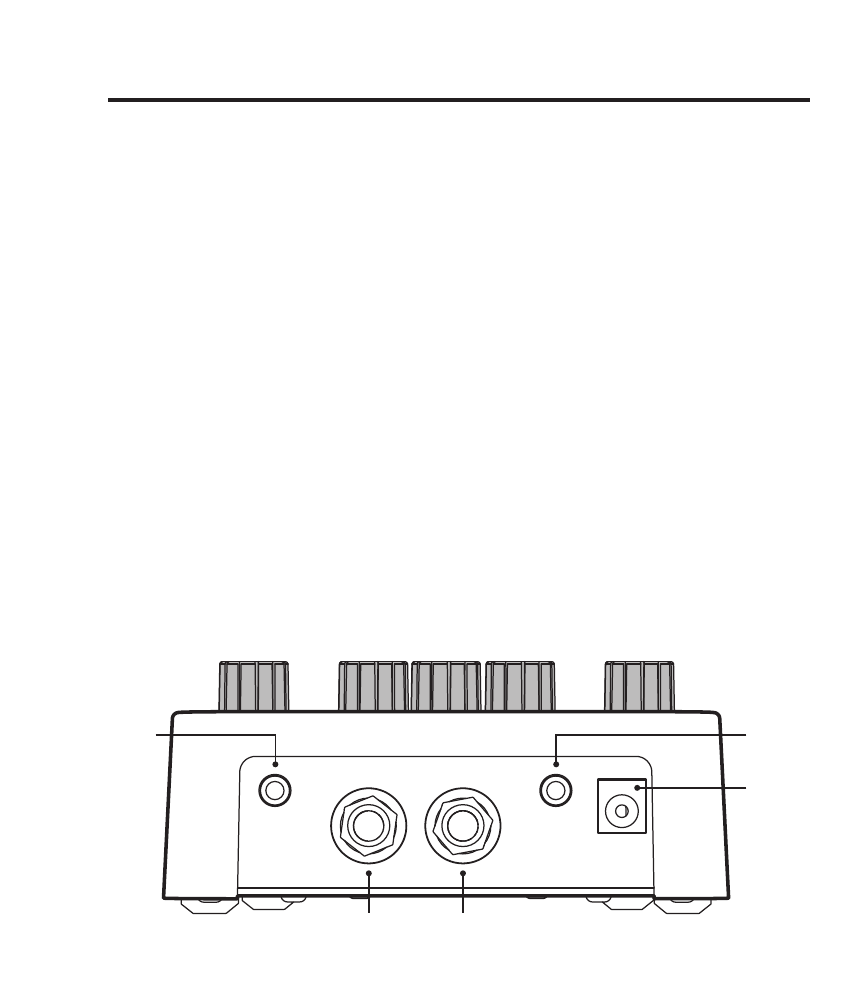

cONNEcTIONS

GUITAR IN (A): Connect your guitar, bass, or other instrument via a

MONO ¼" cable.

GUITAR OUT (B): Connects to your amp, pedal, or other audio device via

a MONO ¼” cable.

MUlTI-FUNcTION IN (c) (optional): The multi-function input is a flexible
control input for use with external controllers. It accepts digital or analog

signals which allow the Orbital Modulator to interface with the following
accessories:

SA110/SA115 Hot Hand Wireless Adapter

SA111 Hot Hand Wired Sensor

SA161 Source Audio Dual Expression Pedal

Source Audio Soundblox 2 MIDI Adapter

MUlTI-FUNcTION OUT (D) (optional): Use a Source Audio daisy-chain
cable to connect this jack to the sensor/multi-function input of another

Soundblox pedal.

9V Dc (D): Connects to the included 9 Volt DC power supply.

GUITAR IN

MULTI-

FUNCTION

IN

MULTI-

FUNCTION

OUT

GUITAR OUT

9V DC

D

E

A

B

C
