Controls: Knobs | 13

of time it takes for the envelope to drop back when the input signal
decreases. The decay is fixed to a rate twice as slow as the attack.

While Hot Hand is engaged, the SPEED knob controls the amount of
smoothing. Turning the SPEED knob clock-wise increases the smoothing
and makes Hot Hand less responsive and less jittery sounding.

Discovering Preset Knob Positions
Since the Orbital Modulator preset values can differ from the physical
knob positions, it may be useful to determine the positions of the preset
knob values. To start the process, put the pedal in bypass and set all
knobs to the full counter-clockwise position. Next, enable the preset
and slowly turn each knob up one at a time until the preset indicator
LED begins to blink rapidly. The rapid blinking indicates that the current
position of the knob matches the saved value.

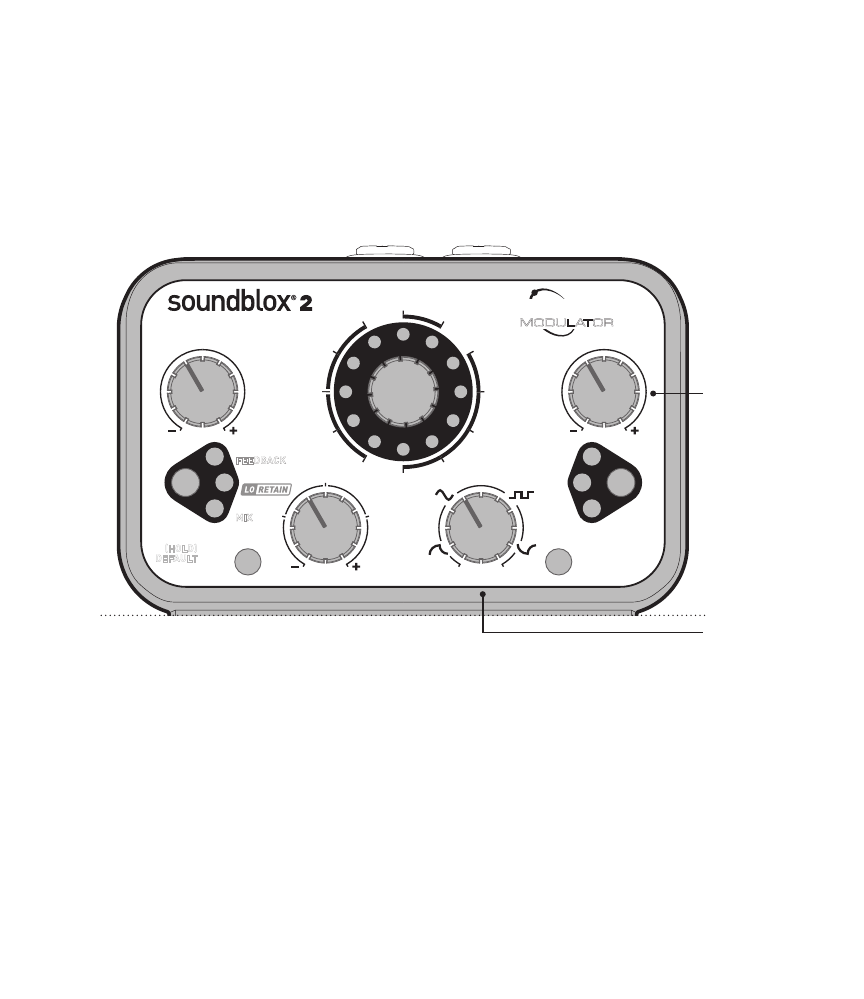

1

2

CONTROL

INPUT

OPTION

SELECT

ENV-

ENV+

DEPTH

OPTION

SPEED

DELAY/FREQ

FEEDBACK

VOLUME

TREMOLO

MIX

(HOLD)

DEFAULT

HH

MIDI

EXP

FLANGER

CHORUS

PHASER

RESONATOR

MOD SOURCE

4 STAGE

QUAD

CLASSIC

THRU

ZERO

SHADOW

RES 1

RES 2

VIBE

6 STAGE

8 STAGE

DUAL

12 STAGE

ORBITAL

MODULATOR

B

A
