20 | External Control

EXTERNAl cONTROl

One of the Core Features of the Soundblox 2 line of effects is the MULTI-
FUNCTION Input. The MULTI-FUNCTION input is an intelligent control
input that accepts both digital and analog control signals. It replaces the
SENSOR input on previous Soundblox pedals. The MULTI-FUNCTION
input connects to wired or wireless Hot Hand accessories, the Source
Audio Expression Pedal, or a future Source Audio MIDI interface that will
enable full MIDI I/O access to the pedal.

Selecting an external control input:

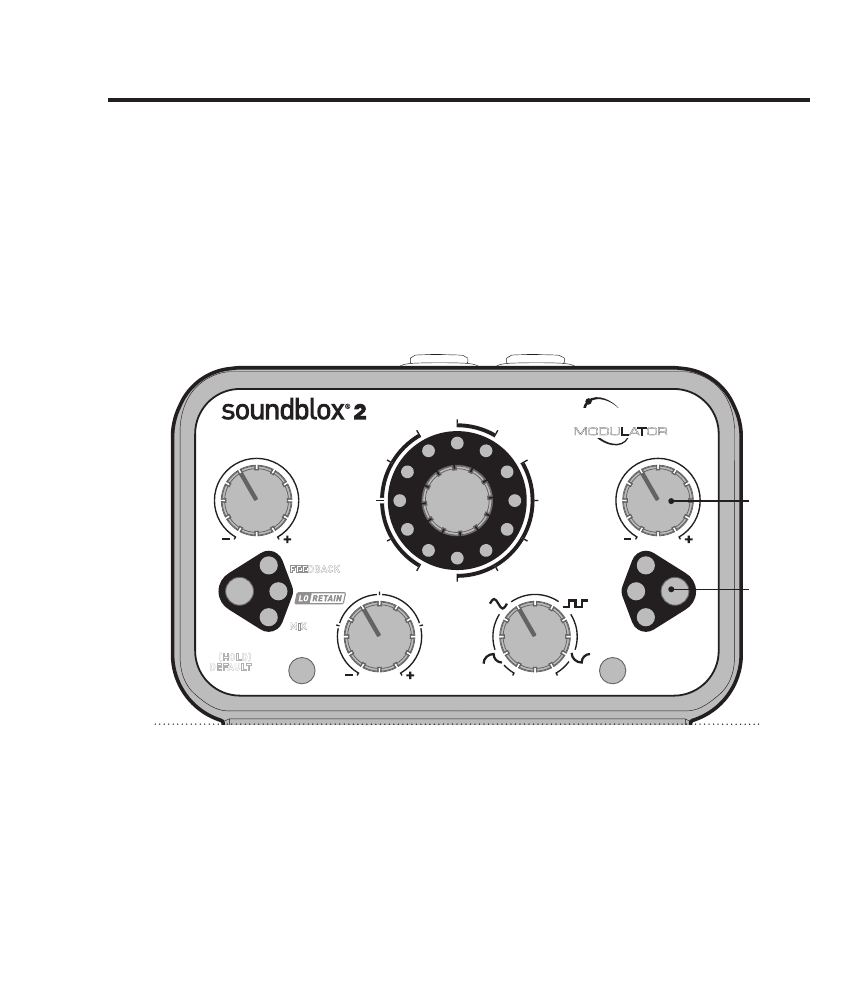

Press the CONTROL INPUT button (A) to cycle between the external
control options. There are four possible settings:

OFF (no illuminated LEDs): External control is disabled in this

mode and the MOD SOURCE knob remains active.
