Connections | 7

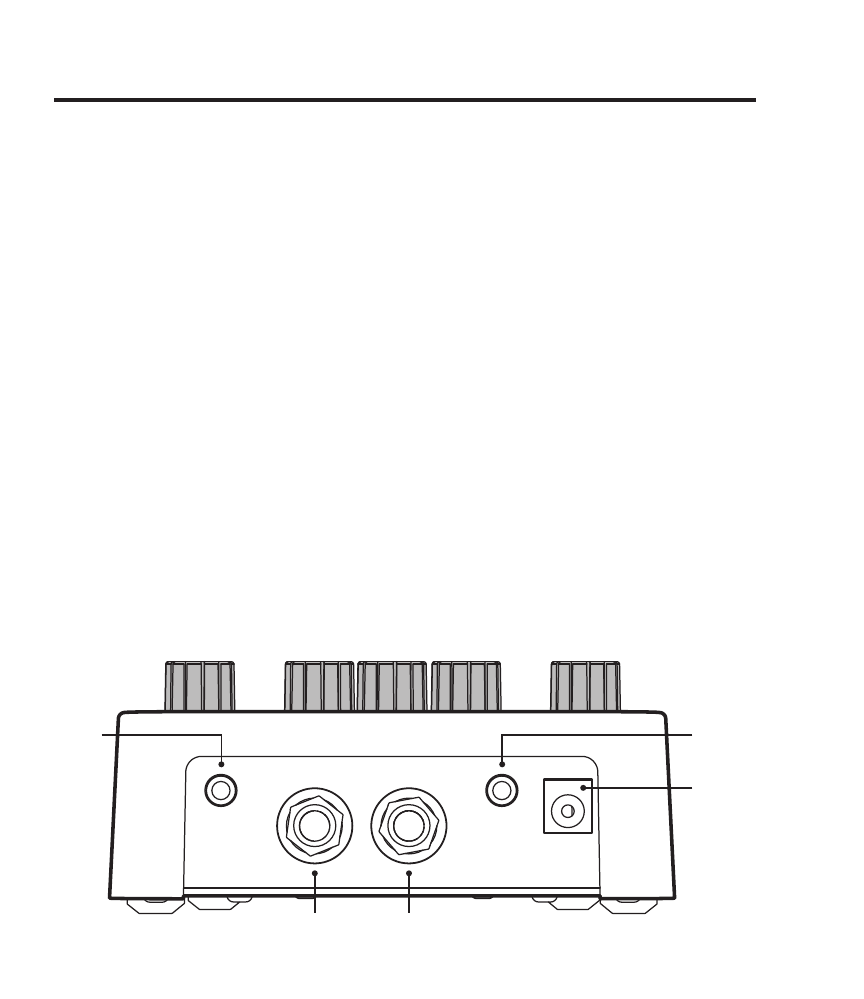

CONNECTIONS

GUITAR IN (A): Connect your bass or other instrument here using a

standard MONO ¼" cable.

GUITAR OUT (B): Connect this to your amp, pedal, or other audio device.
MULTI-FUNCTION IN (C): The multi-function input is a flexible control
input for use with external controllers. It can accept digital or analog

signal which allows the Soundblox 2 OFD Bass to interface with the
following accessories:

SA115 Hot Hand Wireless Adapter

SA111 Hot Hand Wired Sensor

SA161 Source Audio Dual Expression Pedal

Source Audio Soundblox 2 MIDI Adapter

MULTI-FUNCTION OUT (D): Use a Source Audio daisy-chain cable to
connect this jack to the sensor input of another Soundblox pedal.

9V DC (E): Connect the included 9 Volt DC power supply here. Use of a

non-Source Audio power supply may cause damage and void the warranty.

GUITAR IN

MULTI-

FUNCTION

IN

MULTI-

FUNCTION

OUT

GUITAR OUT

9V DC

E

D

A

B

C
