16 | External Control

EXTERNAL CONTROL

One of the new Core Features of the Soundblox 2 line of effects pedals
is the addition of the Multi-Function Input. The Multi-Function input is an
intelligent control input that can accept both digital and analog control
signals. The Multi-Function input replaces the Sensor Input on previous
Soundblox pedals. The MULTI-FUNCTION input can connect to wired or
wireless Hot Hand

®

accessories, a Source Audio Expression Pedal, or a

Source Audio MIDI interface that will enable full MIDI I/O to the pedal.

Selecting an external control input:
Press and hold the TONE SHAPE button, then press the NOISE GATE
button so the LOW/EXP LED is lit red. This will change the function of the
NOISE GATE button. Now press the NOISE GATE button again to select
between the control options. These options are indicated in blue text
below the gate level labels. There are four possible settings:

OFF (no LEDs on):

External control is disabled in this mode

EXP:

Expression Pedal for use with the SA161 Source Audio Dual

Expression Pedal. By default, the expression pedal will control
the Morph (see the Morphing section for details). The expression
pedal can also be assigned to control an individual knob parameter.

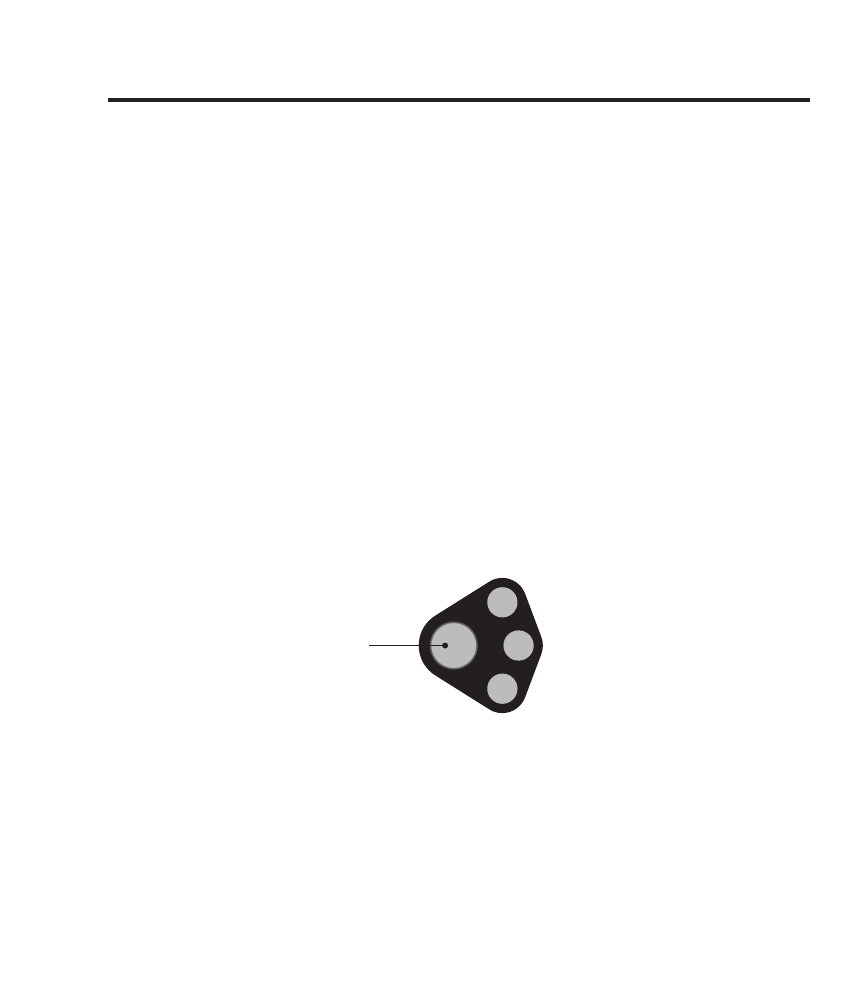

LOW

(EXP)

MED

(MIDI)

HIGH

(HH)

NOISE

GATE

Press button to
select option
