QUICK START
1. POWER
To power the unit, connect the included DC adapter power supply to
the 9V DC jack on the back panel.
Note: Using a different supply could damage the unit and void the
warranty.
2. GUITAR/AUDIO CONNECTIONS
Next, plug your guitar (or other instrument) into the jack labeled
GUITAR IN via a standard ¼" cable. Connect your amp (or other audio
device) to the GUITAR OUT jack, again with a standard ¼" cable. Both
input and output are mono signals.
3. BRIEF KNOB, FOOTSWITCH, AND BUTTON DESCRIPTIONS
(see Controls section for more details)
•
EFFECT KNOB (A):
selects the type of overdrive, fuzz, or distortion.
•
DRIVE (B):
the amount of distortion gain applied to the signal.

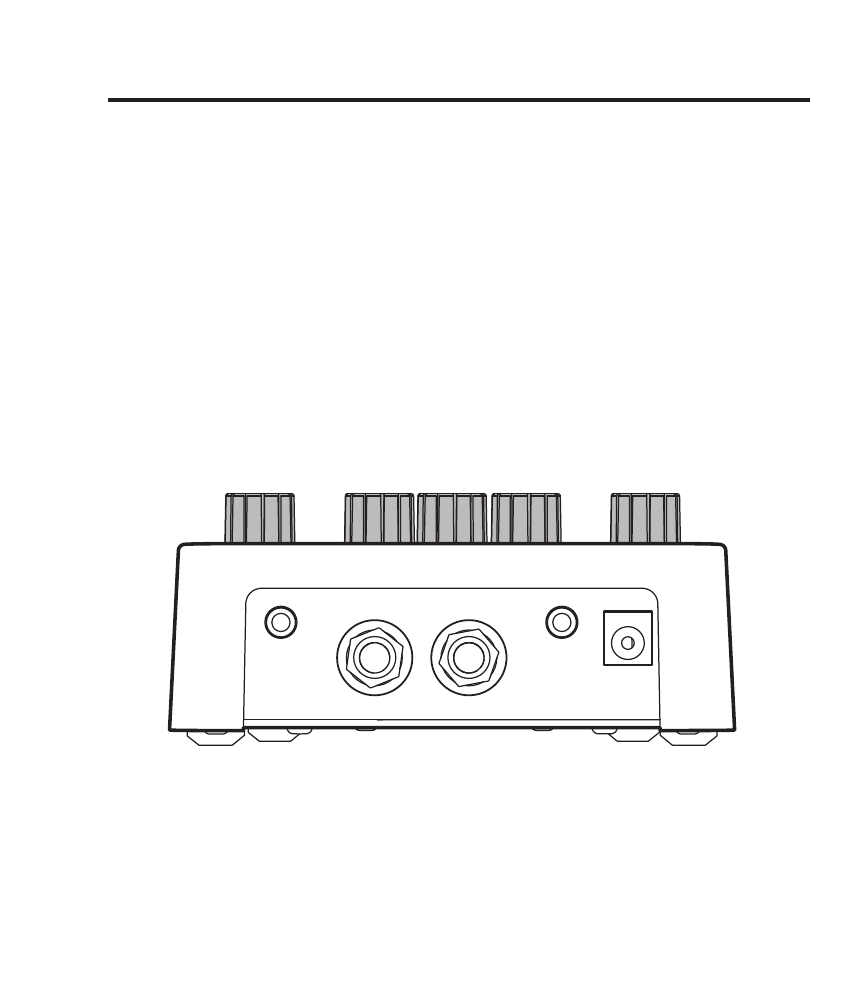

GUITAR IN
MULTI-
FUNCTION
IN
MULTI-
FUNCTION
OUT
GUITAR OUT
9V DC
