SmarTek Systems SVS-1 User Guide-Part B User Manual

Page 6

  • Text mode
  • Original mode
background image

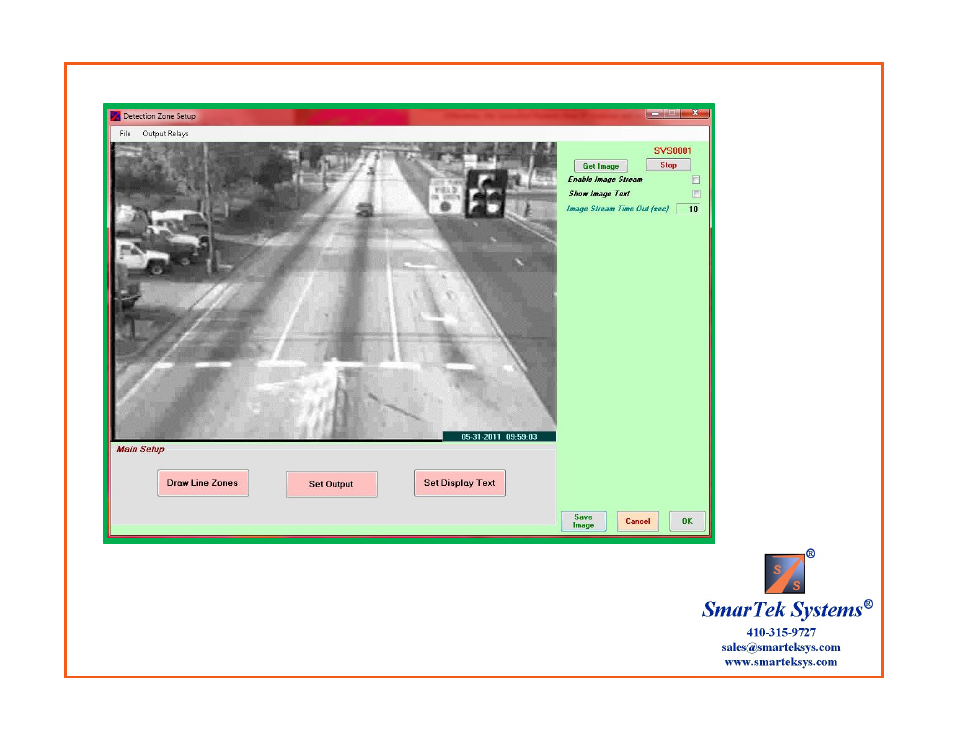

Main Setup Display

When setting up an SVS-1 camera channel for detection, the user should proceed by first
Drawing Line Zones, then Setting LZ Parameters, then Setting Detector Output, and finally
Setting the descriptive text for the Output Video Display. Click Draw Line Zones button.
