AHRI Burner
Dimensions (inches)
Capacity Oil D.O.E. Heating Boiler Front to Flue Circulator Overall Tankless
Input Capacity MBH AFUE% Length Flue Dia. Flange Length Boiler Heater
Boiler Model* GPH † BTUH Water Water Water “A” “B” “C” “D” “E” Sect GPM
TRDV-30-0.85** 0.85 119,000 103 90 87 14.875 10.062 6 1.25 27.625 3 3.0
TRDV-30-1.00 1.00 140,000 121 105 86.5 14.875 10.062 6 1.25 27.625 3 3.1
TRDV-30-1.10 1.10 154,000 132 115 86.2 14.875 10.062 6 1.25 27.625 3 3.2
2 INTREPID TRDV
Standard working pressure 30 psi water.
All boilers hydrostatically tested — A.S.M.E.
* For forced hot water heating systems where the boiler and all piping are located within
the area to be heated, the boiler may be selected on the basis of gross D.O.E. capacity
output. The net AHRI output ratings shown are based on an allowance for piping and
pickup of 1.15 (water). D.O.E. capacity gross output is divided by the allowance to obtain
net rating. The manufacturer should be consulted before selecting a boiler for unusual
piping and pickup requirements such as intermittent system operation, extensive piping,
etc.

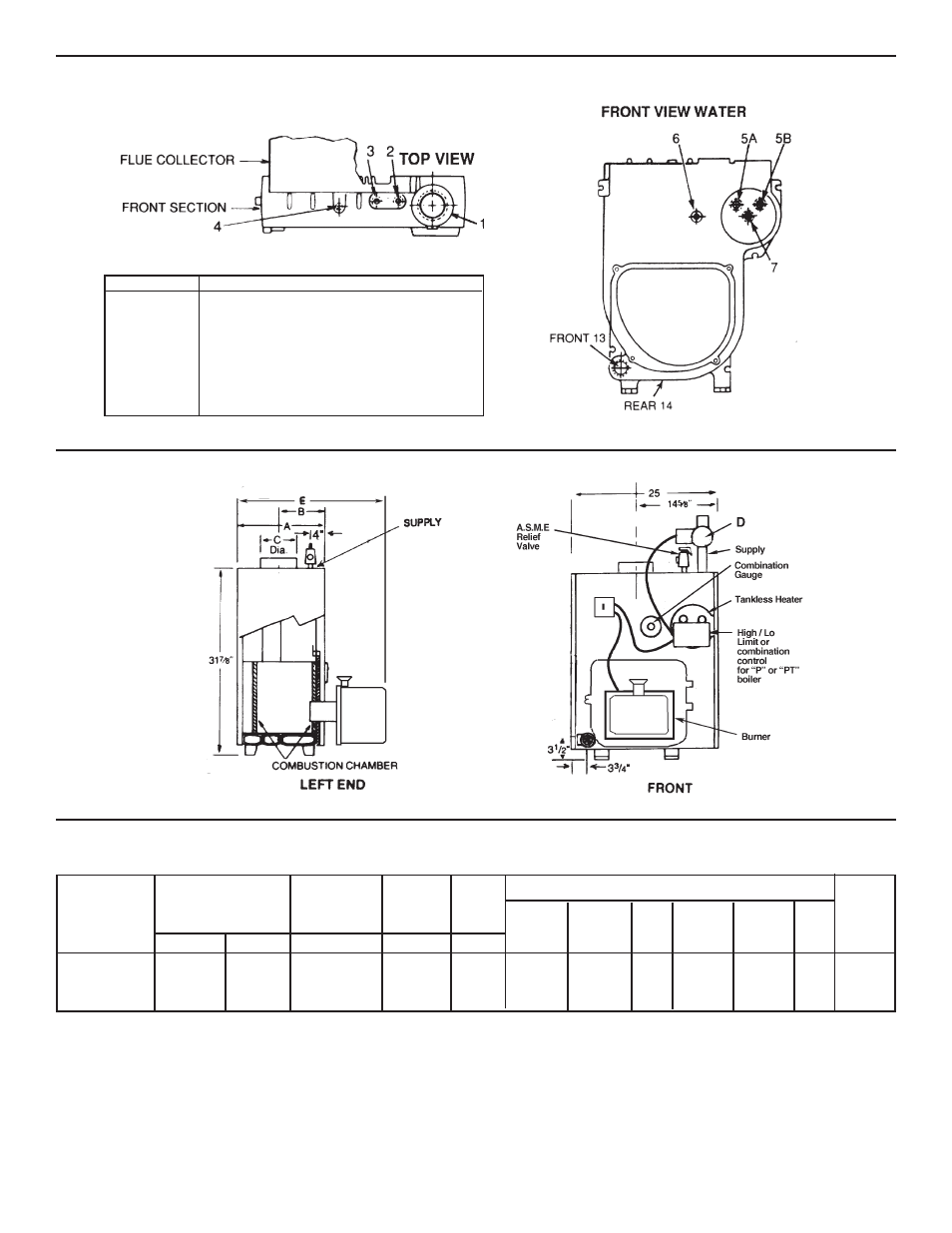

Tappings and Openings
Dimensions
Ratings
Tapping Loc. Water Boiler
1 1 1 ⁄
2
” supply
2 3 ⁄
4
” air vent or expansion tank
3 3 ⁄
4
” water relief valve
5A 1 ⁄
2
” tankless inlet
5B 1 ⁄
2
” tankless outlet
6 1 ⁄
4
” pressure temp. gauge
7 1 ⁄
2
” high limit, hi/lo or combination control
13 1 1 ⁄
2
” return & 3 ⁄
4
” drain cock
† Ratings apply to the use of light oil at 140,000 Btu per gallon.
** TRDV-30-0.85 complies with Energy Star 3.0
AHRI Net
Ratings
MBH
Figure 1
Figure 2
