Lynx Combi Boiler 32
*
"MODE" DISPLAY "TEMPERATURE" DISPLAY (3 DIGITS)
"UP" PUSH BUTTON
"DOWN" PUSH BUTTON
"ENTER" PUSH BUTTON
"SELECT" PUSH BUTTON
"RESET" PUSH BUTTON
"BURNER STATUS"
STEADY DOT = BURNER ON
BLINKING DOT = BURNER OFF

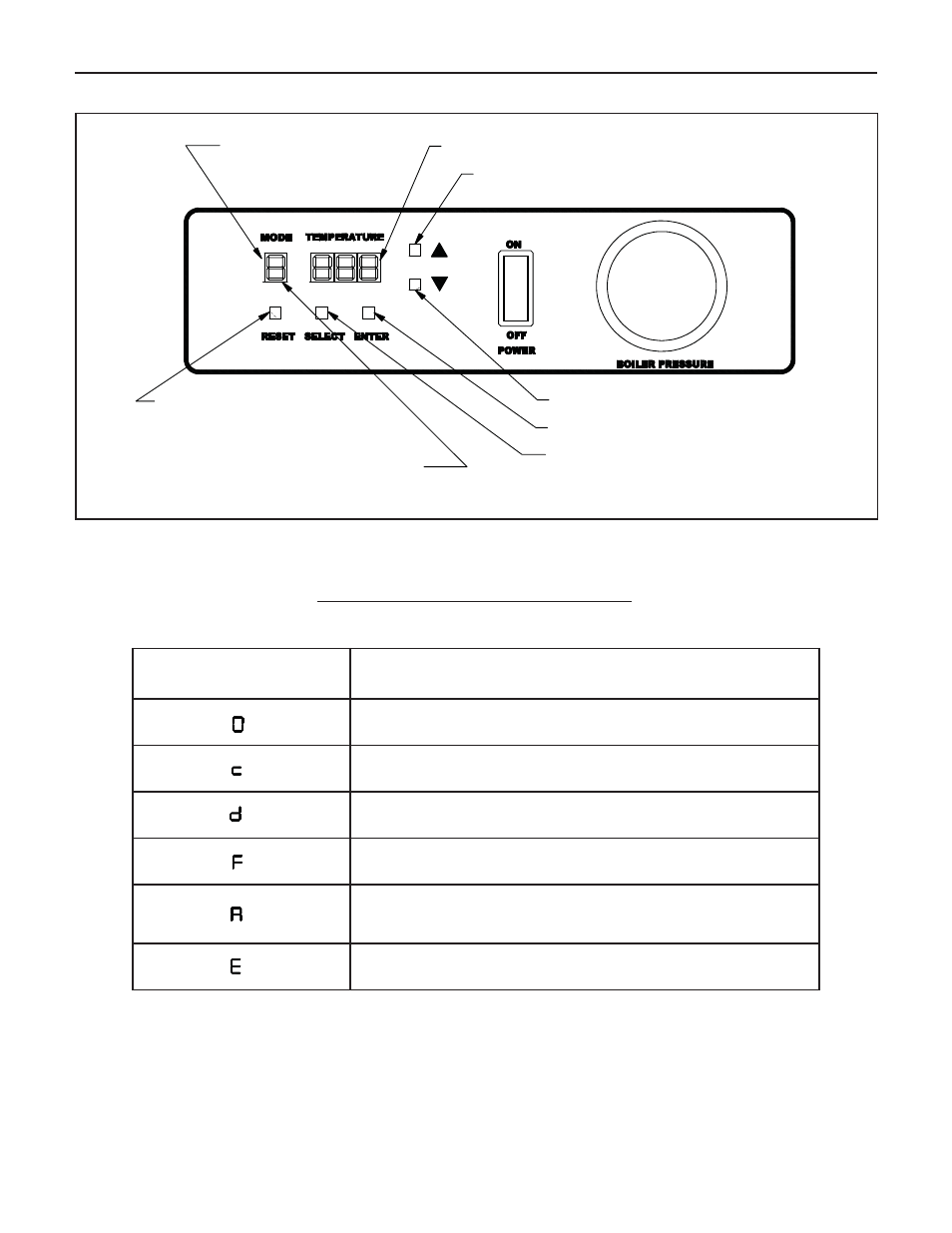

Figure 24. Display Board
MODE
DISPLAY
DESCRIPTION & TEMPERATURE DISPLAY
Boiler is on stand-by mode.
Temperature display shows boiler supply water Temp.
Space heating mode.
Temperature display shows boiler supply water Temp.
Domestic hot water mode.
Temperature display shows boiler supply water Temp.
Frost protection mode. **
Temperature display shows boiler supply water Temp.
Lockout (Alarm) condition.
Temperature Display indicates the lockout code
Reset button must be pressed to resume normal operation.
Error Condition. *
Temperature display indicates the error code.
NOTE: Blinking dot on “Mode Display” indicates active heating control, burner off.
Steady dot indicates burner is on.
*: Error must be corrected to resume boiler operation. Pressing the “Reset” button is not required.
**: The boiler loop circulator is energized, if the boiler water temperature drops below 50˚F.
Table 3
LYNX BOILER DISPLAY BOARD
“Boiler Operation Status”
