LX-120CB 6 5/8 3 3/8 2 16 1/4
LX-150CB 6 3/8 3 3/4 2 3/4 19
BOILER "A" "B" "C" "D"
MODEL
LEFT SIDE FRONT RIGHT SIDE
22 "D"
5
35
33
"C"
5
3.5
"A"
"B"
Lynx Combi Boiler 2
RATINGS AND DIMENSIONS

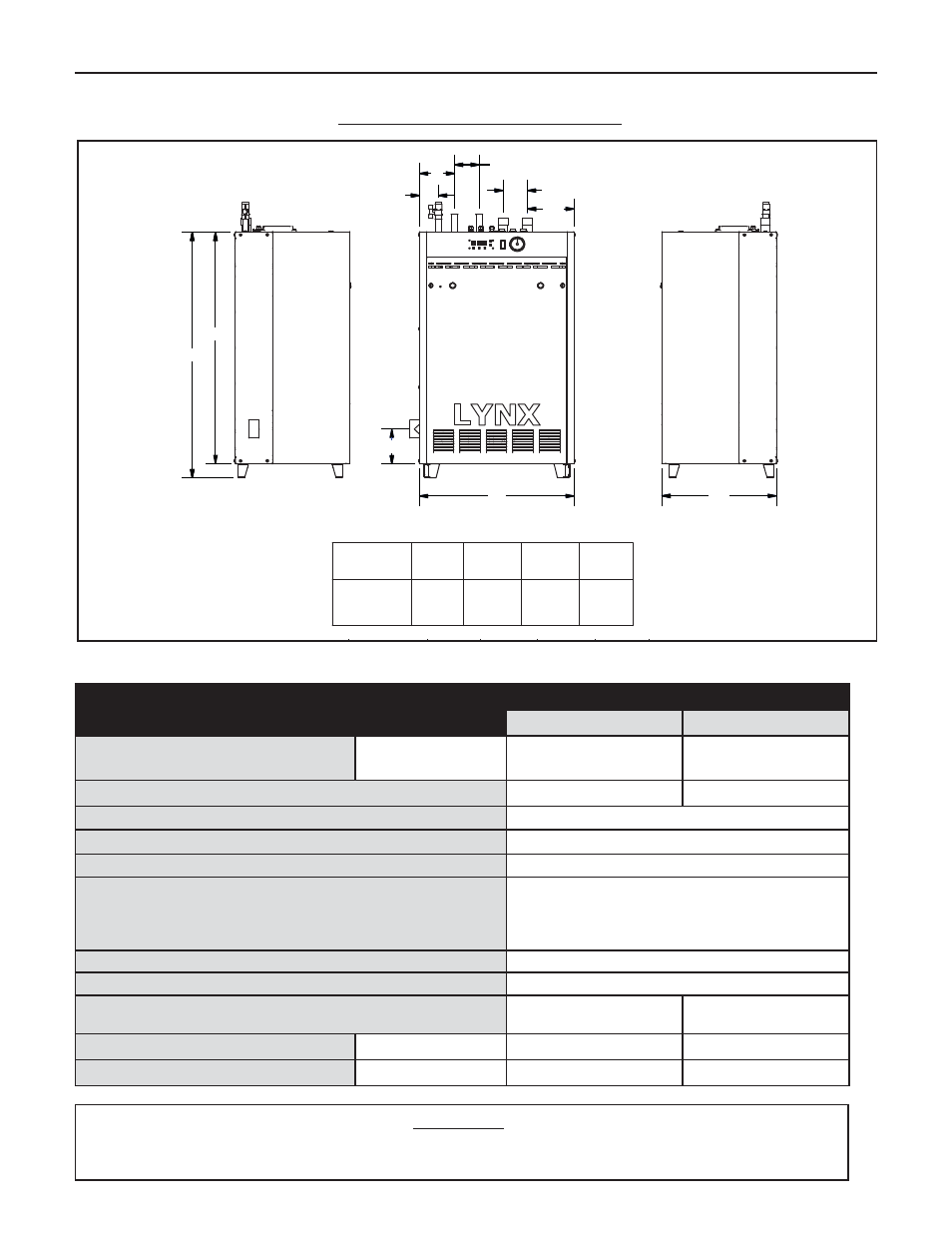

Figure 1. Dimensions data
SPECIFICATIONS
BOILER MODEL
LX-120CB LX-150CB
Input Rate, Btu/Hr
Max.
Min
120,000
30,000
150,000
37,500
DHW Flow Rate at 60˚F Temperature rise, GPM 3.5 4.5
Water Piping Connection 1" NPT (Male)
Gas Piping Connection 1/2" NPT (Female)
DHW (Cold In and Hot Out Connection) 3/4" Nom. ID Copper Tube
Vent Connection
3" Nominal ID Pipe PVC, CPVC,
Ploypropylene (solid or flexible) or SS
SEE WARNING
Air Intake Connection 3" Nominal ID PVC or CPVC
Gas Orifice Size for Natural Gas No Orifice Used
Gas Orifice Size for Propane
0.2025"
Code # A
0.2200"
Code # E
Boiler Water Volume Gal. 0.6 1.1
Weight of Boiler (Uncrated) Lbs. 147 162
LX-120CB 6 5/8 3 3/8 2 16 1/4
LX-150CB 6 3/8 3 3/4 2 3/4 19
BOILER "A" "B" "C" "D"
MODEL
WARNING:
1. Use of cellular core PVC and CPVC or Radel for venting system is NOT allowed
2. Thermal insulation on non-metallic vent pipe and fittings is NOT allowed.
