CHS Series CHS 300-399 Common Venting
│ Slant Fin Corp.
4

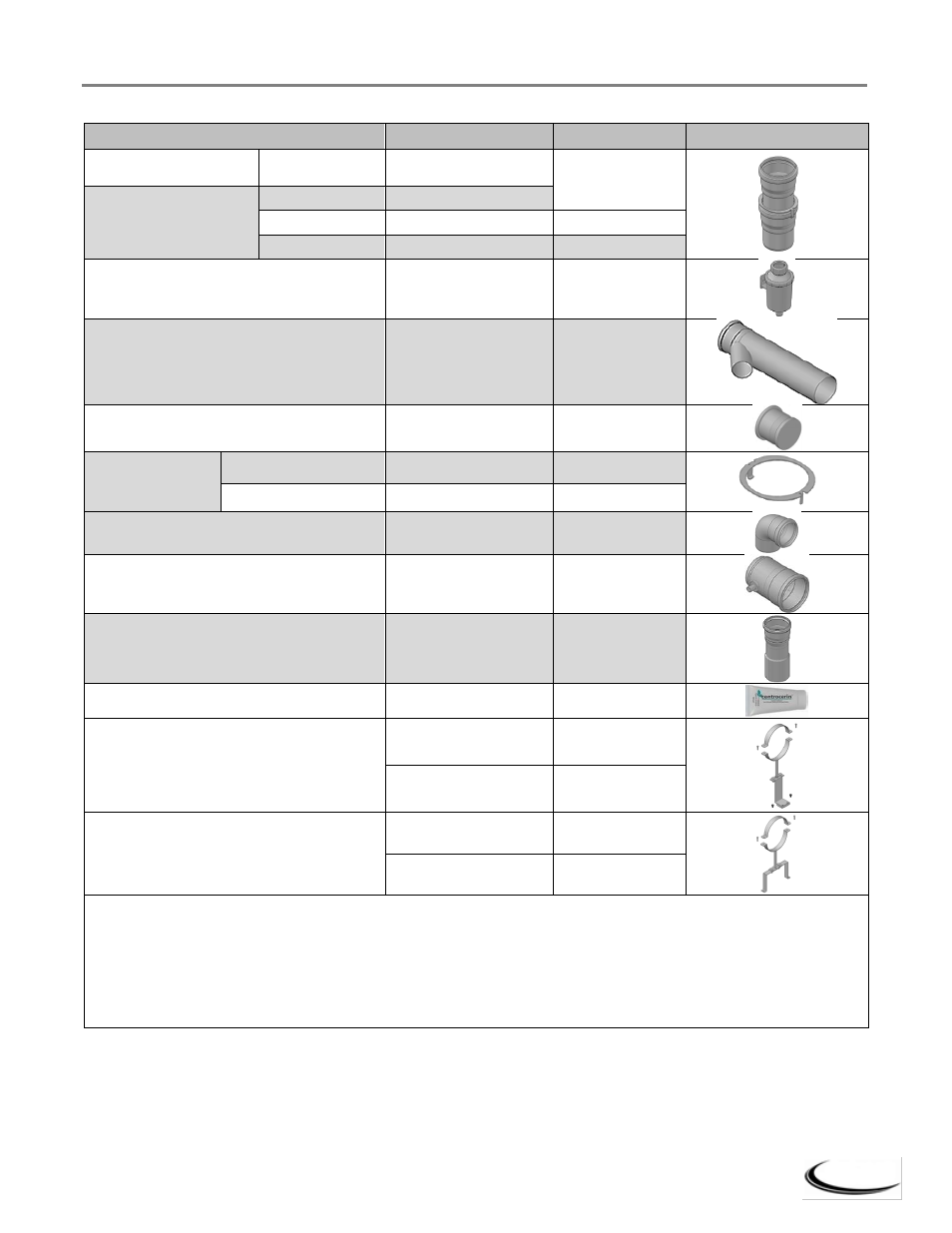

Table 2-2 Parts Included w/ CHS 300-399 Common Venting
DESCRIPTION Qty per CHS 300-399 PART No. IMAGE
Air-Inlet Appliance
Adapter 4”
(9” short) 1 / system
818 209
Exhaust Appliance
Adapter 4”
2
9.0” (short) 1 / system
9.96” (medium) 1 / system 818 210
10.93” (long) 1
1 / system
1
818 211
Siphon 1 / system 818 212
Branch 6” x 4” 3 2 818 213
Cap 6” 1 / system 818 214
Connector Rings
4” 7 818 215
6” 2 818 216
Elbow 4”
2 818 217
Horizontal Drain 6”
1 / system 818 218
Non-Return Valve 4” 1 818 219
Centrocerin (Lubricant) 1 818 208
Air-Inlet Support
4
2 x CHS 818 192 818 190
3 x CHS 818 193 818 191
Exhaust Support 5
2 x CHS 818 192 818 190
3 x CHS 818 193 818 191
Notes:
1 The “long” Exhaust Appliance Adapters are only supplied with CHS 818 193 (3-boiler) CHS 300-399 Common Venting.
2 Exhaust Appliance Adapters are supplied with specific lengths to attain the required 3/8” per foot slope.
3 Branch 6” x 4” are to be cut to size by the installer as show in Section 4.0 of this manual.
4 Air-Inlet Supports includes 2 – 1/4" x 1” Machined Screws and 2 – 1/4" x 3/4" Drill Point Screws. Part number CHS 818 192 requires
2 – Air-Inlet Supports and Part number CHS 818 193 requires 3 – Air-inlet Supports.
5 Exhaust Supports includes 2 – 1/4" x 1” Machined Screws. Part number CHS 818 192 requires 2 – Exhaust Supports and Part number
CHS 818 193 requires 3 – Exhaust Supports.
