Slant/Fin Jaguar User Manual
Page 15
Jaguar Caravan Multiple and Cascading Boilers
15

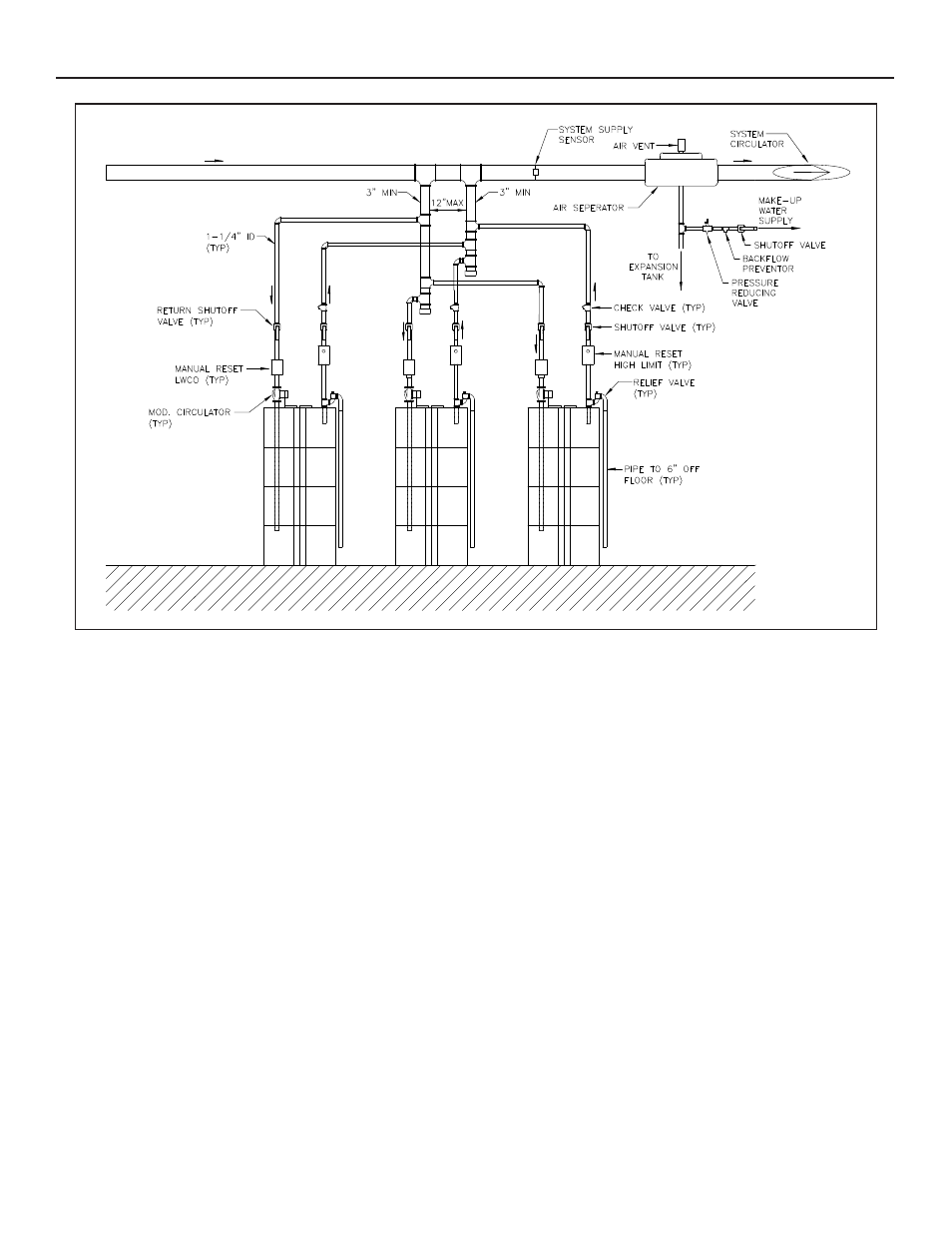

Figure 10. shows typical field piped primary loops for Jaguar Multiple boiler systems. Each Jaguar boiler shall be
installed with a manual reset Hi Limit and a Manual Reset Low Water Cutoff being located on the boiler side of any shut
off valves and check valves.
