SilentKnight SK-FIRE-CO - Manual

SK-400-011 1 I56-3945-001
SK-FIRE-CO Multi-Criteria CO
and Smoke Sensor
INSTALLATION AND MAINTENANCE INSTRUCTIONS
*For additional compatible bases, refer to the Base/Sensor Cross Reference
Chart at systemsensor.com.
BEFORE INSTALLING
This sensor must be installed in compliance with the control panel system in-
stallation manual. For local audible indication of a fire and/or carbon monox-
ide alarm, it is recommended to install the SK-FIRE-CO detector into a B200S
series sounder base. If a local audible device is not used, care should be taken
to develop a proper response plan. The installation must meet the require-
ments of the Authority Having Jurisdiction (AHJ). Sensors offer maximum
performance when installed in compliance with the National Fire Protection
Association (NFPA); see NFPA 72 and NFPA 720. For a complete list of compat-
ible bases, refer to the Base/Sensor Cross Reference Chart at systemsensor.com.
GENERAL DESCRIPTION
Model SK-FIRE-CO is a plug-in type smoke sensor that is a photoelectronic
sensing chamber combined with carbon monoxide (CO), thermal and infra-red
(IR) sensors as well as a carbon monoxide detector both with addressable-an-
alog communications. The sensors transmit an analog representation of smoke
and/or carbon monoxide density over a communication line to a control panel.
Rotary-decade switches are provided for setting the sensor’s address.
Two LEDs on the sensor are controlled by the panel to indicate sensor status.
An output is provided for connection to an optional remote LED annunciator
(P/N RA400Z /RA100Z).
The SK-FIRE-CO requires compatible addressable communications to func-
tion properly. Connect these sensors to listed-compatible control panels only.
SPACING
Silent Knight recommends spacing sensors in compliance with NFPA 72. In
low air flow applications with smooth ceilings, space sensors 30 feet apart.
For specific information regarding sensor spacing, placement, and special ap-
plications, refer to NFPA 72 or the System Smoke Detector Application Guide,
available from Silent Knight.
TAMPER-RESISTANCE
Model SK-FIRE-CO includes a tamper-resistant capability that prevents re-
moval from the bracket without the use of a tool. Refer to the base manual for
details on making use of this capability.
WIRING GUIDE
All wiring must be installed in compliance with the National Electrical Code,
applicable local codes, and any special requirements of the Authority Having
Jurisdiction. Proper wire gauges should be used. The installation wires should
be color-coded to limit wiring mistakes and ease system troubleshooting. Im-
proper connections will prevent a system from responding properly in the
event of a fire.
Remove power from the communication line before installing sensors.
1. Wire the sensor base (supplied separately) per the wiring diagram, see
Figure 1.
2. Set the desired address on the sensor address switches, see Figure 2.
3. Install the sensor into the sensor base. Push the sensor into the base
while turning it clockwise to secure it in place.
SPECIFICATIONS
Operating Voltage Range:
15 to 32 VDC
Standby Current: 300µA @ 24 VDC (one communication every 5 sec. with LED blink enabled)
Max. Alarm Current (LED on:) 7 mA @ 24 VDC
Operating Humidity Range: 15% to 90% Relative Humidity, Non-condensing
Operating Temperature Range: 0°C to 38°C (32°F to 100°F)
Height: 2.7˝ (69 mm) installed in B200S Base*
Diameter: 6.875˝ (175 mm) installed in B200S Base*
Weight: 4.6 oz. (130 g)
SMOKE SENSOR TESTING
Before testing, notify the proper authorities that the system is undergoing
maintenance, and will temporarily be out of service. Disable the system to
prevent unwanted alarms.
All sensors must be tested after installation and periodically thereafter. Testing
methods must satisfy the Authority Having Jurisdiction (AHJ). Sensors offer max-
imum performance when tested and maintained in compliance with NFPA 72.
The sensor can be tested in the following ways:
A. Functional: Magnet Test (P/N M02-04-01 or M02-09-00)
This sensor can be functionally tested with a test magnet. The test mag-
net electronically simulates smoke in the sensing chamber, testing the
sensor electronics and connections to the control panel.
1. Hold the test magnet in the magnet test area as shown in Figure 3.
2. The sensor should alarm the panel.
Two LEDs on the sensor are controlled by the panel to indicate sensor
status. Coded signals, transmitted from the panel, can cause the LEDs
to blink, latch on, or latch off. Refer to the control panel technical docu-
mentation for sensor LED status operation and expected delay to alarm.
I56-3945-00
1
(+) COMM.
(–) COMM.
(–) POWER
(+) POWER
U.L. LISTED COM
PA
TIBLE
CONTROL
P
ANEL
EXTERNAL 24V SUPPL
Y
OPTIONAL REMOTE ANNUNCIATOR
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6

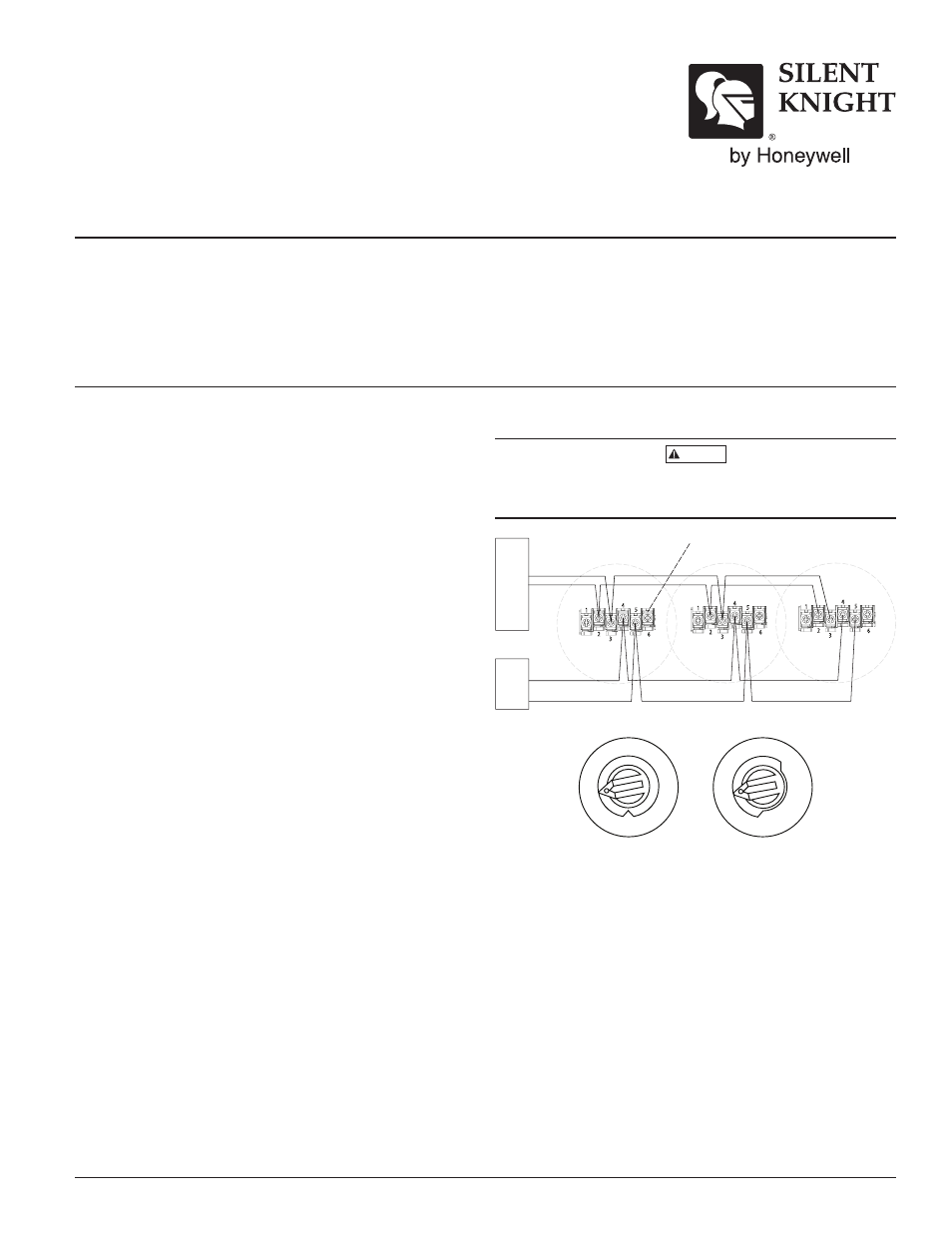

FIGURE 1. WIRING DIAGRAM:
C0474-02
FIGURE 2. ROTARY DECADE ADDRESS SWITCHES:
TENS ONES
9
10
11
12
13
14
15
8 7
6
5
4
3
2
1 0
9
8 7
6
5
4
3
2
1 0
C0162-00
CAUTION
Dust covers provide limited protection against airborne dust particles during
shipping. Dust covers must be removed before the sensors can sense smoke or
carbon monoxide. Remove sensors prior to heavy remodeling or construction.
12 Clintonville Road, Northford, CT 06472
203.484.7161; Fax: 203.484.7118
www.silentknight.com
4. After all sensors have been installed, apply power to the control unit and
activate the communication line.
5. Test the sensor(s) as described in the TESTING section of this manual.
