SK-F485C Fiber to SBUS Converter Installation Instructions
3
PN LS10004-001SK-E Rev A
Panel to Power Supply Fiber
Connection

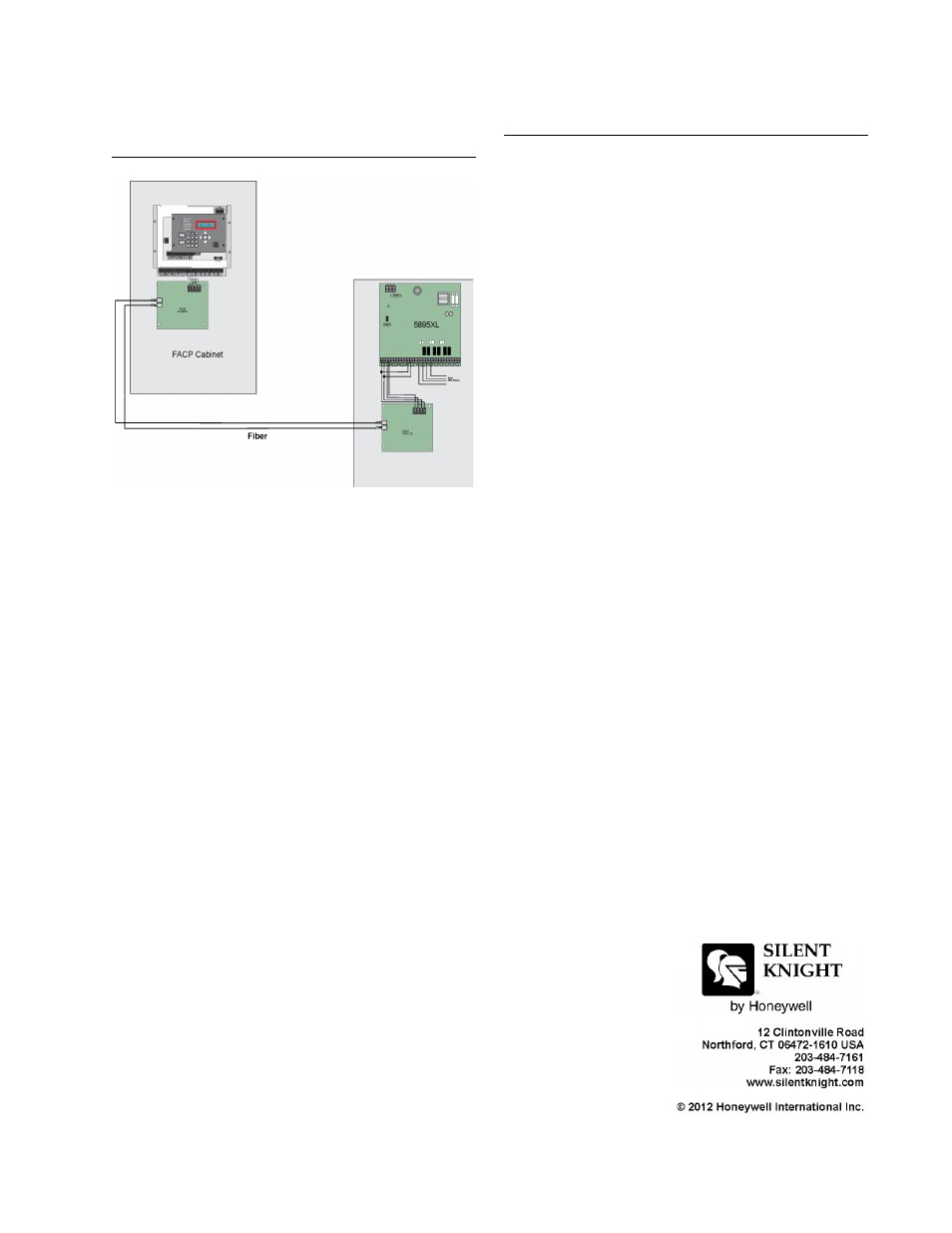

Figure 6: Connecting fiber from panel to power supply
Specifications
•
External Power Supply: 9-35VDC @ 125
mA max
•
Fiber Connection Duplex ST connectors
for Tx and Rx Data Fiber Cable Duplex
62.5 micron Multimode Fiber Data Rate
115.2K bits/second
•
Fiber Distance Up to 1.0 Mile (1.6Km)
SK-F485C Connection (two-wire) or Ter-
minal strip, and jumper selectable bias /
termination
Note: There are several jumpers on the board. These jumpers
need to remain in place.
•
Maximum attenuation 5.5db
•
SK-F485C Cable, single twisted pair,
24AWG, Helix 21011.
•
SK-F485C Data Direction Control Auto-
matic half duplex transmitter enable con-
trol, for any baud rate / data bits
•
Operating Temp: 32° - 120°F (0-49°C)
•
Humidity: 10%-93% (non-condensing)
•
Dimensions: 4.75” x 4.25” x 1.0”
