Installing the sd500-lk – SilentKnight SD500-PS Addressable Pull Station User Manual
Page 2
SD500-PS/SD500-PSDA Addressable Fire Pull Station Installation Instruction
2
7550 Meridian Circle
Maple Grove, MN 55369-4927
763-493-6455 or 800-328-0103
Fax: 763-493-6475
www.silentknight.com
© 2006 Silent Knight PN 151177 Rev D

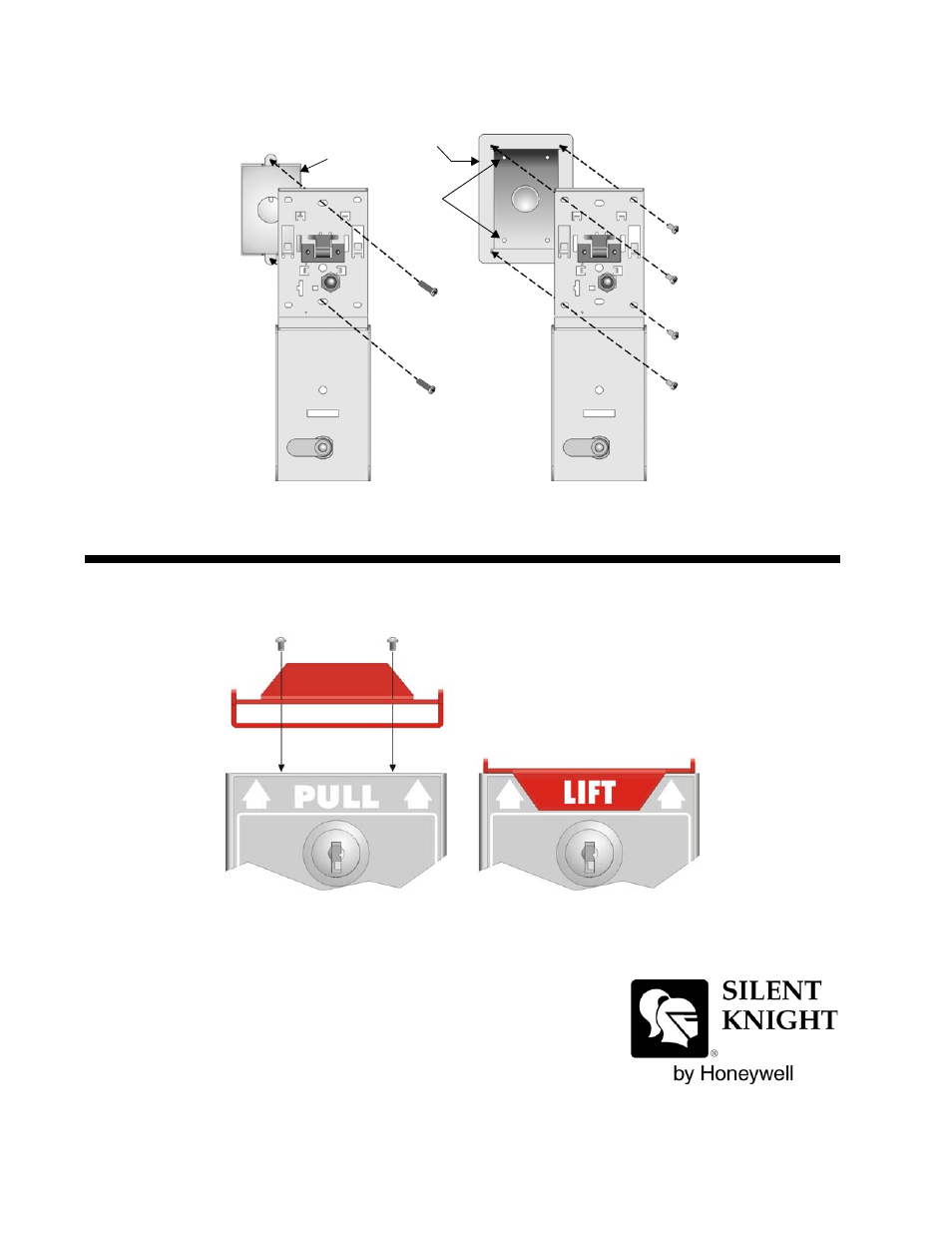

Figure 2: Mounting the Fire Pull Station
Installing The SD500-LK
The SD500-LK is used to convert the SD500-PS (single action pull station) to a SD500-PSDA (Dual
action pull station. Refer to Figure 3 to install the SD500-LK Dual Action Conversion Kit.
Figure 3: SD500-LK Installation
PS-SMBB
Mounting
Holes
Single Gang
Electrical
Switch Box
To meet ADA requirements the
access and no more than 54" from
pull station must be mounted 48"
from the floor for wheelchair forward
the floor for wheelchair side access
