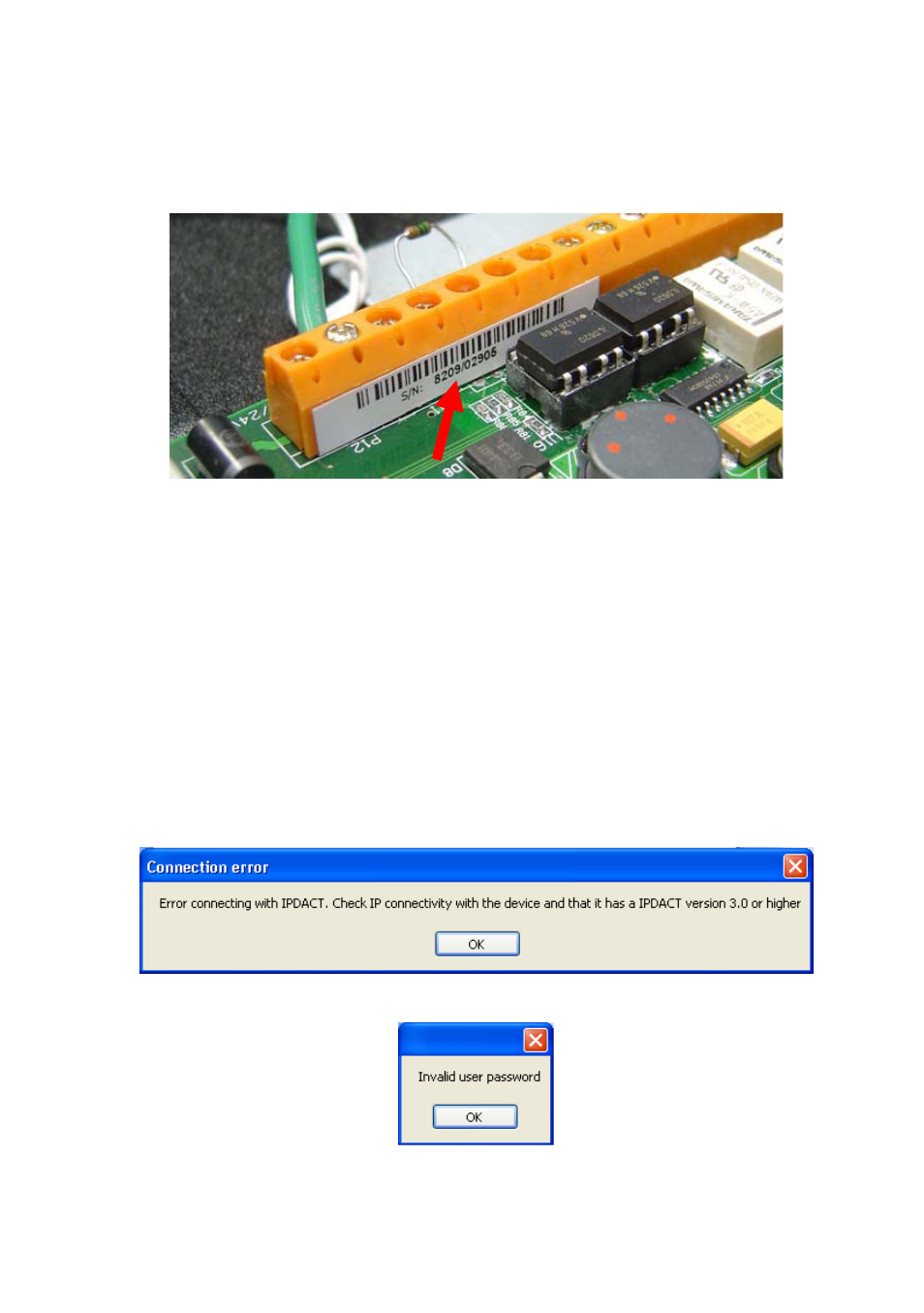

If there is more than one device in the LAN you must locate the device through its
Serial Number. The Serial Number appears on a sticker attached to the terminal strip
of the device (see Fig. 7)
Fig. 7
Then select the IPDACT from the list and click on the “Select” button. The selected
device’s IP address will be put in the “IPDACT connection” box.
STEP 4
If the IPDACT password is the factory default password (24680) you can click on the
“Connect” button to connect with the device. In any other case, enter the device
password in the “User Password” box and click on “Connect”.
If the connection is successful, the “Quick Install” screen appears. Contrariwise, an
error message appears indicting the problem. Two situations could arise:
• The IPDACT IP address is incorrect or the IPDACT release is not compatible
with the application.
Fig. 8
• The user password is invalid:
Fig. 9
Dm378-Iv3 7
