FFT-STSS and FFT-STSR Single Telephone Station Installation Instructions
2 54420 Rev A

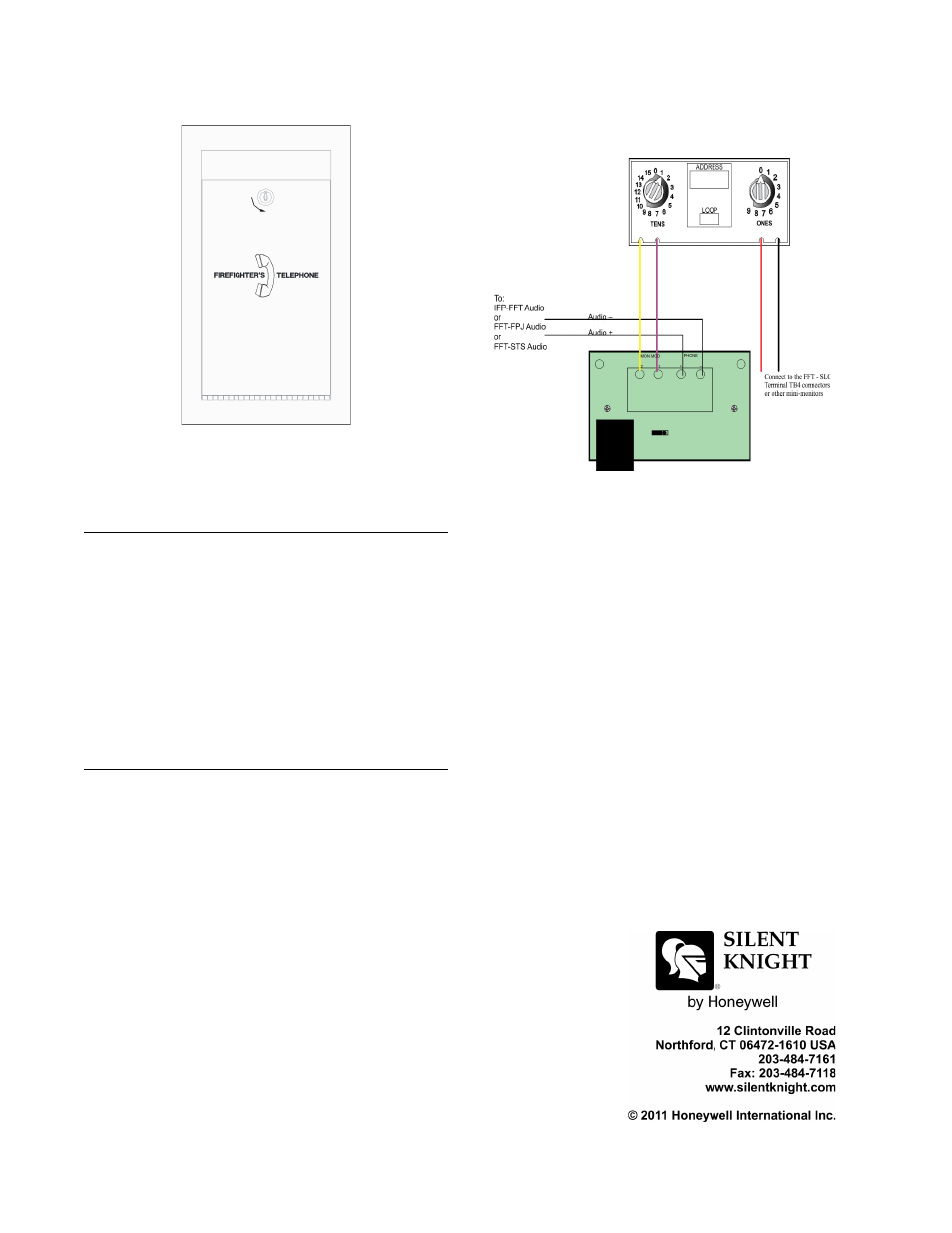

Figure 5: FFT-STSS Surface mount door
with Keylock
System Wiring
Max. riser wiring resistance is 50 ohms,
10,000 ft. (3048 m) max. wiring distance at
14AWG.
System wiring for telephones with coiled
cord handsets must not be connected to
outside wiring or run the same conduit or
cable tray as power or cable TV lines.
Assembly of Units with Coiled
Cord Handsets
The following assembly steps are for
telephones with coiled cord handsets. These
steps must be accomplished once the
enclosure has been mounted and the system
wiring is in place
1. Attach system wiring to the terminal block
on the telephone chassis assembly
2.Install 6-32 nut in backbox. Do not tighten.
3.Install telephone chassis assembly in
backbox.
4.Install trim ring on backbox with 6-32
wing nuts. Do not tighten.
5. Install door assembly. Tighten wing nuts.
Figure 6: FFT-STS Telephone Connection
