5815XL SLC Expander Installation Instructions
2 151403 Rev B

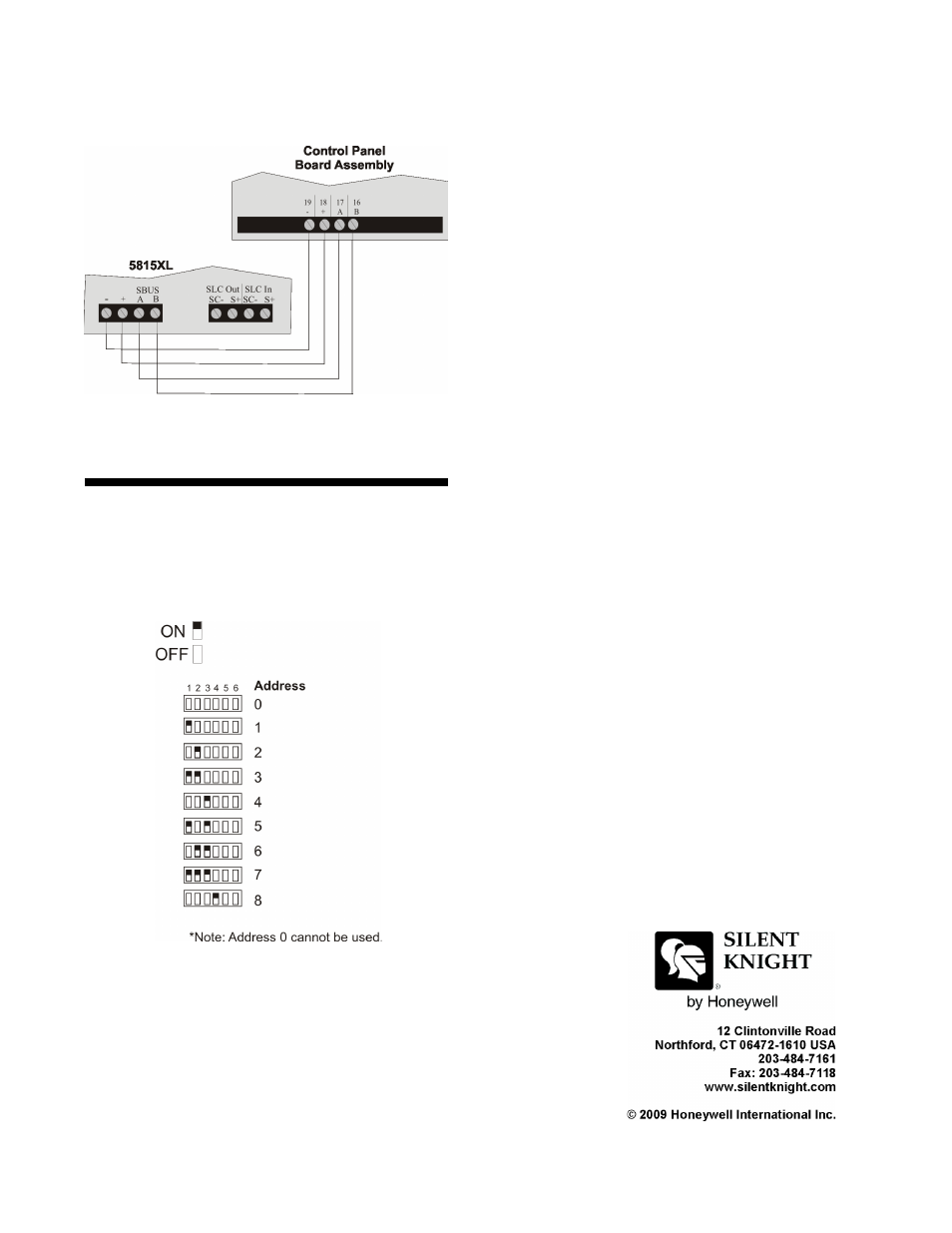

Figure 2. 5815XL Connection to the Control Panel
Setting DIP Switches
Use the onboard DIP switches to select an ID
number for the 5815. Refer to Figure 3 to see
how to set the DIP switches for the desired ID
number.
Figure 3. Set DIP Switches on the 5815XL
Once the ID number is set, you must add the
5815XL to the system through programming
using JumpStart or by adding it manually.
