SK-5235 Remote Annunciator Installation Instructions
2
7550 Meridian Circle
Maple Grove, MN 55369-4927
763-493-6455 or 800-328-0103
Fax: 763-493-6475
www.silentknight.com
© 2006 Silent Knight PN 151237 Rev B
Setting ID Codes
Before installing SK-5235, you must set its
identification (ID) code. Each SK-5235 must be
given a unique ID code. Upon initial power up,
the address of each SK-5235 is displayed on the
LCD.
Annunciators with address 0 will not be
supervised.
On the back of each device is a small 4-position
dip switch used to set the ID code. Use the chart
below to determine the dip switch positions for
each possible ID code.
Using the Operator’s Key
An operator’s key ships with SK-5235 (see
Figure 3). The operator’s key can be used to
perform user operations at the control panel or
SK-5235 without a user code but will not open
the control panel door. All installer operations
require an installer code. To perform user
operations without a user code, insert and turn
the key as shown in Figure 3.

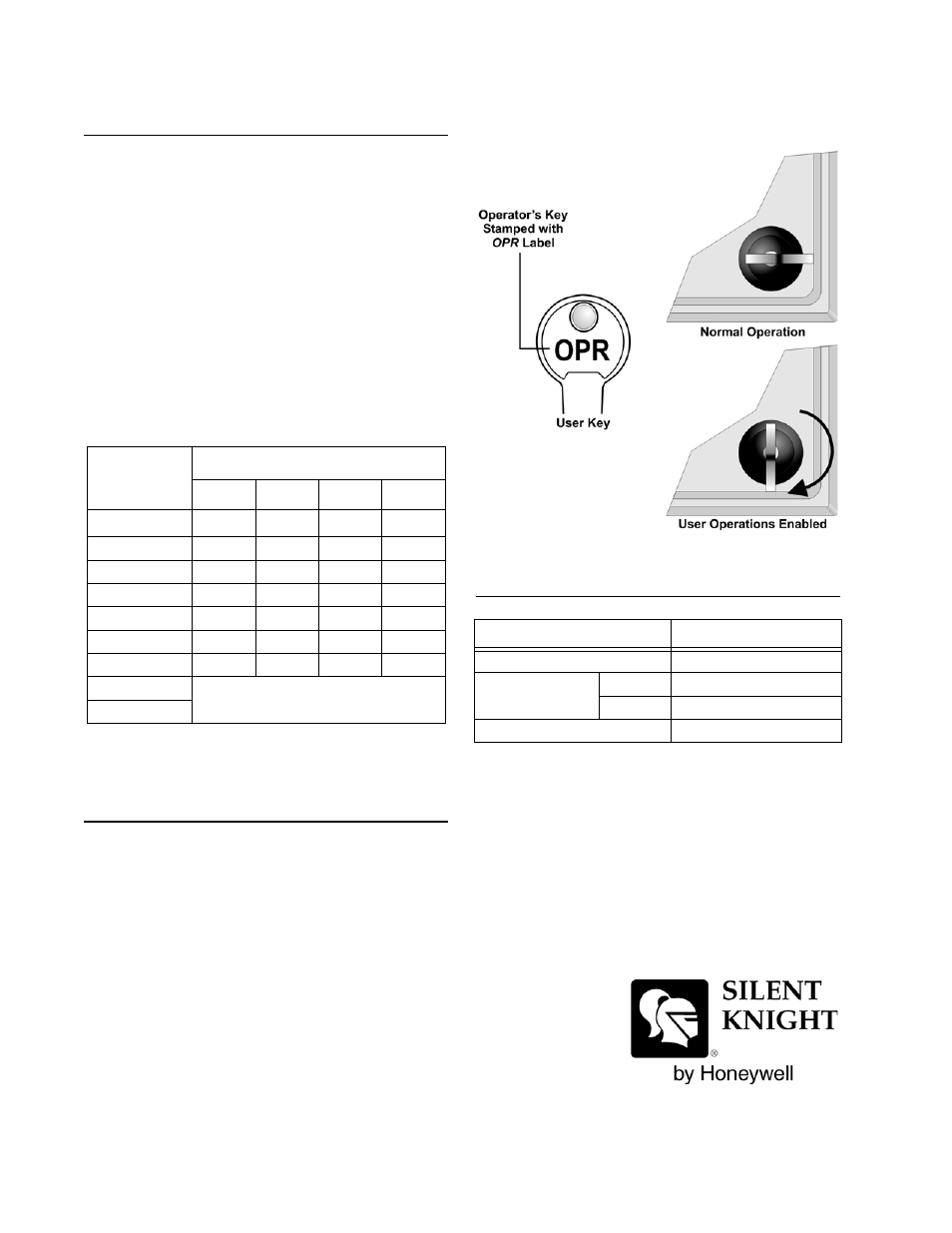

Figure 3. Operator’s Key & Key Operation
Specifications
Table 1: ID Dip Switch Settings
ID Code
Switches 1
1 2 3 4
0
2 Down Down Down Down
1 Up Down Down Down
2 Down Up Down Down
3 Up Up Down Down
4 Down Down Up Down
5 Up Down Up Down
6 Down Up Up Down
7
Do not use. Not valid ID codes. 3
8
1. Switch settings: Up = On Down = Off
2. Not supervised.
3. ID numbers 7 & 8 are not valid ID settings for SK-5235.
Parameter Rating
Operating Voltage 27.4 VDC max.
Current Draw: Standby 30 mA
Alarm 50 mA
Operating Temperature 32° to 120° F (0° to 49° C)
